Help CenterWide Mouth Bucket Filling Machine
Related Products
Wide barrel lubricating oil, fertilizer, urea solution filling machine
1. Product Introduction:

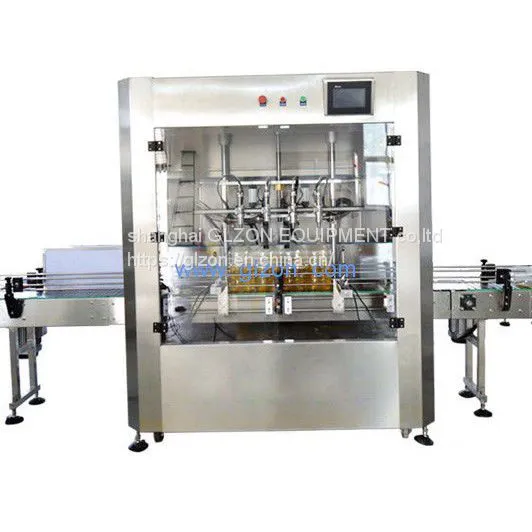

Wide mouth barrel filling machine is suitable for filling the weight of 10kg-30kg fluid. It can automatically complete a series of operations, such as counting into bottles, filling by weight and conveying out bottles. It is especially suitable for the quantitative filling of water agent and paste. It is the ideal packing machine for food, medicine, cosmetics and fine chemical industry. This machine uses programmable logic controller (PLC), high speed industrial control configuration software for real-time monitoring control, easy to use and adjust. The whole machine IS made according to GMP standard requirements. All pipelines are connected by quick assembling method, convenient disassembly and cleaning, and the contact parts and exposed parts are made of high quality stainless steel. The machine safety, environmental protection, safety, beautiful, can adapt to a variety of different environment work.
2. Technical parameters:
1. Overall dimension: 2200 (length) ×1350mm (width) ×1820mm (height)
2. Filling head: 2
3. Applicable bottle type: customized according to bottle type
4. Barrel mouth diameter: customized
5. Packing specifications: 5-30L
6. Production capacity :250 b/h (based on 20 l);
7. Measurement error: ±0.1%
8. Equipped with power supply: 220V; 50Hz
9. Host power: 3KW
10. Equipped with air source: 0.55MPA-0.65mpa clean and stable air source
Liquid filling machine, dry mortar packing machine, automatic filling equipment, ton bag packing machine
3. Principle and characteristics:
1. Weighing instrument is a special controller for quantitative packing scale, with fast reaction speed, high precision and complete functions.
