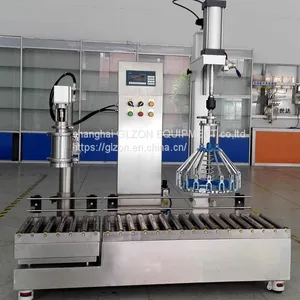

Help Center50 l Lacquer Filling Machine
Related Products
-
Large Drum Small Drum Double Gland Filling MachineNegotiableMOQ: 10 Bags -
Double Station Automatic Filling MachineNegotiableMOQ: 10 Bags
-
Double Touch Screen Automatic Filling MachineNegotiableMOQ: 10 Bags
-
Automatic Exhaust Gland Filling MachineNegotiableMOQ: 10 Bags
-
18 Liter Paint Filling MachineNegotiableMOQ: 10 Bags
First, the introduction of lacquer filling machine:

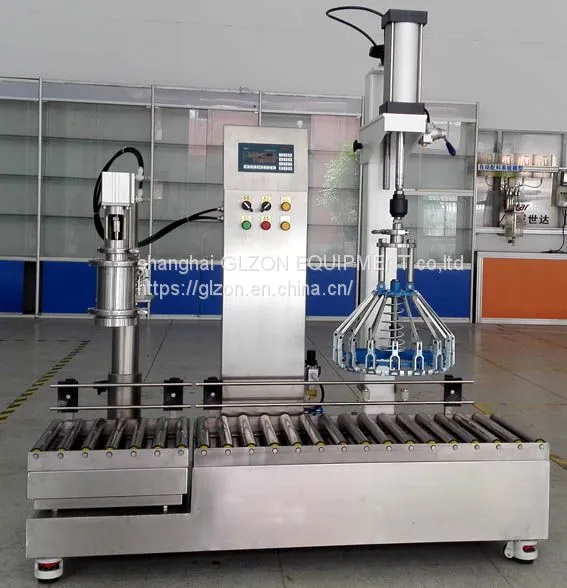

Stone paint filling machine is also known as semi-automatic liquid filling machine, mainly composed of weighing filling system, frame, stainless steel roller, gland system, pneumatic control, electrical control and other systems, so as to achieve manual bucket - automatic filling - manual capping - automatic capping - finished product storage.
Two, the scope of application of lacquer filling machine
It is mainly used for the quantitative automatic filling of thick liquid such as stone paint, latex paint, rock chip paint, mortar, putty, etc. It is also suitable for the automatic filling of liquid materials in food, pharmaceutical, chemical and other industries. Example: lubricating oil, edible oil, alcohol, disinfectant, ink, chemical pigments, coatings, etc.
Three, the characteristics of lacquer filling machine:
1. This system adopts the weighing-type filling machine produced by foreign advanced technology, which has high measuring accuracy and is not affected by materials.
2. The feeding valve composed of fast and slow feeding can not only improve the filling speed but also improve the filling accuracy.
3 Large measuring range, can be arbitrarily adjusted within 10-100kg.
4. The filling head adopts anti-drip device, the real stone paint and latex paint can be filled without bubbles, and the opening effect is good.
5 Automatic control of material feeding, equipped with pneumatic clamp cover and pneumatic pressure plate device, filling volume can store 10 kinds of formula, easy to switch.
Four, the working principle of lacquer filling machine:
Feeding mode: continuous and stable feeding is required (the feeding pump or hopper is used for pressurized feeding)
Feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.
Filling method: ordinary conventional filling and lifting and diving filling (according to the need to choose when ordering)
The weighing system is controlled by weighing bracket, sensor, weighing platform, unpowered roller, frame support and filling system.
Pneumatic control system: control fast and slow feed valves.
The height of the filling nozzle can be adjusted by the top hand wheel.
