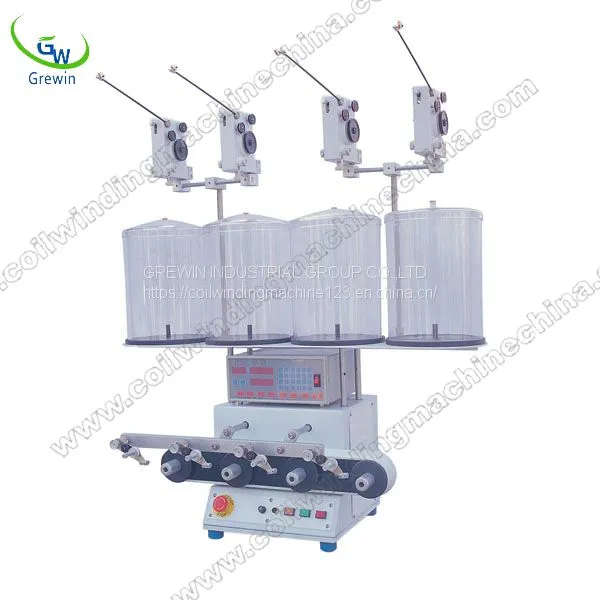

GW-9764 Multi Spindle Coil Winding Machine

SPECIFICATION:

FEATURES:

Input the ‘Start Point’parameter by number key or teachable function ,and display the position of spreading head on the panel

The wire of Multi Spindle Coil Winding Machine runs though the nozzle of spreading head to arrange in order better

The ceramic rollers of Multi Spindle Coil Winding Machine prevent enamel from high temperature

Multi Spindle Coil Winding Machine for highest efficiency

More convenience by using foot-switch

ADVANTAGES:

Multi Spindle Coil Winding Machine adopts guide needle type wire arrangement head, wire arrangement is neat and accurate.

The wire guide wheel is made of ceramic guide wheel, which is resistant to high temperature and does not harm the enameled wire.

Front multi-axis synchronous winding, high production efficiency.

The winding point, width, line distance and speed can be set in sections to achieve the purpose of multi-section and multi-speed.

The spool of parallel winding machine is driven by a stepping motor with constant current circuit, which has high speed and precision.

APPLICATION:

High Speed Automatic Coil Winding Machines are used for winding the small EI transformers, signal transformers, inductors, filter choke coil, relays, current contactors, valve coils, solenoid coils, telecom bobbin transformers. It can complete the coils without any one operator in fully automatically.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Multi Spindle Coil Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Multi Spindle Coil Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Multi Spindle Coil Winding Machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the  outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
