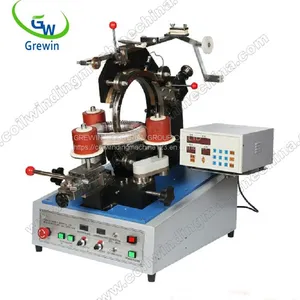

Help CenterGWM-0119 Toroid Digital Transformer Winding Machine
Related Products
-
GWM-0719 Toroidal Transformer Winding MachineUS$ 2000 - 2500MOQ: 1 Piece -
GW-9720 Automatic Motor Winding MachineUS$ 500 - 800MOQ: 1 Piece
-
GW-9740 Manual Winding MachineUS$ 500 - 800MOQ: 1 Piece
-
GW-9751i CNC Coil WinderUS$ 1000 - 1200MOQ: 1 Piece
-
AESGW22-8 Eight Spindle Motor Coil Winding MachineUS$ 3000 - 5000MOQ: 1 Piece
SPECIFICATION:
Wire diameter |
0.70—2.50 |
ding speed |
200rpm |
Max.final coil.O.D |
φ60—200 |
Wire spacing |
Proportional linkage |
Min.final coil.I.D |
φ40 |
Supply voltage |
AC 220V（50Hz） |
Max.finalcoil height |
100 |
Mechanical dimensions |
550×500×780 |
Controller storage capacity Programs |
29 set |
Wight |
94kg |
FEATURES：
GWM-0119 Toroid Digital Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.
One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes widing shuttles are optional.
The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change ,maximzing output.
Accurately wire and tape spacing by adjustable.
Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
Extremely powerful,maintenance free AC motors for main drive and core rotation.
ADVANTAGE:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
Easy to operate, High learnability
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
