15kw Medium Frequency Induction Coil for Heating
SMJRZ-Series
Major features:
1. |
The Power Unit is based on IGBT, imported from Germany; |
2. |
High power factor, and energy efficient; |
3. |
Heating duty running, 24 hours 100% full loading; |
4. |
Easier and more safe operation comparing with the traditional oil/gas heaters; |
5. |
Timing function applied for heating duration setting, adjustable (0.1s-99.9s) |
Product techniacl parameters:
Model Number |
SMJRZ-Series |
Max. Input power |
Max. 15~160kW Max. Input current 24~240A |
Input voltage |
Three-phase 340~420V, 50/60HZ |
Oscillation frequency |
1~20kHz |
Request of cooling water |
Pressure≥ 0.2~0.3Mpa, Flow rate≥ 6~20L/min |
Temperature of cooling water |
Water Temperature≤ 45º C |
Usage: induction heaters, for metal workpieces heating for forging, quenching, etc.
Pictures Reference:

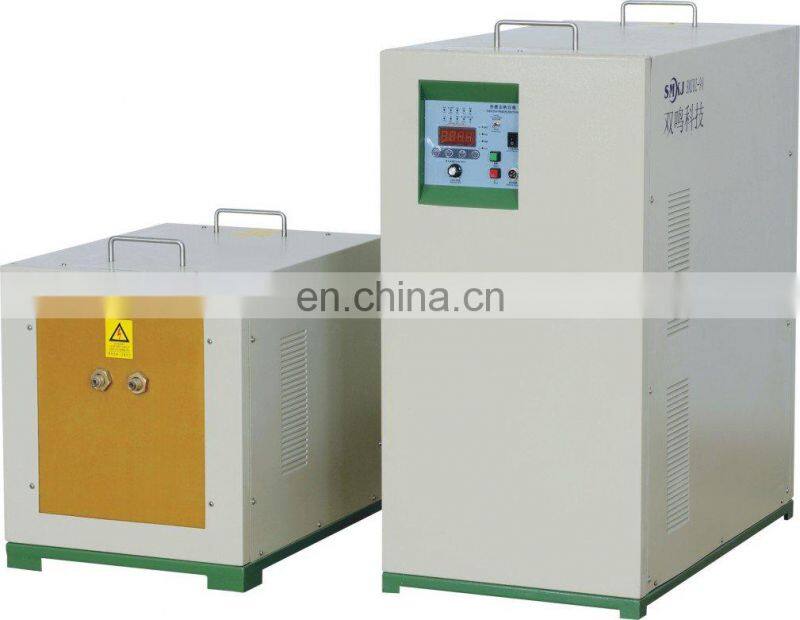

Main Machines:
Induction Coils:

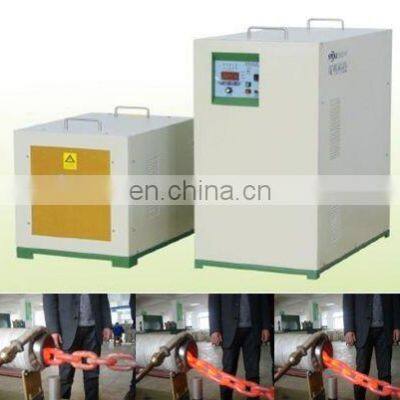

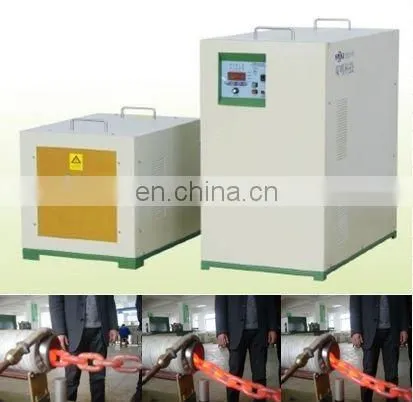

Application Reference:
General Applications:
Packing Reference:
