Factory Price 1kg 2kg 3kg 4kg 5kg 6kg 7kg 8kg 9kg 10kg Induction Melting Furnace for Gold/copper/silver
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2008
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CDOCAST Small Capacity Precious Metal Melting Furnace for Gold Silver Copper Platinum SmeltingNegotiableMOQ: 1 -
IGBT Hot Sale Induction Heating Precious Metal Gold Silver Copper Platinum Alloy Melting MachineNegotiableMOQ: 1
-
Customized 1-15kg Quartz Crucible Aluminum Platinum Smelting MachineNegotiableMOQ: 1
-
IGBT Integrated Design Induction Heating Platinum Melting MachineNegotiableMOQ: 1
-
Laboratory Small Capacity High Temperature Precious Metal Melting Oven for Platinum PalladiumNegotiableMOQ: 1
Products Description
Factory price 1kg 2kg 3kg 4kg 5kg 6kg 7kg 8kg 9kg 10kg induction melting furnace for gold/copper/silver
CDOCAST can provide high-end induction smelting furnaces for all precious metals.Temperatures up to 1600 degrees Celsius, our precious metal smelting furnace can also melt ferrous and non-ferrous metals such as copper, iron, aluminum from 1 to 350 kg.
When you're looking for precise melting processes, they have enough functionality to adjust the temperature.In addition, all of our precious metal smelters are equipped with well-designed cooling systems, so you can use them for over 24 hours without any mechanical complications.CDOCAST precious metal smelting furnace adopts the principle of electromagnetic induction heating.Compared to traditional smelting methods, our induction metal smelting furnace smelts faster and more environmentally friendly.
Details Images

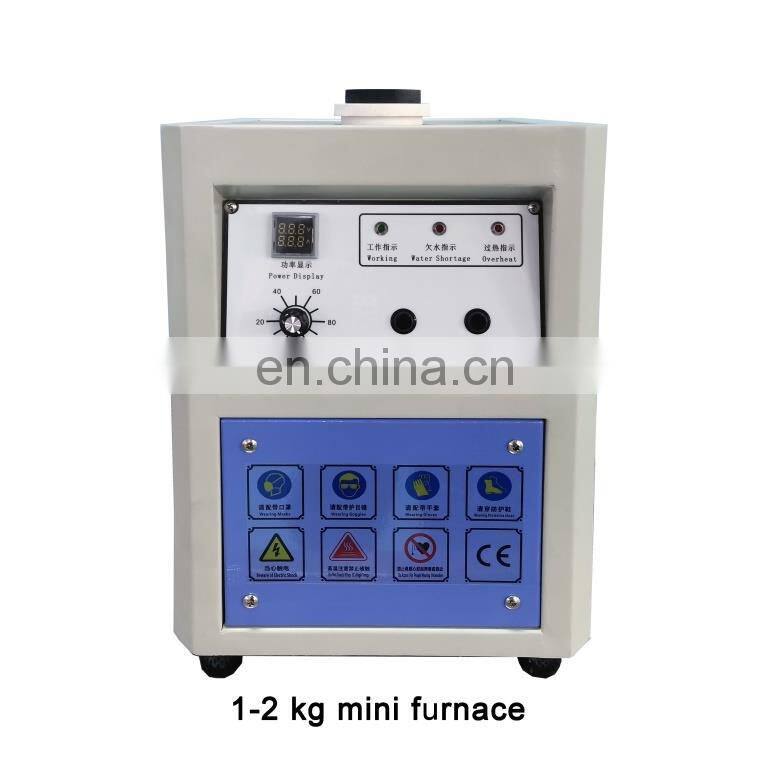

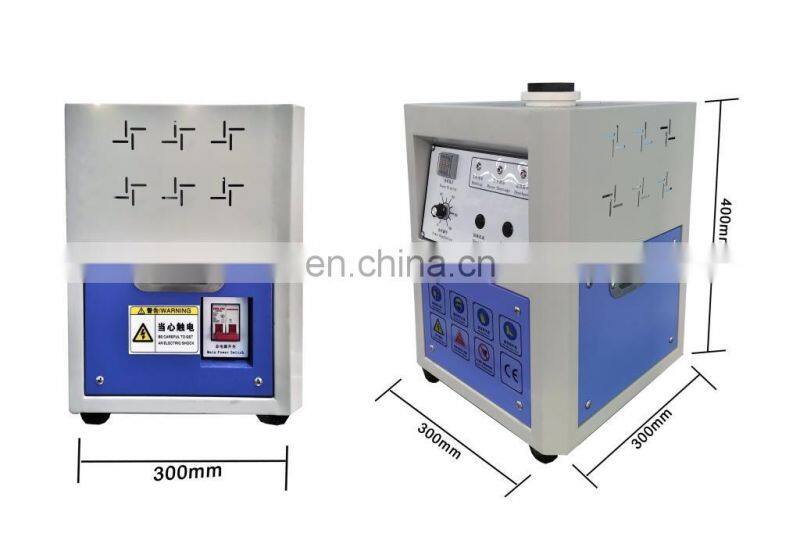

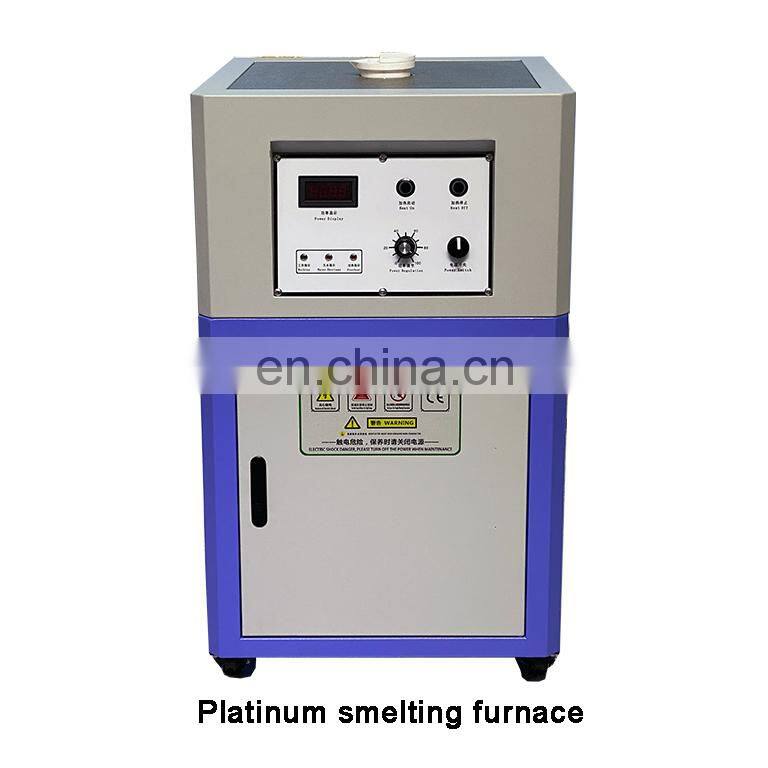

1-2kg mini gold furnace：

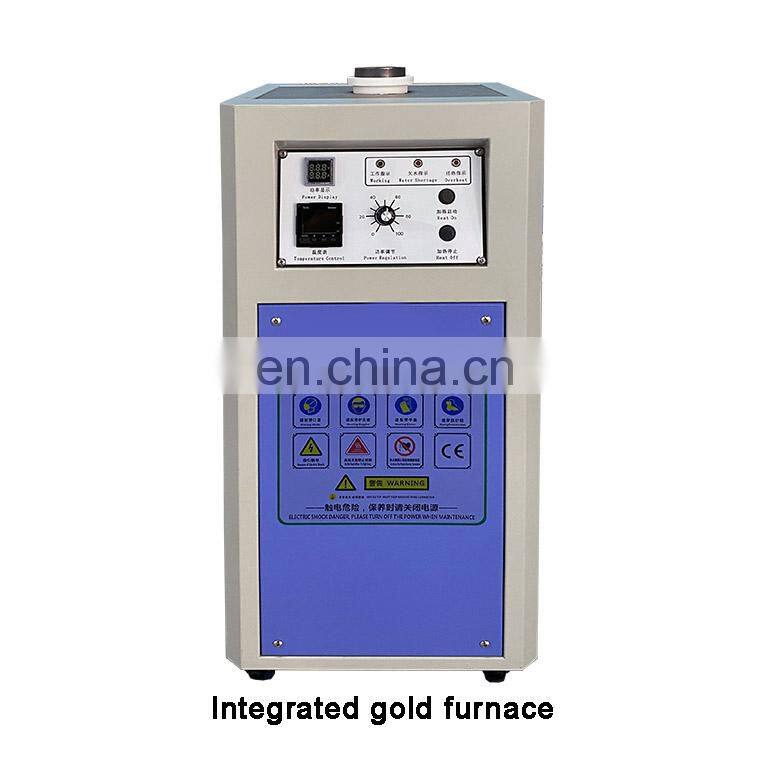

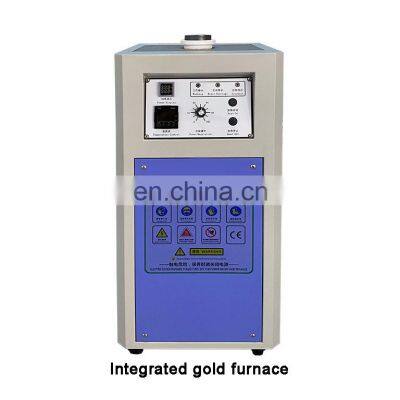

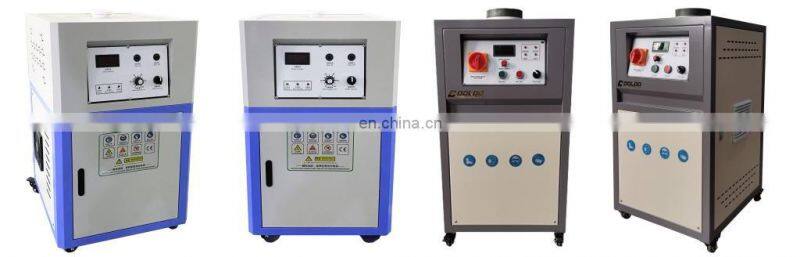

3-15kg integrated smelting furnace

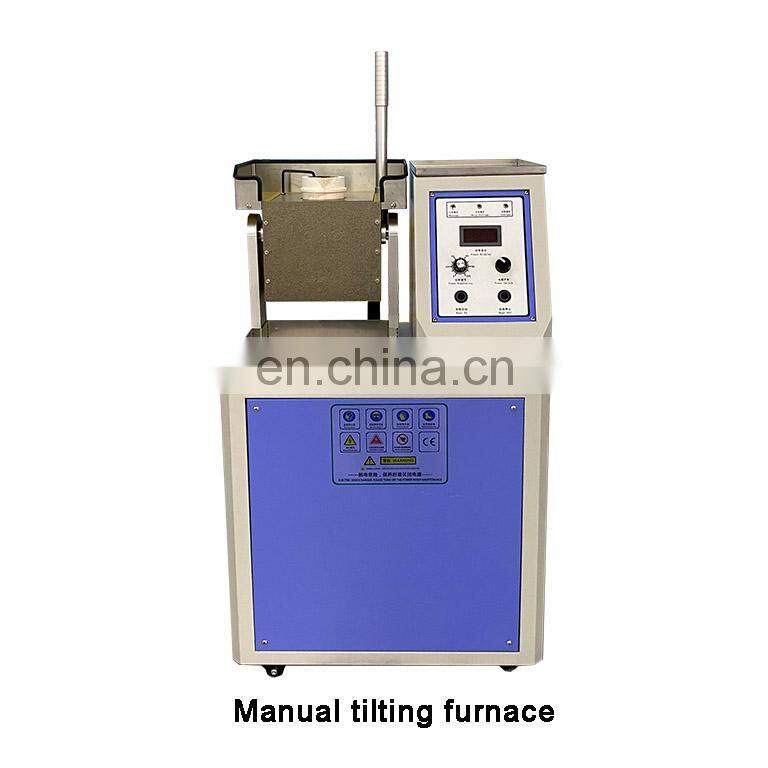

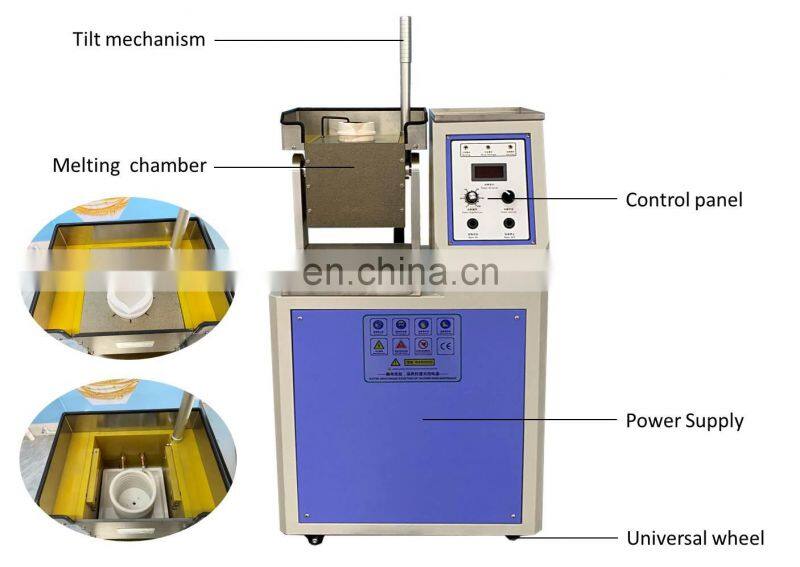

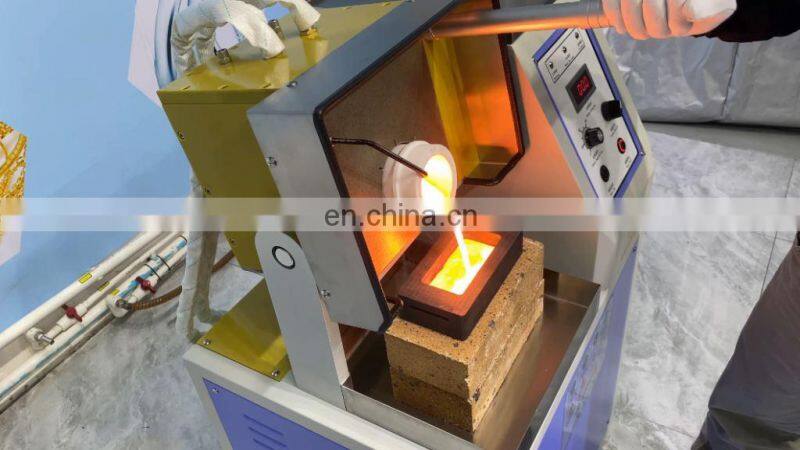

Manual tilting melting furnace：

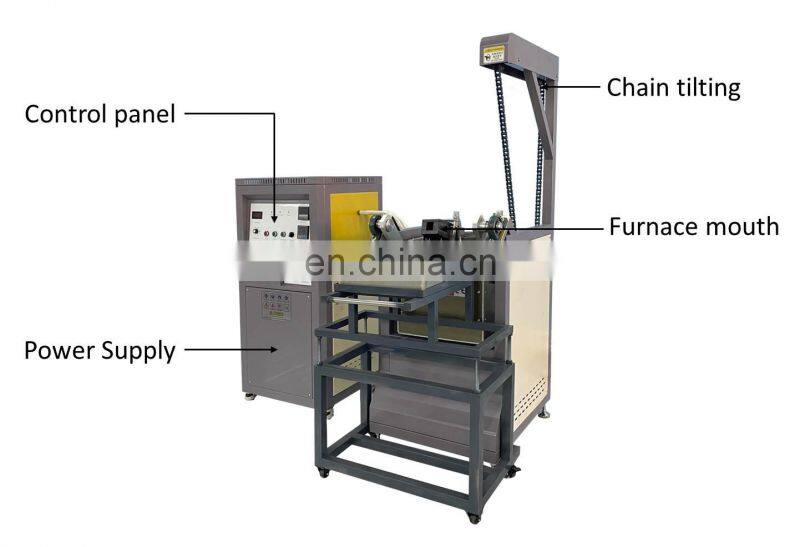

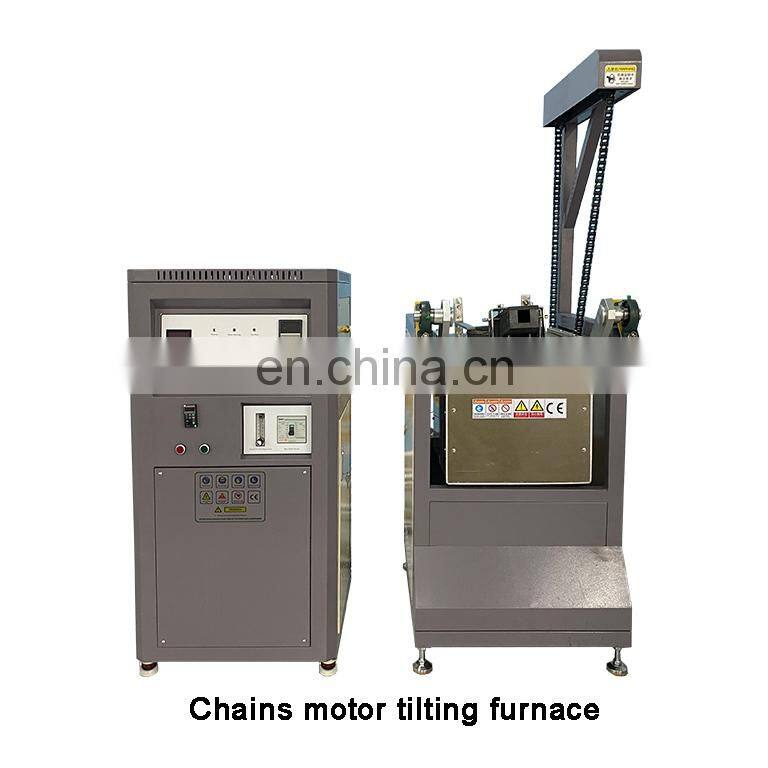

Chain tilting silver melting furnace：

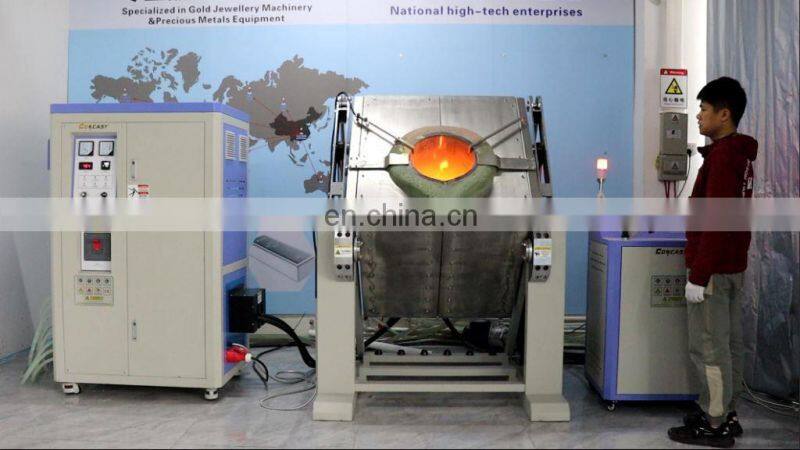

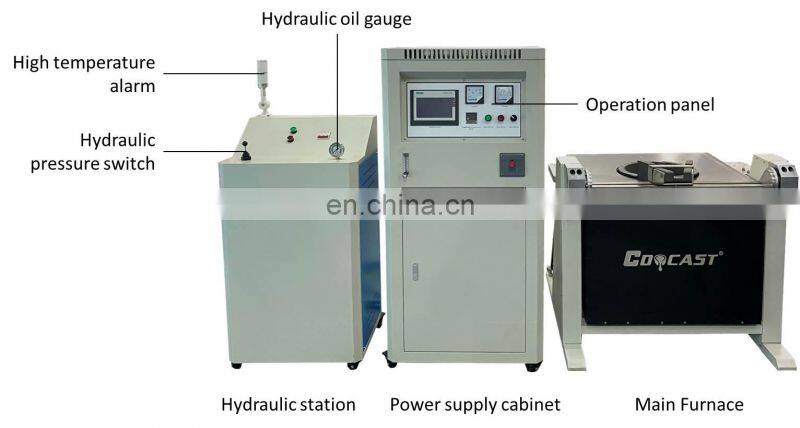

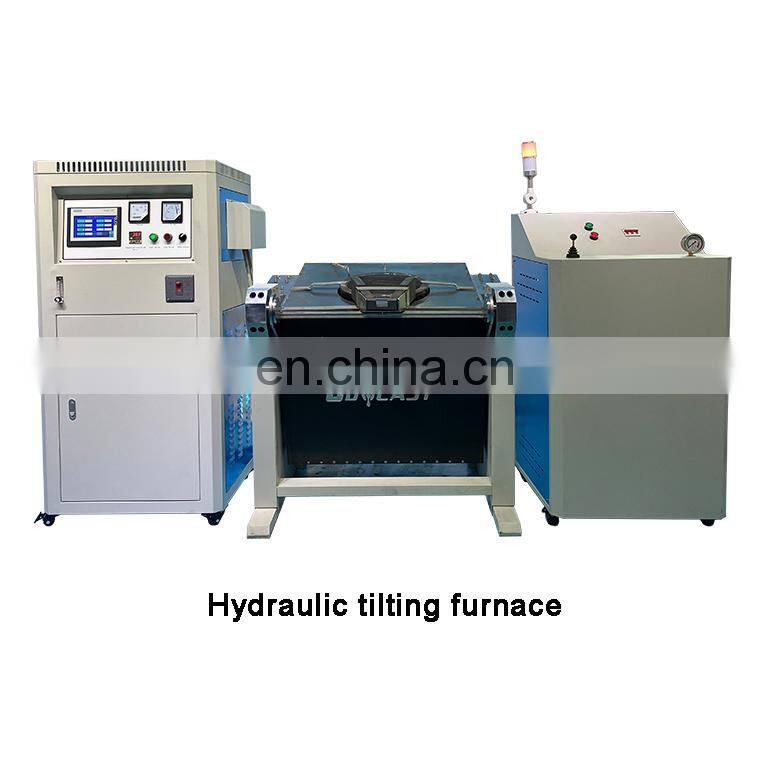

Hydraulic metal melting furnace：
Product Paramenters
Model number |
CDO-GMF1 |
CDO-FL series |
CDO-FM series |
CDO-MT series |
Voltage |
Single P,220V± 10% |
3P, 380 V, 50/60Hz |
3P, 380 V, 50/60Hz |
3P, 220V, 50/60Hz |
Power |
5 kw |
15-30kw |
15-30kw |
15-30kw |
Capacity |
Gold/Silver: 1-2kg |
Gold: 4-15 kg Silver:2-8kg （customized） |
1-8 kg (platinum） |
Gold: 4-15 kg Silver:2-8kg （customized） |
Max temperature |
1650℃ |
1600℃/1800℃ |
2000℃ |
1600℃/1800℃ |
Melting time |
3-5 min |
2-8min |
2-6min |
2-8min |
Weight |
28 kg |
50 kg |
50kg |
78 kg |
Dimension（LWH） |
300*300*400mm |
500*500*860 mm |
500*500*860 mm |
620*500*1050mm |
Crucible size |
Ø34*89mm/Ø44*110mm |
Customized |
Customized |
Customized |
Model number |
CDO-CT series |
CDO-MTF series |
CDO-HT series |
Voltage |
3P, 380 V, 50/60Hz |
3P, 380 V, 50/60Hz |
3P, 380 V, 50/60Hz |
Power |
25-70 kw |
15-160kw |
45-160kw |
Capacity |
Gold/Silver: 20-100kg（customized） |
Fe, ss，Al, Al-alloy：3-100kg Cu, Au, Ag：10-250kg（customized）
|
Fe, ss，Al, Al-alloy：18-100kg Cu, Au, Ag：50-250kg（customized）
|
Max temperature |
1500℃ |
1600℃ |
1600℃ |
Melting time |
8-40 min |
20-50 min |
20-50 min |
Weight |
Customized |
Customized |
Customized |
Dimension（LWH） |
Customized |
Customized |
Customized |
Crucible size |
Customized |
Customized |
Customized |
Application
Feature
Based on the smelting capacity, our precious metal melting furnace can be mainly divided into
1-2kg portable desktop small metal smelting furnace
1-15kg integrated metal smelting furnace
1-15kg hand-operated simple tilting metal smelting furnace
20-100kg chain motor tilting metal smelting furnace
20-150kg manual tilting metal smelting furnace
50-300kg hydraulic tilting metal smelting furnace
1-2kg portable desktop small metal smelting furnace
1-15kg integrated metal smelting furnace
1-15kg hand-operated simple tilting metal smelting furnace
20-100kg chain motor tilting metal smelting furnace
20-150kg manual tilting metal smelting furnace
50-300kg hydraulic tilting metal smelting furnace
Packaging & Shipping
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
