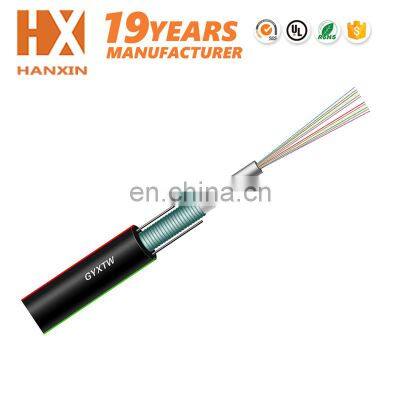

GYXTW factory Outdoor armored single mode 48 32 24 core fiber optic cable

GYXTW factory Outdoor armored single mode 48 32 24 core fiber optic cable

We are 19 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.







Outdoor fiber optic cable GYXTW Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation



Model Number	GYXTW
Type	Coaxial
Number of Conductors	2
Certification	UL ,ROHS,SGS
Fiber	SM/MM/OM3/OM4
Fiber Core	2-24 core
Jacket Material	PE /LSZH/PU
Laying method	Pipeline/Overhead/Direct bury/Duct
keywords	outdoor fiber optic cable
Color	Black or customized
Fiber brand	Corning, LS, etc
Fire Resistant	Yes
Armored or not	Corrugated steel tape armored







Outdoor fiber optic cable GYXTW Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm





Standards:

GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C





Outdoor fiber optic cable GYXTW Technical Parameters



Cable  Type	Fiber  Count	Cable  Diameter(mm)	Cable Weight  kg/km	Tensile  Strength Long /Short Term N	Crush Resistance Long/Short Term N /100mm	Bending Radius Static  /Dynamic mm
GYXTW-24~196	24~196	8.8	90	600/1500	300/1000	15D/30D





1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 19 years’ history.



2.What is your fiber brand ?

NECERO,HANXIN,MECABLE etc



3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



4.What is your warranty period?

25 years for fiber optic cable



5.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.



6.What is your delivery time?

Usually within 2-3 working days



7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8.What is your payment way?

 T/T, L/C, Western Union and Paypal.



9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
