Products Description
Product description

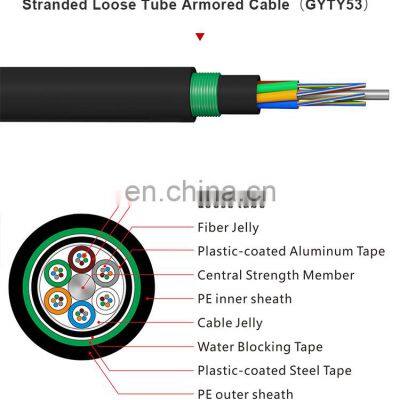

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Products Features
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PE sheath protects cable from ultraviolet radiation
· Good crush ability,applies for duct and directly buried application
· To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully filled in the cable
·Double APL layers prevent the moisture
·Good water-blocking tape prevent the sinking vertically
Product Standard
·GYTA53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics：
G.652
G.655
50/125μm
62.5/125μm
Attenuation
@850nm
≤3.0dB/km
≤3.0dB/km
(+20℃)
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.36dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth （Class A）
@850
≥500MHZ·km
≥200MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260nm
≤1480nm
Technical Parameters：
Cable Type
Fiber Count
Loose tube count
Filler count
Cable Diameter
Cable Weight
Tensile Strength
Crush Resistance
Bending Radius
Kg/km
Long/short term N
Long/short term
Static/dynamic
mm
N/100m
mm
GYTY53-2～6
2～6
1
4
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-8～12
8～12
2
3
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-14～18
14～18
3
2
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-20～24
20～24
4
1
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-26～30
26～30
5
0
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-32～36
32～36
5
0
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-38～48
38～48
5
0
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-50～60
50～60
5
0
12.5
160
1000/3000
1000/3000
15D/30D
GYTY53-62～72
62～72
6
0
13.2
200
1000/3000
1000/3000
15D/30D
GYTY53-74～84
74～84
7
1
15
240
1000/3000
1000/3000
15D/30D
GYTY53-86～96
86～96
8
0
15
240
1000/3000
1000/3000
15D/30D
GYTY53-98～108
98～108
9
1
16
280
1000/3000
1000/3000
15D/30D
GYTY53-110～120
110～120
10
0
16
280
1000/3000
1000/3000
15D/30D
GYTY53-122～132
122～132
11
1
18
290
1000/3000
1000/3000
15D/30D
GYTY53-130～144
134～144
12
0
18
290
1000/3000
1000/3000
15D/30D
GYTY53-146～216
134～144
18
0
18
290
1000/3000
1000/3000
15D/30D
