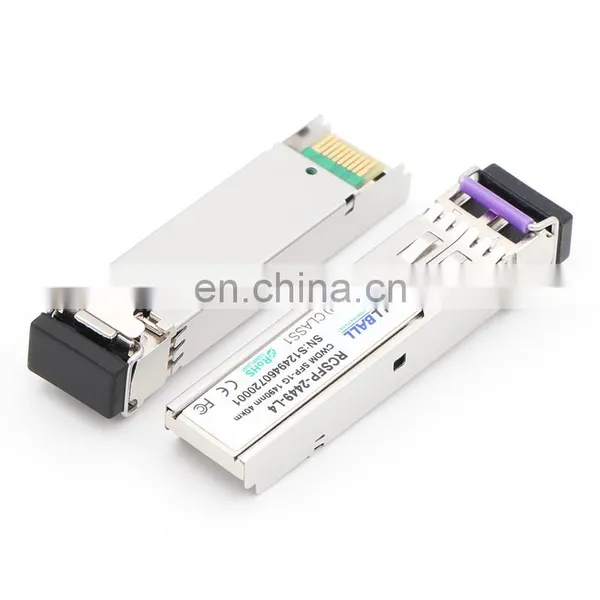

1.25G CWDM SFP 1270-1610nm 40km/1470-1610nm 80km Dual LC DDM Module photo-2
1.25G CWDM SFP 1270-1610nm 40km/1470-1610nm 80km Dual LC DDM Module photo-3

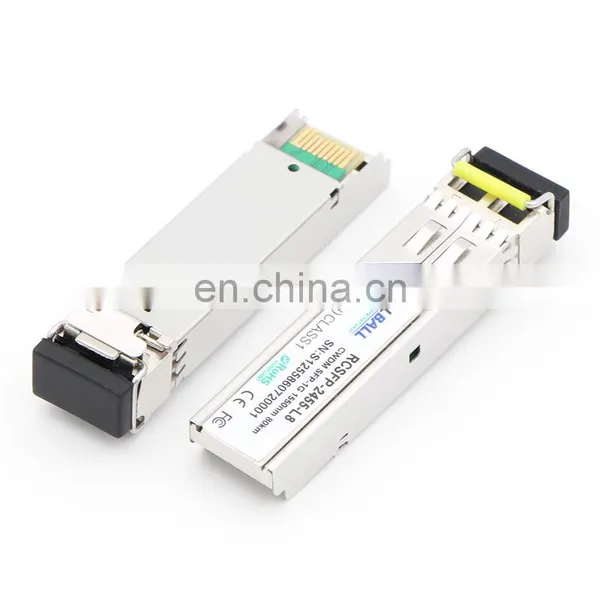

1.25G CWDM SFP 1270-1610nm 40km/1470-1610nm 80km Dual LC DDM Module photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

China manfaturer 1.25G CWDM SFP 1270-1610nm 40km 80km fiber Optical Transceiver Module





Description

1.Rollball’S sfp cwdm module is a high performance, cost effective module supporting data-rate up to 1.25Gbps and 120km transmission distance with SMF.



2.The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.



3.All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. .





Features

1. Single +3.3V power supply, PECL data interface

2.Operating temperature range: -5 to +70 degrees

3. Supports DDMI function

4. Compliant with RoHS standard

5. Compatible with Telcordia (bellcore) GR-468-CORE requirement

6. Data speed from 155M to 2.5Gbps

7. Hot-Pluggable, Dual LC port

8. Class 1 Laser safety, compliant with IEC60825-1





Applications

1. Gigabit Ethernet

2. ATM

3. SONET/SDH

4.Fiber Channel



Product List of CWDM SFP

CWDM SFP (1.25G/2.5G) without DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm
RCSFP-24XX-L4 1.25G (1270-1450nm)   40km SFP 0~70 DFB+PIN
RCSFP-24XX-L6 1.25G (1270-1450nm)   60km SFP 0~70 DFB+PIN
RCSFP-24XX-L8 1.25G (1270-1450nm)   80km SFP 0~70 DFB+APD
RCSFP-24XX-L4 1.25G (1470-1610nm)   40km SFP 0~70 DFB+PIN
RCSFP-24XX-L6 1.25G (1470-1610nm)   60km SFP 0~70 DFB+PIN
RCSFP-24XX-L8 1.25G (1470-1610nm)   80km SFP 0~70 DFB+PIN
RCSFP-24XX-12 1.25G (1470-1610nm)   120km SFP 0~70 DFB+APD
RCSFP-48XX-L4 2.5G (1270-1450nm)   40km SFP 0~70 DFB+PIN
RCSFP-48XX-L8 2.5G (1270-1450nm)   80KM SFP 0-70 DFB+APD
RCSFP-48XX-L4 2.5G (1470-1610nm)   40km SFP 0~70 DFB+PIN
RCSFP-48XX-L8 2.5G (1470-1610nm)   80km SFP 0~70 DFB+APD

CWDM SFP (1.25G/2.5G/4.25G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm
RCSFP-03XX-12D 155M (1270-1450nm)   120km SFP 0~70 DFB+PIN
RCSFP-03XX-12D 155M (1470-1610nm)   120km SFP 0~70 DFB+PIN
RCSFP-24XX-L4D 1.25G (1270-1450nm)   40km SFP 0~70 DFB+PIN
RCSFP-24XX-L6D 1.25G (1270-1450nm)   60km SFP 0~70 DFB+PIN
RCSFP-24XX-L8D 1.25G (1270-1450nm)   80km SFP 0~70 DFB+APD
RCSFP-24XX-L4D 1.25G (1470-1610nm)   40km SFP 0~70 DFB+PIN
RCSFP-24XX-L6D 1.25G (1470-1610nm)   60km SFP 0~70 DFB+PIN
RCSFP-24XX-L8D 1.25G (1470-1610nm)   80km SFP 0~70 DFB+PIN
RCSFP-24XX-12D 1.25G (1470-1610nm)   120km SFP 0~70 DFB+APD
RCSFP-48XX-L4D 2.5G (1270-1450nm)   40km SFP 0~70 DFB+PIN
RCSFP-48XX-L8D 2.5G (1270-1450nm)   80KM SFP 0-70 DFB+APD
RCSFP-48XX-L4D 2.5G (1470-1610nm)   40km SFP 0~70 DFB+PIN
RCSFP-48XX-L8D 2.5G (1470-1610nm)   80km SFP 0~70 DFB+APD
