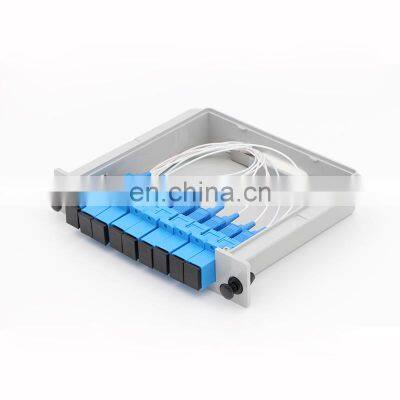

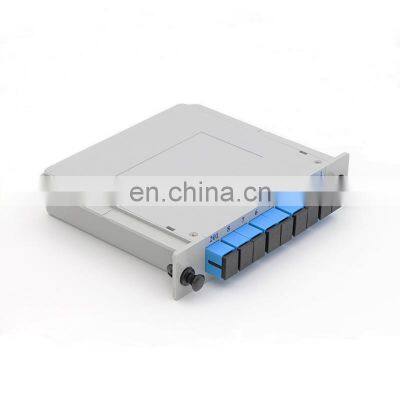

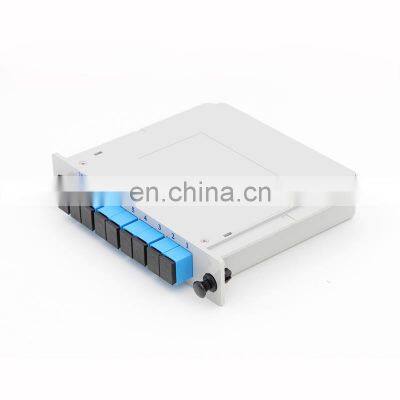

1x8 ABS Box Module Type SC/UPC Connector Fiber Optical PLC Splitter Cassette
- T/T Credit Card
You May Like
Product Description
1x8 ABS Box Module Type SC/UPC Connector Fiber Optical PLC Splitter cassette
1. Description
- splitter optic is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
- Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
2. Application
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
3. Feature
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength:From 1260nm to 1650nm
- Wide Operating Temperature: From -40°C to 85°C
- High Reliability and Stability
4. Compliance
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS
5. Specifications
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | |||||
| Storage Temperature (°C) | -40~85 | |||||
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Notes:
- we also product 2×N PLC Splitter
- Specified without connectors.
- Add an additional 0.2dB loss per connector.
6.Company information
Rollball is always at your services with our fiber optical products. We have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: Absolutely no hidden costs and excellent products. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are shooting for ?? .


- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
