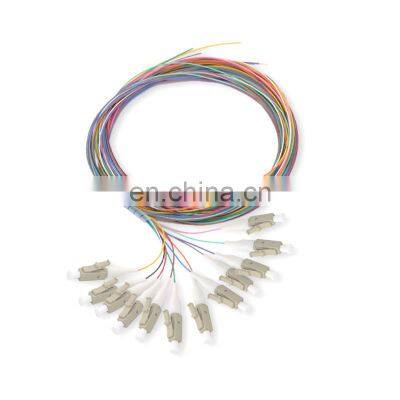

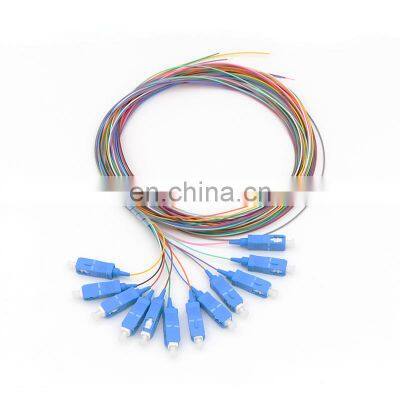

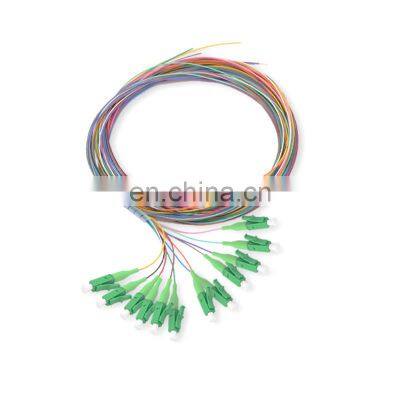

LC SC SM MM 1meter 12 color code st fiber optic pigtail
1.Description
Fiber optic pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
2.Feature
1).Low Insertion loss
2).High return loss
3).Good Repeatability
4).Good Interchange
5).Excellent Environmental Adaptability
3.Application
1).Communication rooms
2).FTTH (Fiber to The Home)
3).LAN (Local Area Network)
4).FOS (fiber optic sensor)
5).Fiber Optic Communication System
6).Optical fiber connected and transmitted equipment
7).Defense combat readiness
4.Specification
Type |
Standard,Master |
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO,MTP |
Fiber |
Singlemode 9/125 /Multimode 50/125, Multimode 62.5/125 OM3/OM4/OM5 |
Cable |
Simplex, Duplex,6fiber,12fiber,24fiber,48fiber Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
Polishing Manner |
UPC,PC,APC (8°& 6°) |
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
Repeatability |
±0.1dB |
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
5.Product list
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
|
0.9mm 2.0mm 3.0mm 4.0mm |
LC SC FC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 OM5 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized |
Rollball is always at your services with the all kinds Pigtail:SM, OM1,OM2,OM3,OM4,OM5 of simplex,duplex,6/8/12/24/48 fibers to LC SC ST FC MU MPO MTP etc with different length, color, material customized
As professional manufacturer with more than 10years experience, you are sure to stand out with Rollball advantages: competitive price , products warranty and excellent quality.
