Product Description
Factory manufacturers 6 12 24 48 96 144 core fiber optic cable fibra optica adss

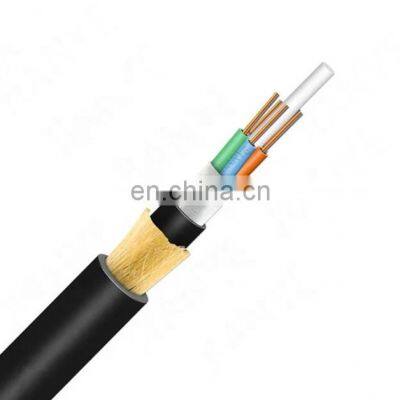

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Features:1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling
Cable Design:
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature

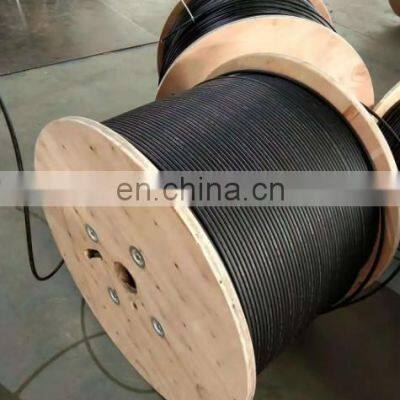

* Package : 2~4km/ wooden drum
Cable Parameters
| Items | Specifications | |
| Fiber No. | 24 | |
| Cable internal structure | 1+6 | |
Loose Tube |
Dimension | 2.2mm±0.05mm |
| Material | PBT | |
| Tube No. | 2 | |
| Fibers per Tube | 12 | |
Filler |
Dimension | 2.2mm±0.05mm |
| Material | PVC | |
| Color | Grey | |
| No. | 4 | |
Central Strengthen Member |
Diameter | 2.2±0.05mm |
| Material | FRP | |
Armaid Yarn |
Span | 120 Meters |
| Material | Armaid Yarn | |
Outer Sheath |
OD. | 9.3 ±0.1mm |
| Material | PE | |
| Color | Black | |
| Weight | 90 ±5kg/km | |
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contactus from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts formultiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check
the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
