Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 1x16 Plc Splitter Fibra Caja de Distribucion Ftth Rmini Fiber Optic Plc Splitter

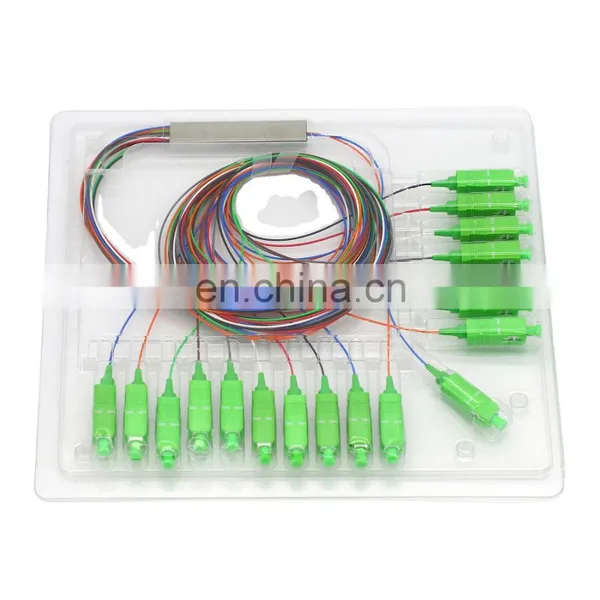

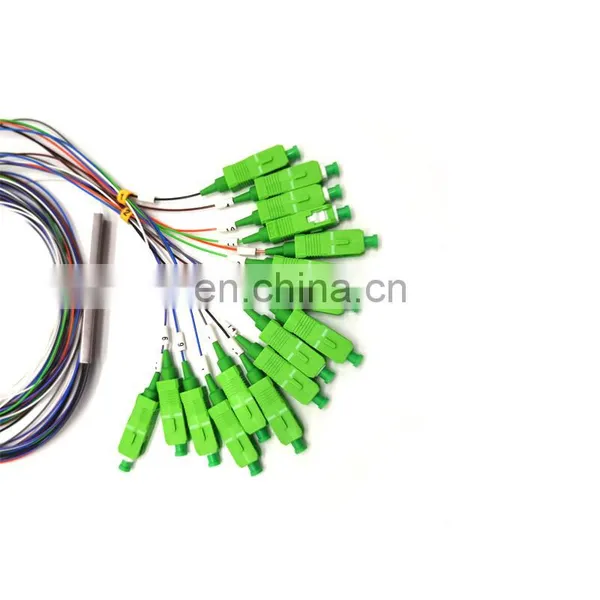

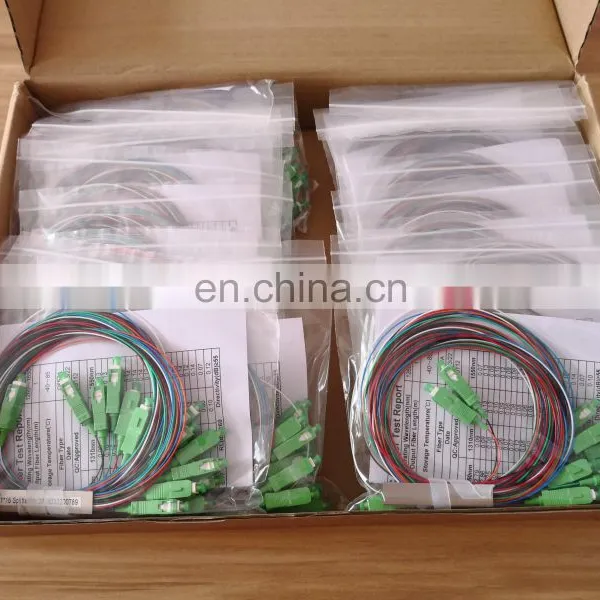

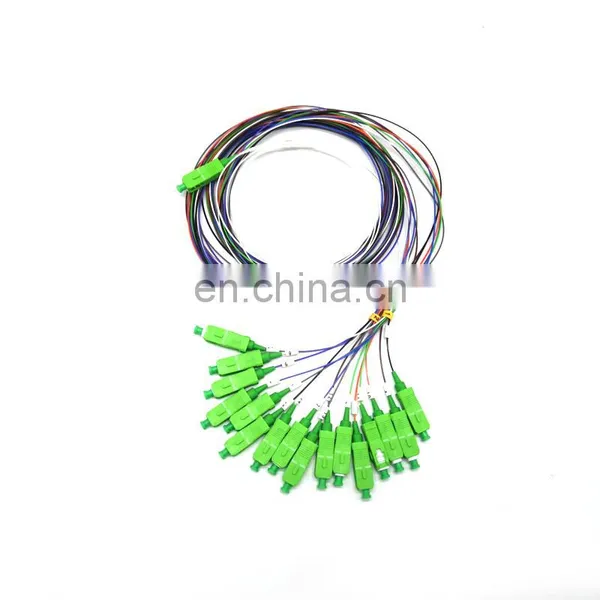

1x16 Plc Splitter Fibra Caja de Distribucion Ftth Rmini Fiber Optic Plc Splitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plc Splitter Plc 1 x 2 SC/UPC Splitter Rmini Fiber Optic Plc SplitterNegotiableMOQ: 1 -
Fiber Optic Equipment 1260 to 1650nm Ftth Optic Fiber Plc Splitter 1x2/1x4/1x8NegotiableMOQ: 1
-
SC APC UPC 1 x 4/1 x 8 Fiber Optic PLC Splitter SC Splitter Mini Tube Type SplitterNegotiableMOQ: 1
-
SC APC UPC Mini PLC Optical Splitter G657A 1*2/1*4/1*8/1*16/1*32/1*64 Plc SplitterNegotiableMOQ: 1
-
1x8 PLC Fiber Optic Splitter In ABS Box PLC SplittersNegotiableMOQ: 1
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) Min * |
55 |
||||||||
|
Return Loss (dB) Min * |
55(50) |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
