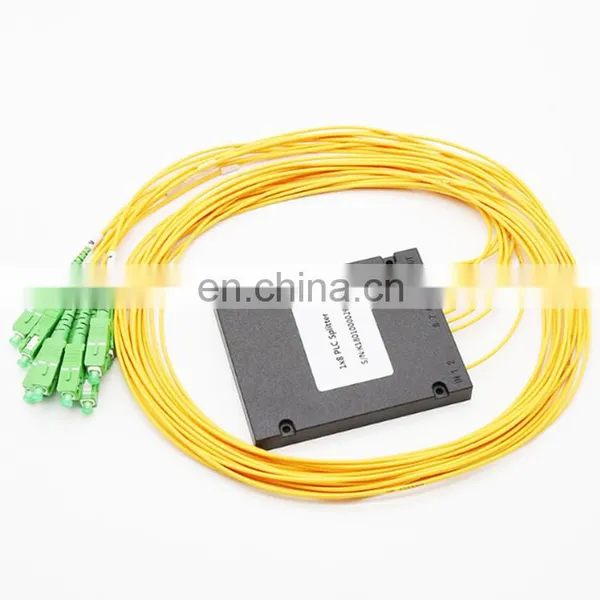

Help Center1x8 PLC Fiber Optic Splitter In ABS Box PLC Splitters
Related Products
-
1x8 1x32 PLC Splitter Without Connector Steel Tube TypeNegotiableMOQ: 1 -
Telecom Grade PLC Splitter 1x8 PLC 1 x 2 Fiber Optic Splitter Cassette Type With SC/APC SC/UPC ConnectorNegotiableMOQ: 1
-
Manufacturing High Quality FTTH Rack Type PLC Splitter 1x2/ 1x4 1x8 1x16 PLC Splitter With Connectors SC/APCNegotiableMOQ: 1
-
1*8 Optical Splitter SC/UPC APC Fiber Cassette PLC Splitter Box With Insert TypeNegotiableMOQ: 1
-
Fiber Optic Equipment 1260 to 1650nm Ftth Optic Fiber Rack Type PLC Splitter 1x4 1x8 1x16 1x32 1x64NegotiableMOQ: 1
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
