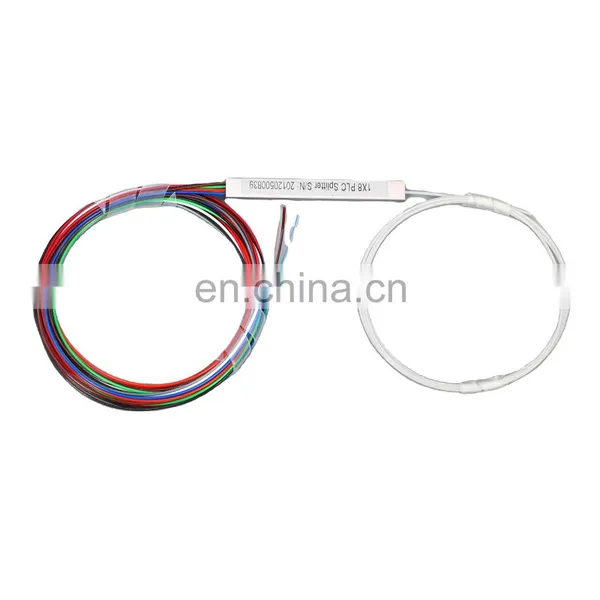

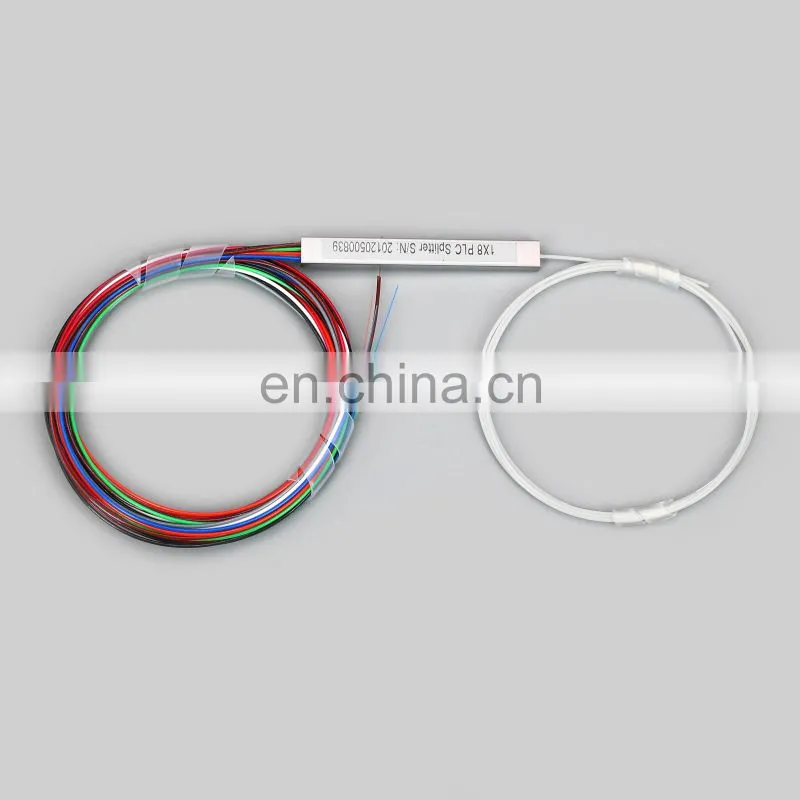

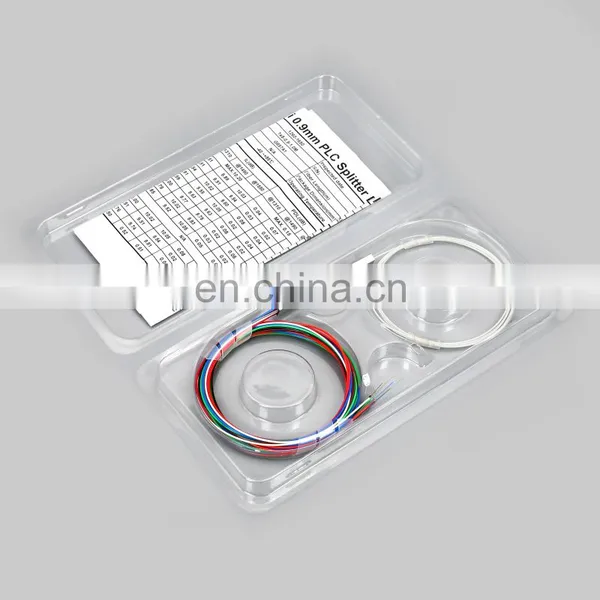

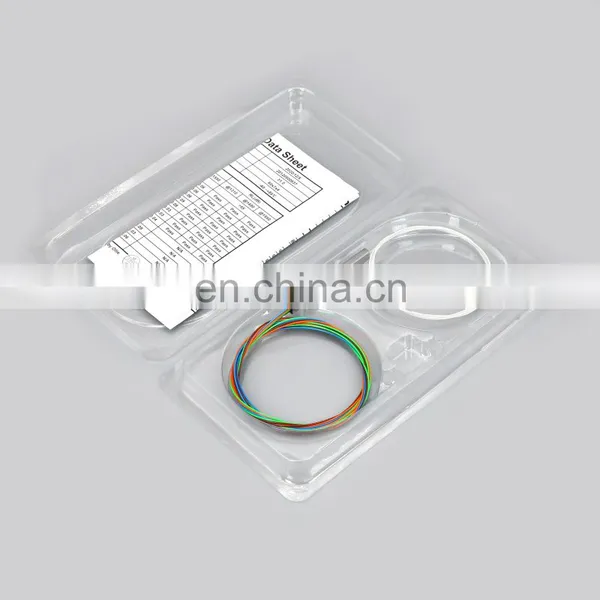

plc splitter 1x2 1x4 1x8 1x16 plc splitter mini fiber optic plc splitter

Operating Wavelength (nm)

1260 ~ 1650

Type

1x4

1x8

1x16

2x4

2x8

2x16

1x32

2x32

1x64

Insertion Loss (dB) Max. *

<7.3

<10.5

<13.5

<7.6

<11.2

<14.5

<16.2

<18.2

<20.5

Uniformity (dB) Max.*

<0.8

<1.0

<1.5

<1.0

<1.5

<2.0

<2.0

<2.5

<2.5

PDL(dB)Max.*

<0.2

<0.2

<0.3

<0.3

<0.3

<0.4

<0.3

<0.4

<0.3

Directivity (dB) Min *

55

Return Loss (dB) Min *

55(50)

Operating Temperature (°C)

-5~ +75

Storage Temperature (°C)

-40 ~ +85

Fiber length

1m or custom length

Fiber Type

Corning  SMF-28e fiber

Connector Type

Custom specified

Power Handling (mW)

300
