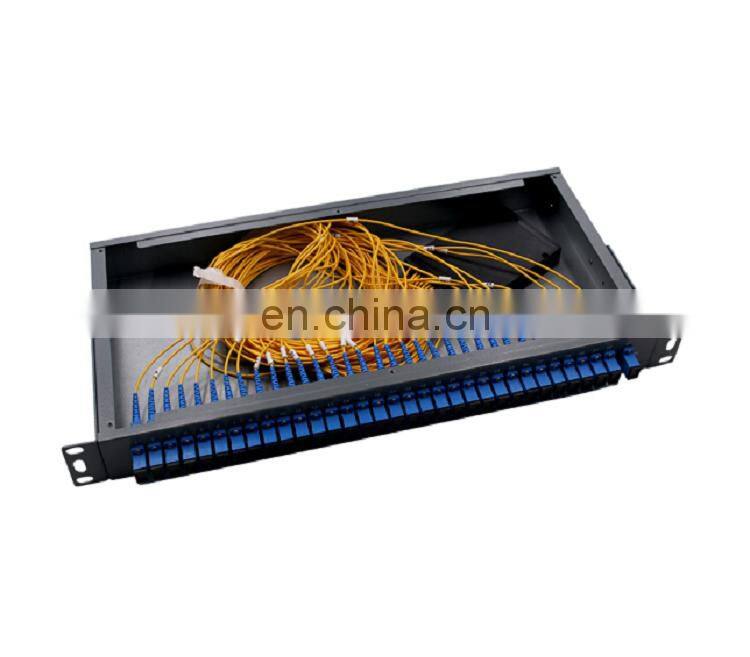

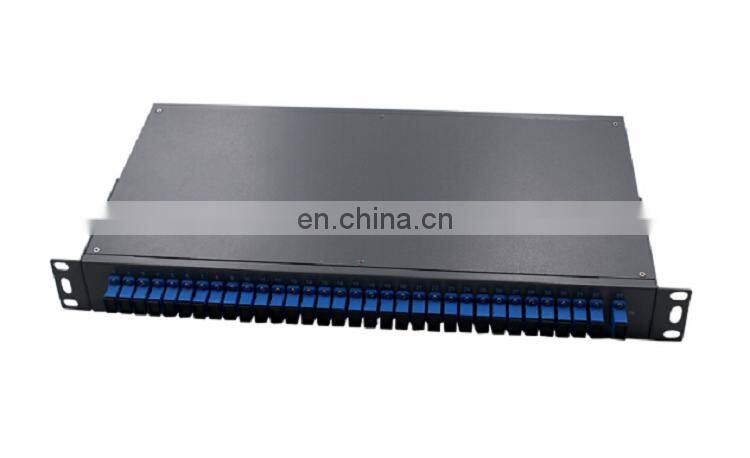

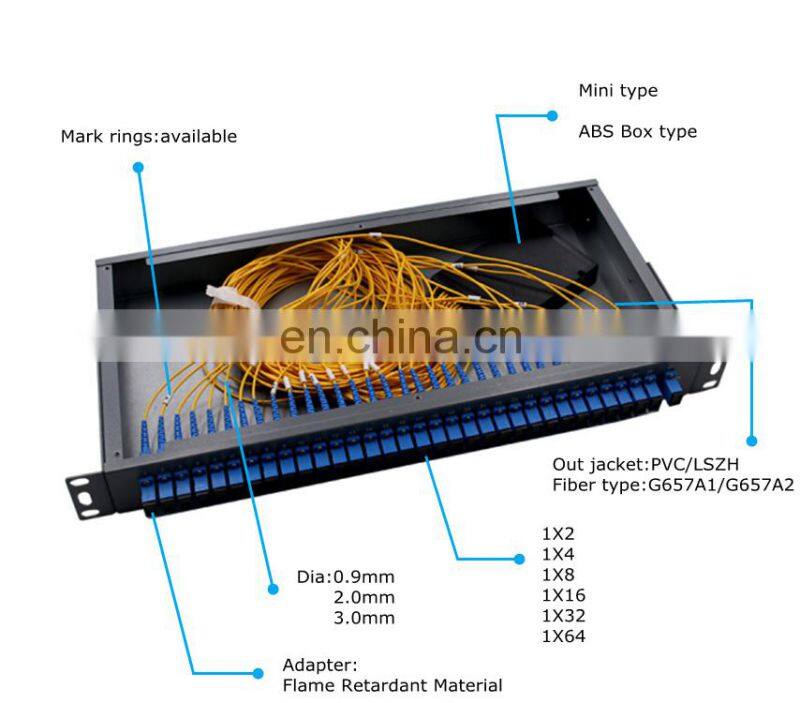

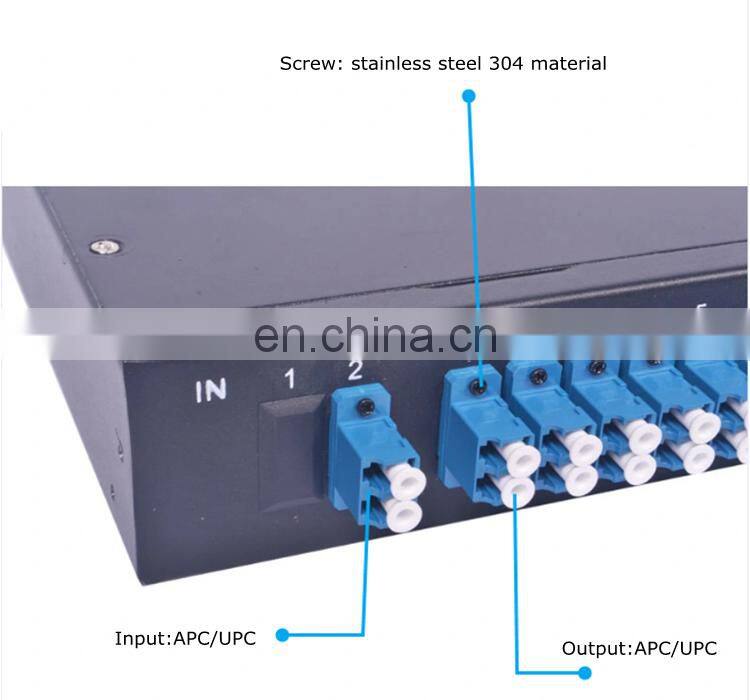

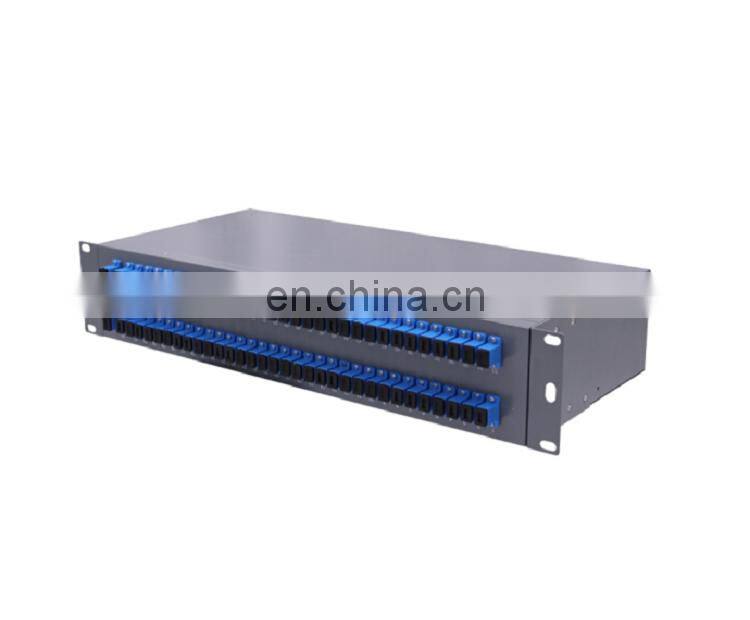

FTTH Fiber Optic Cable fixed type rack mounted type 1x16 PLC Splitter Fiber Optic internet splitter
- T/T Credit Card
You May Like
-
Less Expensive Buyer Optical Fiber splitter Fiber Optic Splitter PLC rack mount Type Splitter Price
-
FTTH fiber optic 1*N 1x2 1x4 1x8 1x16 1X32 1X64 fiber optical rack mount type plc splitter
-
Passive rack mount type plc splitter 1*N 1x2 1x4 1x8 1x16 1X32 1X64 fiber optical splitter for epon/gpon/ftth networks
-
Fiber Optic Splitter rack mount type splitter SCAPC SCUPC
-
1:16 1 x 6 1*16 1x16 way ribbon micro mini tube fiber optic plc splitter without connector
-
1*16 ribbon micro-modular fibra optica plc splitter 1x6 SCAPC
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
