Product Description

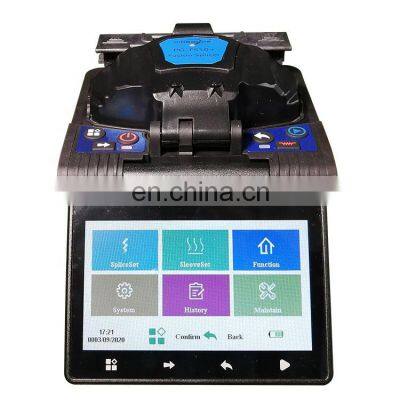

Capacitive touch screen full automatic machine fusion splicer arc fusion splicer low price
Products brief:
Optical fiber fusion splicer is use for optical fiber cable maintenance and relative operations. Thus it’s also called fiber cable splicer. It’s a device that uses high precision propulsion structure to push two fibers to get closer to each other and uses an electric arc to melt two optical fibers together at their end faces, to form a single long fiber.
Optical fiber fusion splicers are mainly applied by: Telecom carriers,ISP,network project contractors,laboratories. And they’re applied in: Fiber cable network maintenance, telecom projects, emergent repairing, optical experiments, manufacture and testing og optical devices, academic researches in collages.
Specification:
|
FIBER TYPE |
SM(G.652/G.657) MM(G.651) DS(G.653) NZDS(G.655) EDF,BIF/UBIF |
WEIGHT SIZE |
Weight: 1.19kg(Without battery) 1.53kg (With battery) Dimension: 146D×131W×152H(mm) |
|
|
|
|
|
|
APPLIC-ABLE CORE |
Single Core |
LOSS |
0.02Db(SM) 0.01Db(MM) 0.04Db(DS) 0.04Db(NZDS) |
|
|
|
|
|
|
SPLICE TIME |
9s(Typical Mode) 7s(Fast Mode) |
HEATING TIME |
2mm tube(10-15s adjustable) 4mm tube(14-19s adjustable) 6mm tube(17-23s adjustable) |
|
|
|
|
|
|
ALIGN MENT |
Core Alignment Clad Alignment
|
MAGNIFI CATION TIMES |
X/Y:200 times X or Y: 400times
|
|
|
|
|
|
|
Language |
English, Russian, Spanish, Italian, Thai, Vietnamese |
Battery Capacity |
230times splicing and heating |
Click here>>>>>To send inquiry and get discount
Workbench for field operate:
Standard Package:
| NO. | Name | Quantity |
| 1 | Fusion Splicer | 1 |
| 2 | Cleaver | 1 |
| 3 | Carrying Case | 1 |
| 4 | 3 Ports Stripper | 1 |
| 5 | Drop Cable Stripper | 1 |
| 6 | Muti-function Fiber Holder | 1 |
| 7 | Power Adapter | 1 |
| 8 | AC Power Cord | 1 |
| 9 | Alcohol Bottle | 1 |
| 10 | Cooling Tray | 1 |
| 11 | Dust Blowing Ball | 1 |
| 12 | Tweezer | 1 |
