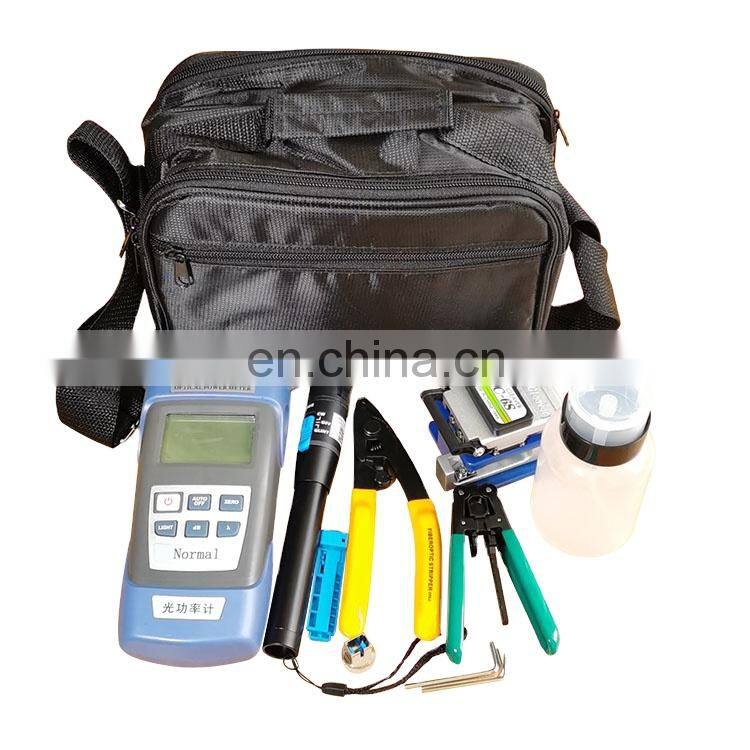

PG-OT10 ftth fibre optic tools set kit tool box optic fiber tools set

PG-OT10 ftth fibre optic tools set kit tool box optic fiber tools set

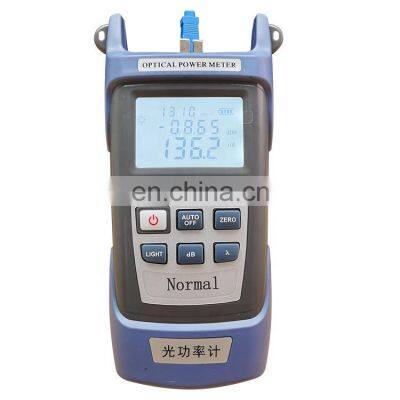

Optical power meter

1. Support three kinds of interfaces, 7 kinds of wavelengths

2. User self-calibration function

3. Support scheduled shutdown

4. Three backlight modes

5. Quick response, no need to warm up

6. Long working hours and long standby time

Bag

1. Drop-proof, scratch-resistant, waterproof, large space in the bag, multiple compartments, dual-use for carrying, very convenient

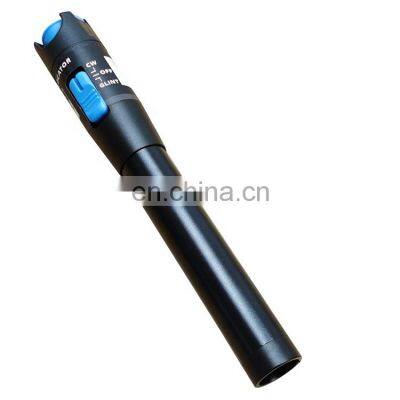

VFL

1. All metal material, using laser head

2. Easily penetrate fiber

3. Powerful light source and stable performance

4. output power: 1mW, can test 5km

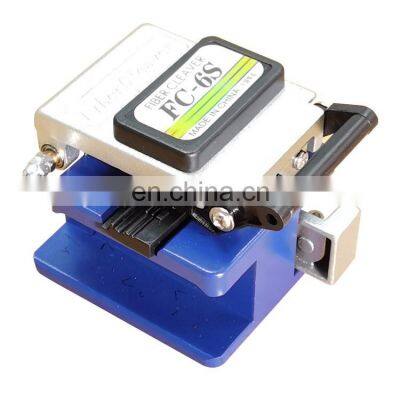

FC-6S fiber cutter

1. Used for cutting single core fiber

2. Suitable for 250um, 900um covered fiber

3. High-quality slide rail, automatic rebound

4. Tungsten steel blade, easy cold connection

Model: FC-6S

Applicable fibers: Singlemode or Multimode Use

Fiber Diameter: 125um

Coating Diameter: 250um ~ 900um

Typical Cleave Angle: 0.5 Degrees

Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating)/10 - 16mm (Single Fiber - 0.9mm Coating)

Blade Life Time: 36,000 cleaves (3,000 per blade position)

Cleaver Dimensions: 63 x 65 x 63mm

Weight 350g

fiber stripper two holes

1. Easy to scratch the coating, no damage to the optical fiber

2. Used to strip the 250um coating of 125um fiber

3. Carbon steel material, easy to peel off

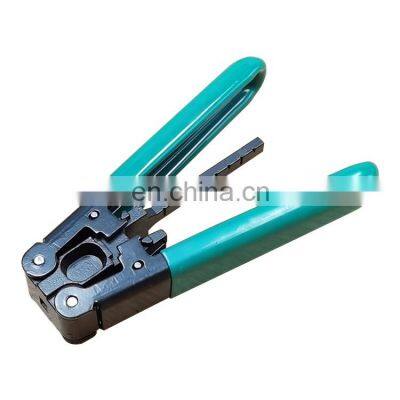

FTTH Drop Cable Stripper

1. Light weight, small size, easy operation

2. With scale, suitable for stripping of 2mm, 3mm indoor optical cable sheath

Alcohol bottle

210ml alcohol bottle, push type, leak-proof and drop-proof

Length guide

1. Required for optical fiber quick connector

2. Tool cold connection, dual-purpose connection

3. Mainly open the stripping line rubber sleeve
