Product Description
1GE port 2.4G Wifi EPON XPON FTTH ONU

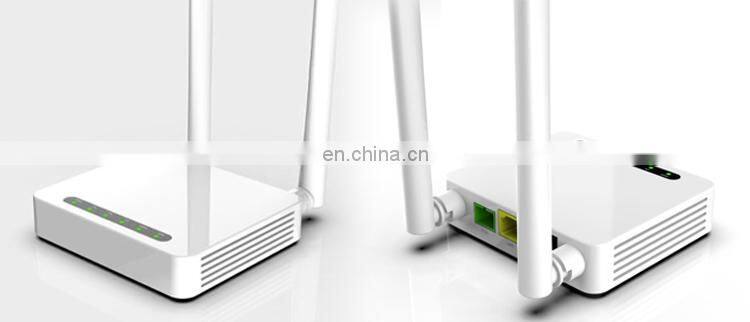

Appearance:
Overview:
PG-XP1001R002 is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class
FTTH application provides data service access.
1GE+WIFI is based on mature and stable, cost-effective XPON technology. It can switch
automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
PG-XP1001R002 adopts high reliability, easy management, configuration flexibility and good quality of
service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
PG-XP1001R002 is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
PG-XP1001R002 are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
PG-XP1001R002 is designed by Realtek chipset 9602C
Feature:
Supports Dual Mode (can access GPON/EPON OLT).
Supports GPON G.984/G.988 standards
Support 802.11n WIFI (2x2 MIMO) function
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular brand OLT
Specification:
| Technical Item | Details |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1x10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
| LED | 7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS |
| Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition | Temperature : 0℃~+55℃ Humidity :10%~90%(non-condensing) |
| Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
Application:
Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Service:Broadband Internet access, IPTV etc.
