PG-ODF3015 wall mounted fiber optic distribution box ftth termination ODF fiber cabinet box 24 48 72 port
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
1U 12-24 ports indoor rack mounted fiber optic distribution frame,ODF,terminal box
-
8 Cores 3 input mid-span ports optic fiber ftth Distribution termination box ftth drop cable box black color ABS material
-
mid-span style FTTH 24 cores outdoor Fiber optic Termination Box 1x16 PLC splitter distribution box ftth
-
ABS material outdoor waterproof fiber optic box FTTH terminal distribution box 16 port
-
waterproof and hager distribution box for HTTH 8cores
-
19 inch optic fiber distribution terminal box rack mounted odf 144 cores
Product Description

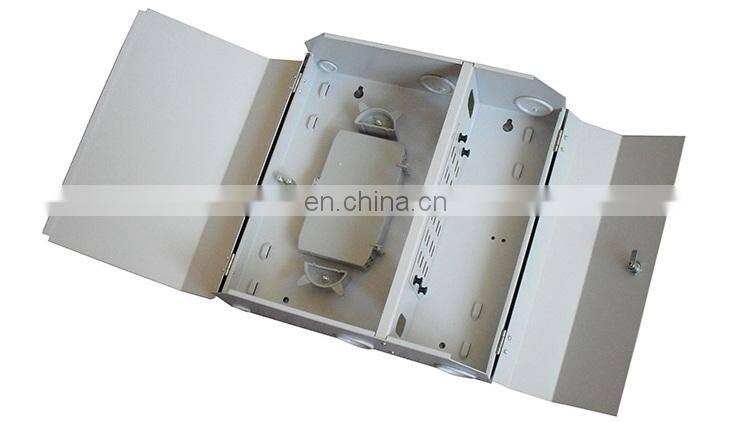

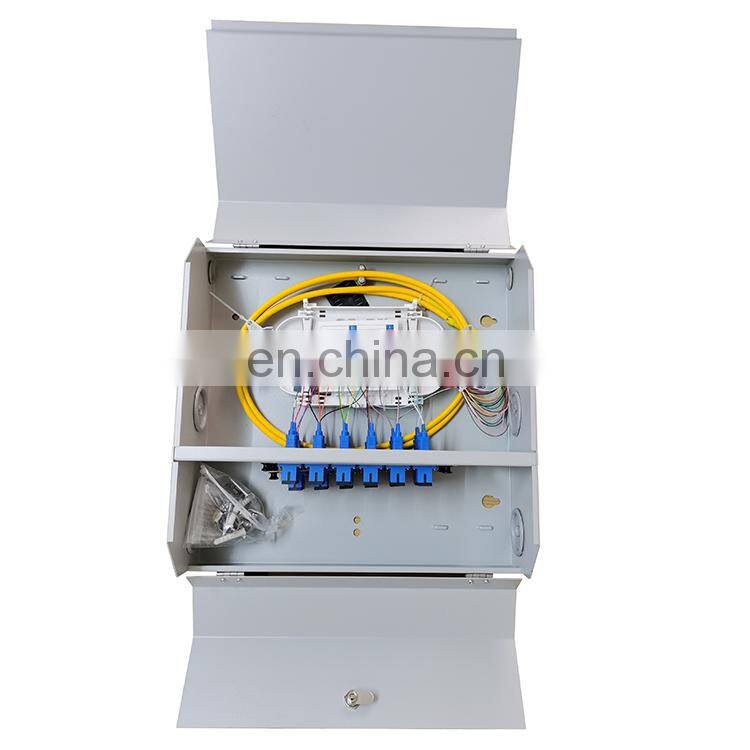

PG-ODF3015 fiber optic distribution box ftth termination ODF fiber cabinet box 24 48 72 port
item | value |
Model Number | PG-ODF3015 |
Type | Racks & Enclosure |
Place of Origin | China |
Guangdong | |
Brand Name | Piogoods |
Use | FTTH |
Warranty Time | 5 years |
Network | optical fiber network |
Product name | wall mounted ftth termination ODF fiber cabinet box 24 48 port |
Material | stainless steel or cold rolled plate |
Cores number | 12~72 ports |
Color | Grey |
Warranty | 1 Year |
Packing | PP bags+Carton |
optical interface | FC SC ST LC optional |
Use for | FTTH |
FEATURE:
1) Capacity(core): 24~72 ports
2)Material:stainless steel or cold rolled plate with electrostatics plastic-spray surface.
3)Packing: pp bags+Carton or customized
Product summary:
1) Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusion
2) Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured by the adoption of SMC compound materials
3) The sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution
4) It is the combination of three functions: optical fusion, store and distribution
5) Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy
6) Adaptor is installed with a certain angel, maintenance is easy, transmission loss is low
7) It suits to common optical fiber cable, also to band optical fiber cable's fusion
Environment conditions:
1) Working temperature: -25°C - 55°C
2) Relative humidity: ≤85% (30°C)
3) Air pressure: 70 - 106KPa
4) Standard working wavelength: 850, 1,310, 1,550nm
5) Connector loss: ≤0.5dB
6) Back wave loss: PC≥40dB, UPC≥50dB,APC≥60dB
7) Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc
8) Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC
1) Capacity(core): 24~72 ports
2)Material:stainless steel or cold rolled plate with electrostatics plastic-spray surface.
3)Packing: pp bags+Carton or customized
Product summary:
1) Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusion
2) Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured by the adoption of SMC compound materials
3) The sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution
4) It is the combination of three functions: optical fusion, store and distribution
5) Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy
6) Adaptor is installed with a certain angel, maintenance is easy, transmission loss is low
7) It suits to common optical fiber cable, also to band optical fiber cable's fusion
Environment conditions:
1) Working temperature: -25°C - 55°C
2) Relative humidity: ≤85% (30°C)
3) Air pressure: 70 - 106KPa
4) Standard working wavelength: 850, 1,310, 1,550nm
5) Connector loss: ≤0.5dB
6) Back wave loss: PC≥40dB, UPC≥50dB,APC≥60dB
7) Resistance to voltage between high-voltage protection ground and frame: ≥3kV (DC) / 1min no puncture or arc
8) Insulation resistance between high-voltage protection ground and frame: ≥20,000MΩ / 500V DC
