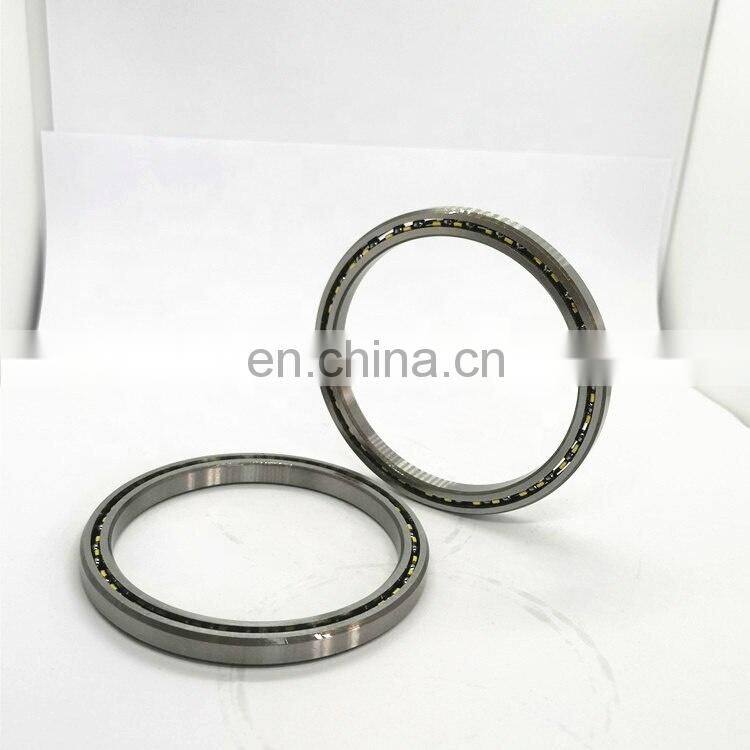

Kaydon Thin Section Ball Bearing KA020AR0 Angular Contact KA Series Ball Bearing
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
NSK Ball Screw Support Angular Contact Ball Bearing 35TAC72BSU10PN7B
-
Original Good Price Angular Contact Ball Bearing 15TAB04
-
F-567043 Cylindrical Roller Bearing
-
Cylindrical Roller Bearings CRM 18 A Toroidal Roller Bearings CRM18A
-
F-230877 Single Row Cylindrical Roller Bearing 65x90x16mm
-
High Quality 620 GXX Eccentric Cylindrical Roller Bearing 620 GXX
Product Description
Product Description
Product name | Kaydon Thin Section Ball Bearing KA020AR0 |
Application | Robot Using Bearing |
Material | GCr15,chrome steel, stainless steel,Iron |
Payment Item | T/T ,Western Union , Paypal ,Credit card |
Delivery time | 3-10day |
Guarantee | One and a half years |
Open Reali-Slim Bearing Selections.
A deep groove bearing with reduced shoulder on one side of inner or outer race ball path. Snap-over assembly permits use of a one-piece circular pocket ring separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact angle. Stock bearings are individual units and when purchased as such must be adjusted at installation to desired running clearance or preload.
Bearing Numbers
KAYDON Bearing Number | Dimensions in Inches | ||||||||
Size | Land Diameters | ||||||||
Bore | Outside Dia | L1 | L2 | C’Bore L3 | |||||
KA020AR0 | 2 | 2.5 | 2.186 | 2.314 | 2.369 | ||||
KA025AR0 | 2.5 | 3 | 2.686 | 2.814 | 2.869 | ||||
KA030AR0 | 3 | 3.5 | 3.186 | 3.314 | 3.367 | ||||
KA035AR0 | 3.5 | 4 | 3.686 | 3.814 | 3.867 | ||||
KA040AR0 | 4 | 4.5 | 4.186 | 4.314 | 4.367 | ||||
KA042AR0 | 4.25 | 4.75 | 4.436 | 4.564 | 4.615 | ||||
KA045AR0 | 4.5 | 5 | 4.686 | 4.814 | 4.865 | ||||
KA047AR0 | 4.75 | 5.25 | 4.936 | 5.064 | 5.115 | ||||
KA050AR0 | 5 | 5.5 | 5.186 | 5.314 | 5.365 | ||||
KA055AR0 | 5.5 | 6 | 5.686 | 5.814 | 5.863 | ||||
KA060AR0 | 6 | 6.5 | 6.186 | 6.314 | 6.363 | ||||
KA065AR0 | 6.5 | 7 | 6.686 | 6.814 | 6.861 | ||||
KA070AR0 | 7 | 7.5 | 7.186 | 7.314 | 7.361 | ||||
KA075AR0 | 7.5 | 8 | 7.686 | 7.814 | 7.861 | ||||
KA080AR0 | 8 | 8.5 | 8.186 | 8.314 | 8.359 | ||||
KA090AR0 | 9 | 9.5 | 9.186 | 9.314 | 9.357 | ||||
KA100AR0 | 10 | 10.5 | 10.186 | 10.314 | 10.355 | ||||
KA110AR0 | 11 | 11.5 | 11.186 | 11.314 | 11.353 | ||||
KA120AR0 | 12 | 12.5 | 12.186 | 12.314 | 12.349 | ||||
