Tapered Roller Bearing TBU130X230X160 Railway Bearing TBU130X230X150
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Railway Bearing TBU150X250X160 Tapered Roller Bearing CTBU150X250X160
-
High Precision Linear Bearing LMT8UU
-
Motor Bearing Price List Bearing Linear Bearing LM8UU
-
Hiwin Linear Guides MGN7 MGN7C Linear Guide Motion Bearing For 3D printer
-
LM 81524UU IKO Bearing Linear Bearing Bushing LM81524UU
-
Linear Slide Bearing SBR30 Linear Guide Rail SBR30
Product Description
Product Description
Product Name | TBU130X230X160 Railway Bearing TBU130X230X150 |
Size | 130X230X160mm |
Sample | Available |
Clearance | C1,C2,C0, C3,C4,C5 |
Stock | Rich |
Feature | Long work lift exceed 5 years |

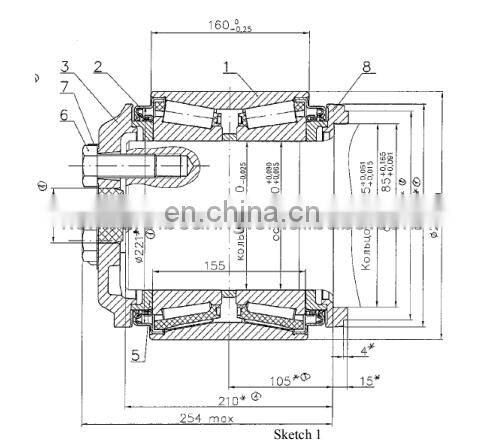

Number | Name | Number | Name |
1 | Bearing | 4.5 | Compensation ring |
2 | Sealing | 7 | Lock washer |
3 | Front bearing cover | 8 | Rear thrust ring |
Specification
Tapered Roller Bearing Units (TBU).
Tapered roller bearing units are based on sealed and factory pre-lubricated bearing units that are ready for installation. Main technical features:
* Optimum design of raceway micro-geometry
* Optimized design of roller ball base surface and inner ring rib contact surface
* The roller adopts logarithmic curve profile to effectively prevent edge stress
* Safe and reliable plastic-steel cage
Benefits to customers.
* High safety and reliability * Low energy consumption * Convenient press fitting * Low life cycle cost
Bearing Numbers
Specification | Model Number | d mm | D mm | B mm | C mm |
TBU 120x195x131.35 | 1639609 DE | 120 | 195 | 126 | 131.35 |
TBU 130x230x150 | 197726 | 130 | 230 | 150 | 150 |
TBU 130x230x160 | BT2-8546 | 130 | 230 | 150 | 160 |
TBU 150x250x160 | 353130-2RS | 150 | 250 | 154.5 | 160 |
CTBU 130x230x150 | BT2-8670-01 | 130 | 230 | 166.35 | 150 |
CTBU 130x230x160 | BT2-8671 | 130 | 230 | 176.35 | 160 |
CTBU 150x250x160 | 353130B | 150 | 250 | 180.6 | 160 |
CTBU 150x250x160 | BT2-8720 BD | 150 | 250 | 180.6 | 160 |
Class C (5″x9″) | BT2-8735 BB | 119.008 | 195.263 | 36.525 | 142.875 |
Class D (5 1/2″xlO”) | BT2-8547 BB | 131.775 | 207.963 | 146.75 | 152.4 |
Class E(6″xll”) | BT2-8516 BB | 144.475 | 220.663 | 155.575 | 163.51 |
Class F (6 1/2″x12″) | BT2-8612 BB | 157.175 | 252.413 | 177.8 | 184.15 |
CTBU Class K (6 1/2″x9″) | BT2-8606 | 157.175 | 250 | 180.6 | 160 |
CTBU 150x260x160 | 150 | 260 | 180.6 | 160 | |
CTBU 160x270x170 | 160 | 270 | 195 | 170 |
Company Profile
Kenworth Machinery Equipment International Co.,Ltd.
————Professional Manufacturer————
Why choose us?
* Reliable International company
* Contact us 24 hours a day
* Fast and flexible shipping options
* No order too big or small
* Only authentic parts from trusted manufacturers
* Fast and flexible shipping options
* No order too big or small
* Only authentic parts from trusted manufacturers
Trusted Manufacturers
We supply full model metric sizeTBU&CTBU
series and inch sizeB(4*8),C(5*9), D(51/2*10),E(6*11),F(61/2*12), G(7*12),GG(7)series railway freight car bearings and all bearings components including seals,ring,cap,locking plate,grease. We also supply railwaylocomotive bearing.
Packing & Delivery
1.Individual Package+Cartons
2.Individual Package+Cartons+Pallets
