Hot Sale PYD 600 PYZ 900 PYB1200 PYZ1200 PYD1750 Rock Stone Spring Cone Crusher

Name: Hot Sale PYD 600 PYZ 900 PYB1200 PYZ1200 PYD1750 Rock Stone Spring Cone Crusher
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Type:	Cone Crusher
Certification:	ISO9001-2008 international quality management system certification and European CE certification	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 months
Application:	stone,ore,coal,sand	Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	20-300 T/H

Product Description

Hot Sale PYD 600 PYZ 900  PYB1200 PYZ1200 PYD1750 Rock Stone Spring Cone Crusher

Spring cone crusher is applied to process above medium hardness ore stone and rock. Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. This type of crushing chamber depends upon the purpose of mineral. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to hyper fine crushing. Spring cone crusher is widely applied in metallurgy, construction. Spring cone crusher is applied for processing above medium hardness ore and rock and widely used in metallurgy, construction, hydropower, transportation, chemical and building materials industry with many advantages like reliable structure, high capacity, easy adjustment and low cost,etc.

STRUCTURE CHARACTERISTICS

Large-diameter spindle and heavy main frame give a guarantee on the durability and reliability of this spring cone crusher machine to the operator.

Adopting dilute petrol stations for continuous lubrication reduces downtime and maintenance time.

All the parts can be disassembled from the sides or top, which is convenient to disassemble the stable and movable cones.

FEATURES AND ADVANTAGES
High capacity and superior quality;

Key components are made of special materials to support large crushing force;

The unique dustproof sealing structure prolongs the replacement cycle of lubricating oil and the service life of parts.

 All models are available to be fitted with crushing cavities of extra fine, fine, medium, or coarse crushing process.

Stable performance, low operating cost and less power consumption.

PRODUCT PARAMETERS

Model	Diameter of Bottom End of Conical Crushing Head(mm)	Max Feeding Size(mm)	Adjustable Range of Discharge Opening (mm)	Capacity (t/h)	Motor Power (kw)	Rev.of Eccentric Shaft (r/min)	Weight (t)	Dimension (L×W×H)(mm)
PYB600	Φ600	75	12-15	20-40	8P-30	356	5	2234×1370×1675
PYD600	Φ600	35	3-13	12-23	8P-30	356	5.5	2234×1370×1675
PYB900	Φ900	115	15-50	50-90	8P-55	333	11.2	2692×1640×2350
PYZ900	Φ900	60	5-20	20-65	8P-55	333	11.2	2692×1640×2350
PYD900	Φ900	50	3-13	15-50	8P-55	333	11.3	2692×1640×2350
PYB1200	Φ1200	145	20-50	110-168	8P-110	300	24.7	2790×1878×2844
PYZ1200	Φ1200	100	8-25	42-135	8P-110	300	25	2790×1878×2844
PYD1200	Φ1200	50	3-15	18-105	8P-110	300	25.3	2790×1878×2844
PYB1750	Φ1750	215	25-50	280-480	8P-160	245	50.3	3910×2894×3809
PYZ1750	Φ1750	185	10-30	115-320	8P-160	245	50.3	3910×2894×3809
PYD1750	Φ1750	85	5-13	75-230	8P-160	245	50.2	3910×2894×3809
PYB2200	Φ2200	300	30-60	590-1000	8P-(260-280)	220	80	4622×3302×4470
PYZ2200	Φ2200	230	10-30	200-580	8P-(260-280)	220	80	4622×3302×4470
PYD2200	Φ2200	100	5-15	120-340	8P-(260-280)	220	81.4	4622×3302×4470

Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

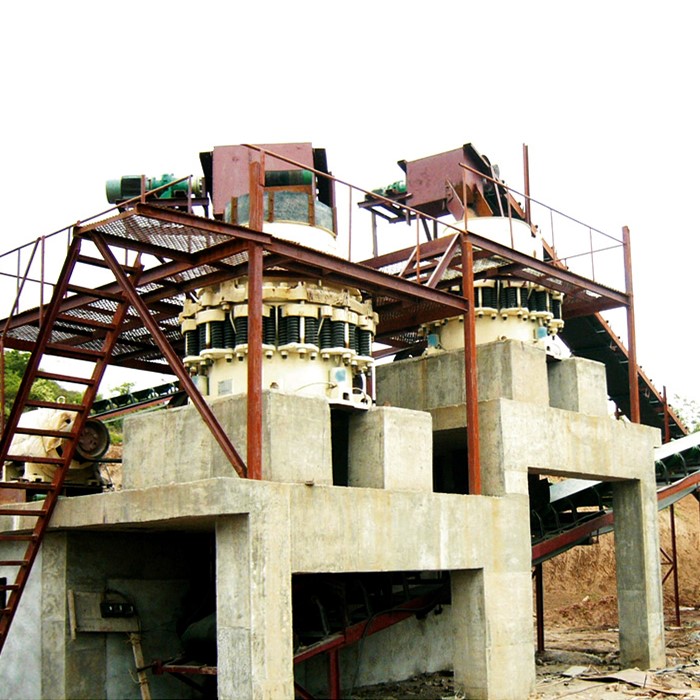

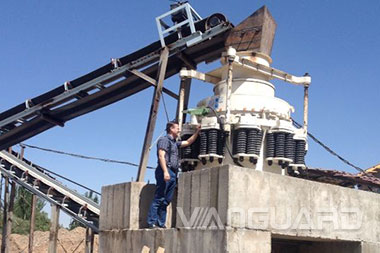

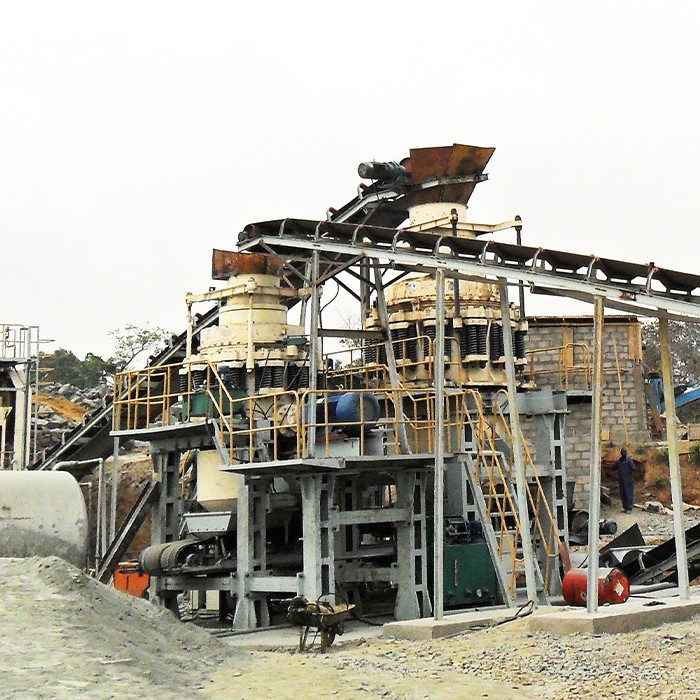

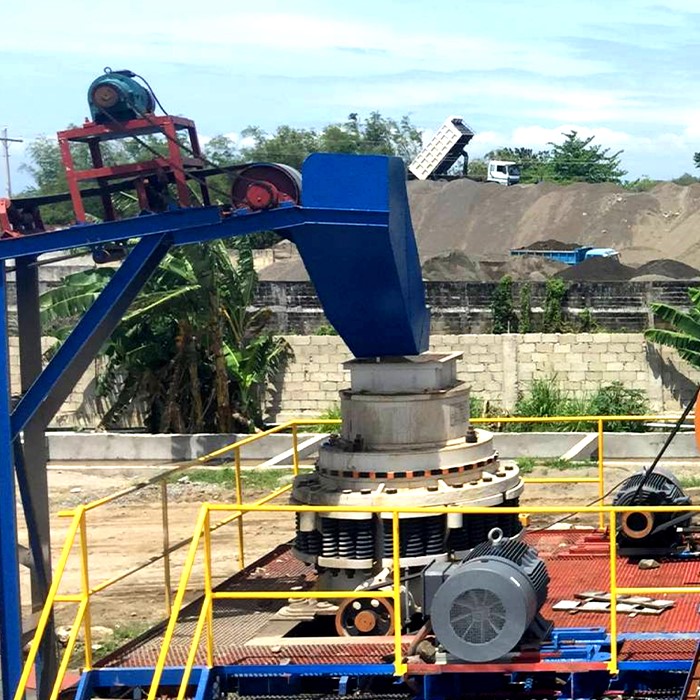

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get best service at lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most  suitable proposal based on raw materials.

Q4:  Why shoule I choose VANGUARD Machinery?
A: Ⅰ. Professional manufacturer of supplying mining crushing equipment, stone grinding equipment, ore beneficiation equipment etc.
Ⅱ. Experienced and professional R&D team and manufacturing team;
Ⅲ. We have a group of experienced and excellent after-sales service members who provide services for worldwide customers.
Ⅳ.All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Ⅴ. Contact us for more details about price, packing, shipping and discount.
