Home > Products > other bearing > SBB52-2RS IKO Inch Spherical Plain Bearings SBB 52 2RS 82.55x130.175x72.24x61.9 mm

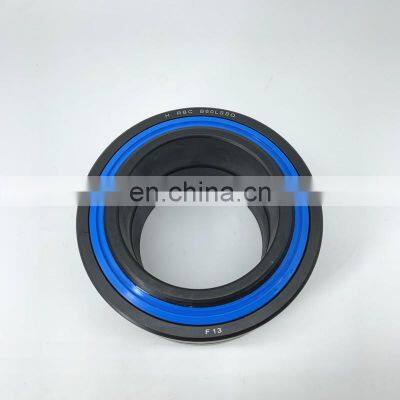

SBB52-2RS IKO Inch Spherical Plain Bearings SBB 52 2RS 82.55x130.175x72.24x61.9 mm
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
B56LSS Q RBC Inch Spherical Plain Bearings B56LSS 3 1/2\" ID x 5 1/2\" OD x 3 1/16\" Inner Ring Width, 2 5/8\
-
GEZ88ES-2RS GEZ88ES RBC S-K-F Spherical Plain Bearings GEZ 88 ES Size 88.9x139.7x77.77x66.68 mm
-
GEZ308ES-2LS Spherical Plain Bearing GEZ88ES-2RSGEZ88ES GEZ308ES-2RS
-
SBB56-2RS IKO Spherical Plain Bearings 88.9x139.7x77.77x66.68
-
GEZ95ES-2RS GEZ95ET-2RS RBC Spherical Plain Bearing GEZ312ES
-
GEZ312ES-2RS GEZ312ES-2LS Sweden Spherical Plain Bearings Size 95.25x149.225x83.337x71.425
Product Description
Product Description
SBB52-2RS RBC Radial spherical plain bearings 82.55x130.175x72.24x61.9
Bearing number : SBB52-2RS
Size (mm) : 82.55x130.175x72.24x61.9
Brand : IKO
Bore Diameter (mm) : 82.55
Outer Diameter (mm) : 130.175
Width (mm) : 61.9
Bearing number : SBB52-2RS
Size (mm) : 82.55x130.175x72.24x61.9
Brand : IKO
Bore Diameter (mm) : 82.55
Outer Diameter (mm) : 130.175
Width (mm) : 61.9
Bearing dimensions and specification in IKO catalogue:
Weight - 4 Kg
Weight - 4 Kg
RBC Spherical Plain Bearing B56LSSQ B56LSS Q
Spherical plain bearings are appropriate for bearing arrangements where alignment movements between the shaft and housing have to be accommodated, or where oscillating or recurrent tilting must be allowed at comparatively slow sliding speeds.
The inner and outer rings are made of steel and are manganese-phosphated. The sliding contact surfaces are treated with a running-in lubricant which reduces friction and wear during the running-in period.
These bearings have a permissible operating temperature range of -30 to +130°C. However, if temperatures reach above +120°C, their load carrying capacity will be reduced. Please note appropriate temperature grease will have to be used.
Steel against steel
Requires maintenance
Rubber seals on both sides
bearing name | SBB52-2RS Spherical Plain Bearing rbc |
Material : | bearing : chrome steel |
B | 82.55 mm |
D | 130.175 mm |
B | 72.24 mm |
C | 61.9 mm |
Weight | 4 kg |
email | lbc001 at |
Tel/ whatsapp | +86-18753110215 |
Related Products
Detailed Images
SBB52-2RS RBC Spherical Plain Bearing SBB52 SBB 52-2RS
No. | Designation | d mm | D mm | B mm | C mm | Dynamic | Static | Weight |
load | load | (Kg) | ||||||
(KN) | (KN) | |||||||
1 | PB5 | 5 | 16 | 8 | 6 | 3.3 | 7.8 | 0.009 |
2 | PB6 | 6 | 18 | 9 | 6.75 | 4.3 | 9.8 | 0.013 |
3 | PB8 | 8 | 22 | 12 | 9 | 6.8 | 16 | 0.024 |
4 | PB10 | 10 | 26 | 14 | 10.5 | 10 | 23 | 0.039 |
5 | PB12 | 12 | 30 | 16 | 12 | 13 | 31 | 0.058 |
6 | PB14 | 14 | 34 | 19 | 13.5 | 17 | 40 | 0.084 |
7 | PB16 | 16 | 38 | 21 | 15 | 21 | 50 | 0.111 |
8 | PB18 | 18 | 42 | 23 | 16.5 | 26 | 61 | 0.16 |
9 | PB20 | 20 | 46 | 25 | 18 | 31 | 73 | 0.21 |
10 | PB22 | 22 | 50 | 28 | 20 | 38 | 88 | 0.26 |
11 | PB25 | 25 | 56 | 31 | 22 | 47 | 110 | 0.39 |
12 | PB28 | 28 | 62 | 35 | 25 | 59 | 138 | 0.53 |
13 | PB30 | 30 | 66 | 37 | 25 | 63 | 148 | 0.61 |
Main Products
Certifications
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
