Product Description
Product Description

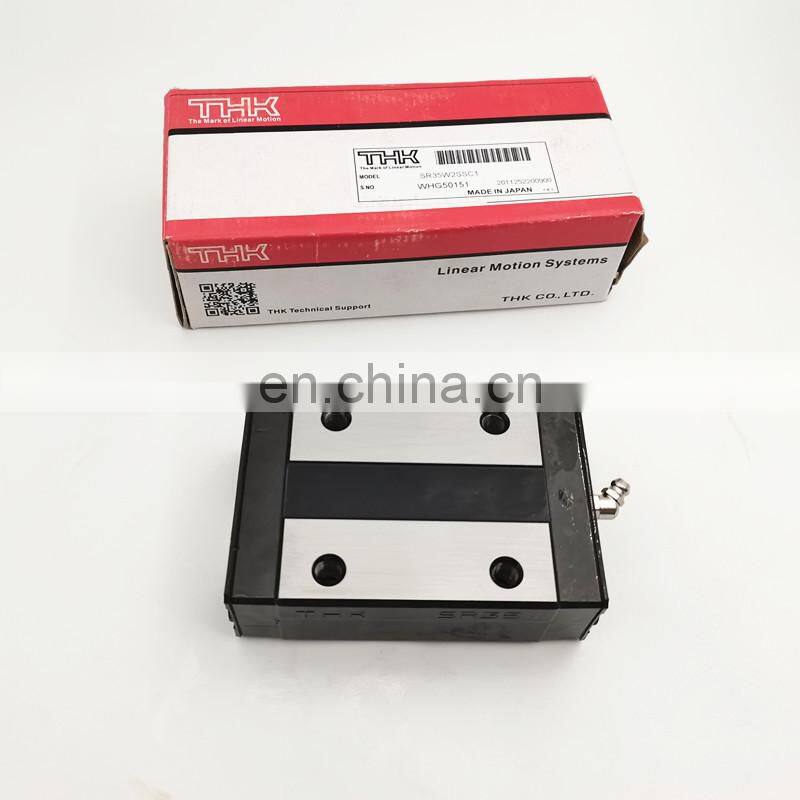

Original THK SR35W2SSC1 Linear Guide Slide Block SR35W1SS SR35W2SS SR35W
Model: SR35W2SSC1
Shipping Weight:1200g
50 Units in Stock
Manufactured by: THK
HSR series linear guides are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial,reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HSR series linear guides can achieve a long life with high speed, high accuracy and smooth linear motion.
THK linear guide suffix meaning: that seal are:. UU, SS, DD, ZZ, KK, GG, PP, SSHH, DDHH, ZZHH, KKHH "QZ" indicates
self-lubricating series. "C0" radial preloading, "C1" radial preloading, "M1" indicates high temperatures.
Accuracy grade: Normal grade (No symbol), H (High), P (precision), SP (super precision), UP (ultra precision).
THK linear guide suffix meaning: that seal are:. UU, SS, DD, ZZ, KK, GG, PP, SSHH, DDHH, ZZHH, KKHH "QZ" indicates
self-lubricating series. "C0" radial preloading, "C1" radial preloading, "M1" indicates high temperatures.
Accuracy grade: Normal grade (No symbol), H (High), P (precision), SP (super precision), UP (ultra precision).

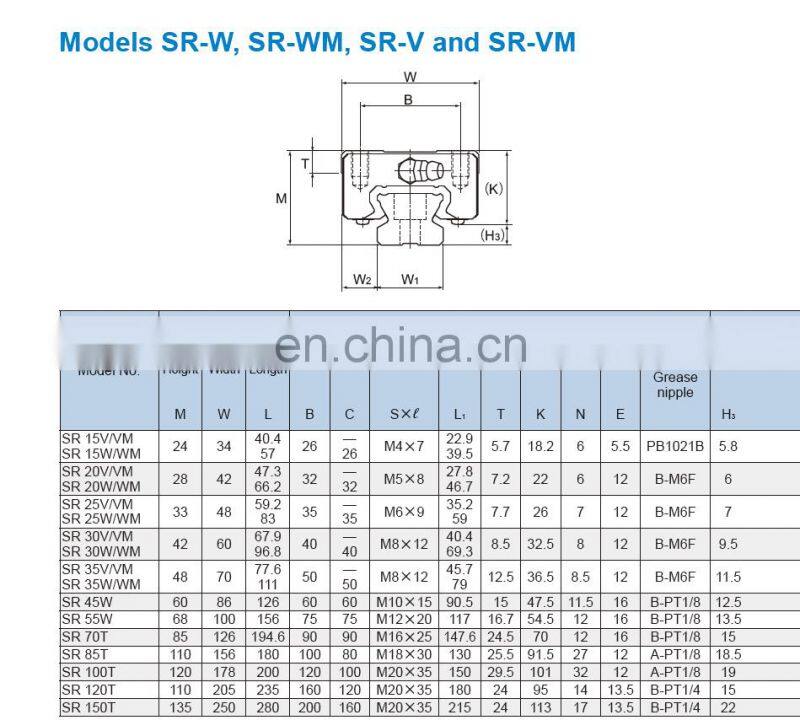

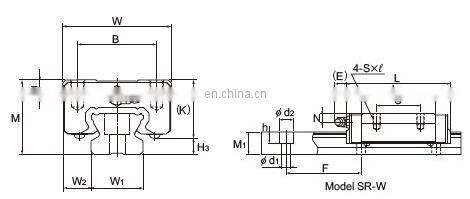

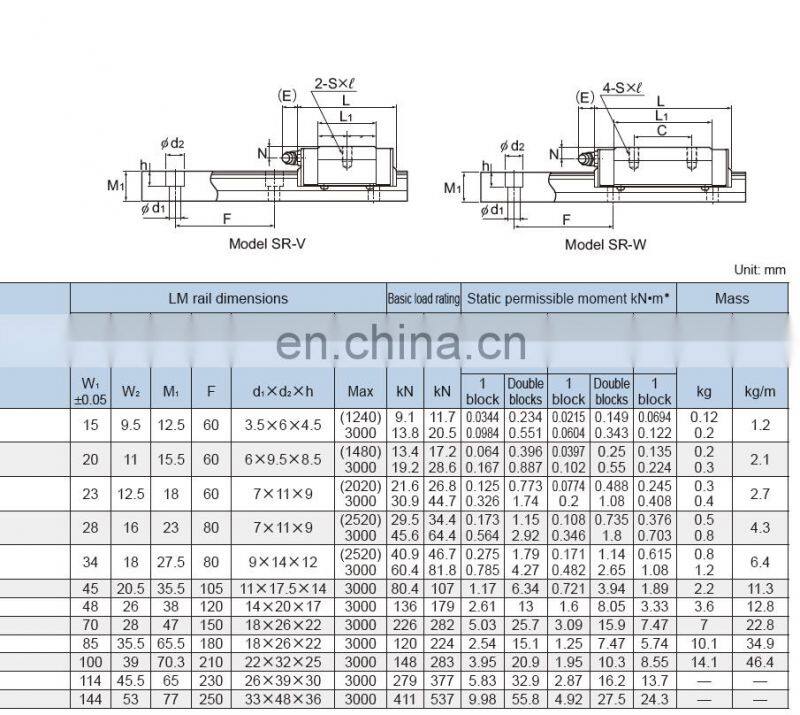

Original THK SR35W Linear Guide Slide Block SR35W2SSC1 SR35W1SS SR20W1UU
Model | Outer dimensions | Block dimensions | Rail dimensions | ||||||||||
Height M | Width W | Length L | B | C | S x l | Pitch F | d1xd2xh | ||||||
mm | mm | mm | mm | mm | mm | mm | mm | ||||||
SR15W | 24 | 34 | 57 | 26 | 26 | M4 x 7 | 60 | 3.5x6x4.5 | |||||
SR20W | 28 | 42 | 66.2 | 32 | 32 | M5 x 8 | 60 | 6×9.5×8.5 | |||||
SR25W | 33 | 48 | 83 | 35 | 35 | M6 x 9 | 60 | 7x11x9 | |||||
SR30W | 42 | 60 | 96.8 | 40 | 40 | M8 x 12 | 80 | 7x11x9 | |||||
SR35W | 48 | 70 | 111 | 50 | 50 | M8 x 12 | 80 | 9x14x12 | |||||
SR45W | 60 | 86 | 126 | 60 | 60 | M10 x 15 | 105 | 11×17.5×14 | |||||
SR55W | 68 | 100 | 156 | 75 | 75 | M12 x 20 | 120 | 14x20x17 | |||||
Related Products
Main Products
Certifications
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
