THK RE slewing bearing RE8016 Thin-section structure cross roller bearing RE8016

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

THK slewing bearing RE8016 Thin-section structure high precision cross roller bearing RE series RE8016

odel number RE8016 crossed roller bearing

Inner ring:(mm)80

Outer ring:(mm)120

Width(mm):16

Weight(Kg:):0.74

Materials:GCR15/GCR15SiMn
Precision:P5/P4/P2

Lubrication:Grease lubrication

Rotating part:Outer Ring Rotation

Load direction:Multi-load

Structure :Separable Inner Ring

Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar. because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.

Bearing Model	RE8016 Crossed Roller Bearing
Application	robots
Type	tapered Crossed Roller Bearing
Structure	Separable Outer Ring Cross Roller Bearing
(dxDxB)	80x120x16 mm
Mass /	0.74 KG
Lead Time	Within 3 Days
Contact	sara
WhatsApp / Webchat	+86 18710180456
E	sales1 at

THK Cross-Roller Ring bearing RE6013 RE7013 RE8016 RE9016 RE10016 RE10020 RE11012 RE11015 Bearing

Cross roller bearing Turntable Slewing Bearing RE8016

Recommend Products

tapered roller bearing feature:
Cross tapered roller bearings are composed of two rows of bearing tracks that are perpendicular to each other and a group of tapered rollers that are arranged at 90 ° to each other. The rollers are separated by nylon spacers to prevent the tilting and friction of the rollers. And reduces the rotating torque, thus it can bear combined loads such as radial load, axial load and multi-direction loads.

RE4010、 RE4510、 RE5013、 RE6013、 RE7013、 RE8016
RE9016、RE10016、RE10020、RE11012、RE11015、RE11020
RE12016、RE12025、RE13015、RE13025、RE14016、RE14025
RE15013、RE15025、RE15030、RE16025、RE17020、RE18025
RE19025、RE20025、RE20030、RE20035、RE22025、RE24025

RE25025、RE25030、RE25040、RE30025、RE30035、RE30040
RE35020、RE40035、RE40040、RE45025、RE50025、RE50040
RE50050、RE60040

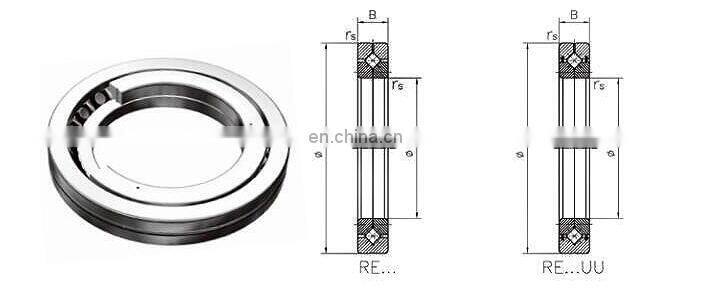

轴承型号 Designation	外形尺寸 Dimensions(mm)							额定负荷 Basic Load ratings(KN)	重量 Weight
轴承型号 Designation		d	D	B	rsmin	Cr	Cor	kg
RE2008	20	36	8	0.5	3.23	3.1	0.04
RE2508	25	41	8	0.5	3.63	3.83	0.05
RE3010	30	55	10	0.6	7.35	8.36	0.12
RE3510	35	60	10	0.6	7.64	9.12	0.13
RE4010	40	65	10	0.6	8.33	10.6	0.15
RE4510	45	70	10	0.6	8.62	11.3	0.17
RE5013	50	80	13	0.6	16.7	20.9	0.29
RE6013	60	90	13	0.6	18	24.3	0.33
RE7013	70	100	13	0.6	19.4	27.7	0.38
RE8016	80	120	16	0.6	30.1	42.1	0.74

RE9016	90	130	16	1	31.4	45.3	0.81
RE10016	100	140	16	1	31.7	48.6	0.83
RE10020	100	150	20	1	33.1	50.9	1.45
RE11012	110	135	12	0.6	12.5	24.1	0.4
RE11015	110	145	15	0.6	23.7	41.5	0.75
RE11020	110	160	20	1	34	54	1.56
RE12016	120	150	16	0.6	24.2	43.2	0.72
RE12025	120	180	25	1.5	66.9	100	2.62
RE13015	130	160	15	0.6	25	46.7	0.72
RE13025	130	190	25	1.5	69.5	107	2.82
RE14016	140	175	16	1	25.9	50.1	1
RE14025	140	200	25	1.5	74.8	121	2.96
RE15013	150	180	13	0.6	27	53.5	0.68
RE15025	150	210	25	1.5	76.8	128	3.16
RE15030	150	230	30	1.5	100	156	5.3
RE16025	160	220	25	1.5	81.7	135	3.14
RE17020	170	220	20	1.5	29	62.1	2.21
RE18025	180	240	25	1.5	84	143	3.44
RE19025	190	240	25	1	41.7	82.9	2.99
RE20025	200	260	25	2	84.2	157	4
RE20030	200	280	30	2	114	200	6.7
RE20035	200	295	35	2	151	252	9.58
RE22025	220	280	25	2	92.3	171	4.1
RE24025	240	300	25	2.5	68.3	145	4.5
RE25025	250	310	25	2.5	69.3	150	4.97
RE25030	250	330	30	2.5	126	244	8.1
RE25040	250	355	40	2.5	195	348	14.8
RE30025	300	360	25	2.5	76.3	178	5.88
RE30035	300	395	35	2.5	183	367	13.4
RE30040	300	405	40	2.5	212	409	17.2
RE35020	350	400	20	2.5	54.1	143	3.9
RE40035	400	480	35	2.5	156	370	14.5
RE40040	400	510	40	2.5	241	531	23.5
RE45025	450	500	25	1	61.7	182	6.6
RE50025	500	550	25	1	65.5	201	7.3
RE50040	500	600	40	2.5	239	607	26
RE50050	500	625	50	2.5	267	653	41.7
RE60040	600	700	40	3	264	721	30.6
