Home > Products > Angular Contact Ball Bearing > Precision Angular Contact Ball Bearing ABEC7 New Genuine NSK 7005CTYNSULP4 7005CTYNDULP4

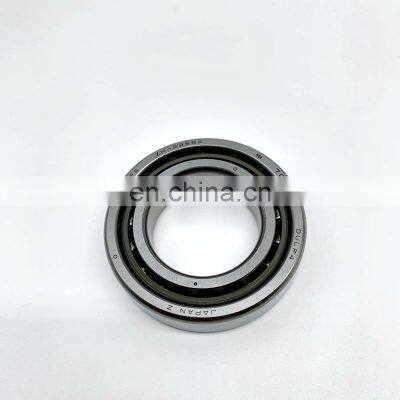

Precision Angular Contact Ball Bearing ABEC7 New Genuine NSK 7005CTYNSULP4 7005CTYNDULP4

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

7005CTYNDBLP5 7005CTYNDULP4 NSK precision bearing 7005CTYNSULP4 Precision angular contact ball bearing

High Precision Angular Contact Ball Bearings 7005CTYNSULP4

Features

Single-row angular contact ball bearings have a line connecting the contact points drawn in the radial direction, which is called the contact angle. The contact angle makes this bearing suitable for accommodating radial loads, single direction axial loads, and a combination of both. Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triplex sets, quadruplex sets, or multiplex sets.

Miniature Series, BSA Series for Ball Screw Support

79 Series

70 Series

72 Series

Bearing Model	7005CTYNSULP4 7005C TYNDULP4
Application	Machine Tool
Type	15° Ball Screw Support Ball Bearing
Structure	Angular Contact Thrust Ball Bearing
(dxDxB)	25x47x12 mm
Weight	0.08 KG
Lead Time	Within 3 Days
Contact	jessi (Ms)
SKYPE	tradingbearing
WhatsApp / Webchat	+86 18753110215
Email	lbc001 at

Detailed Images

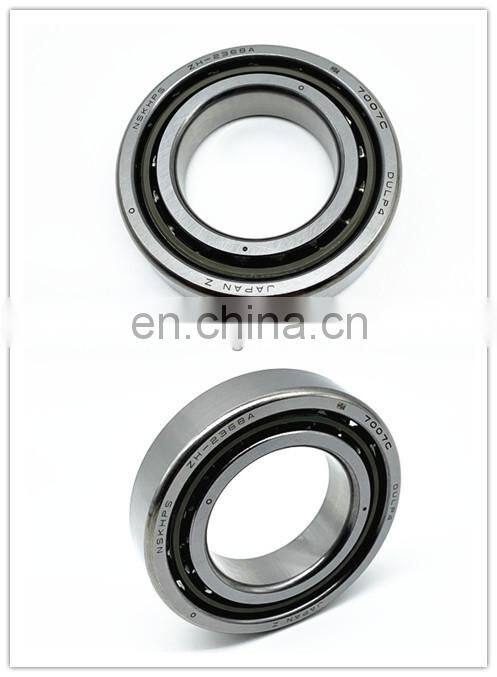

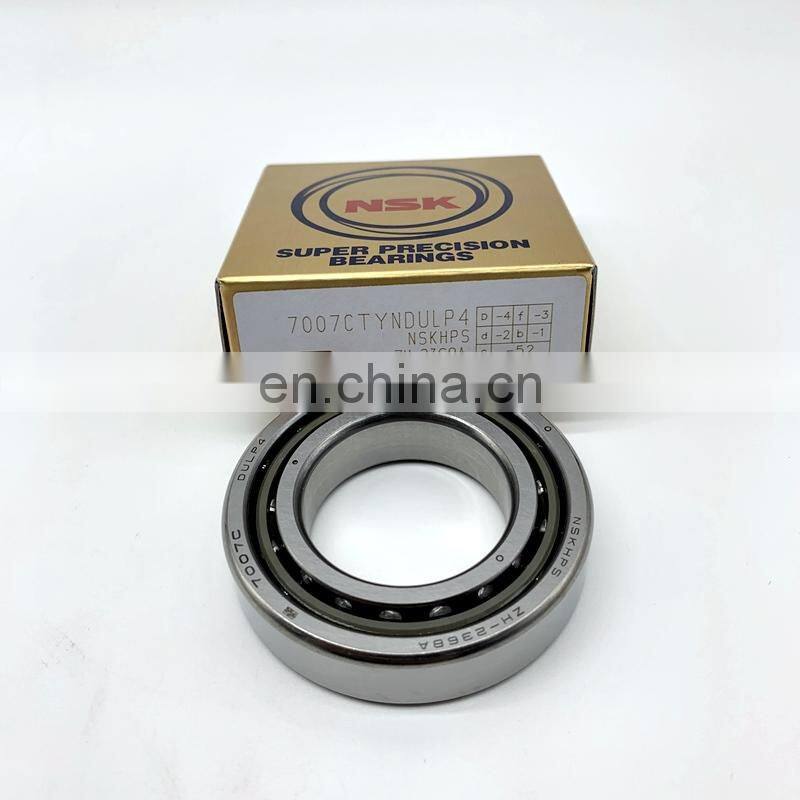

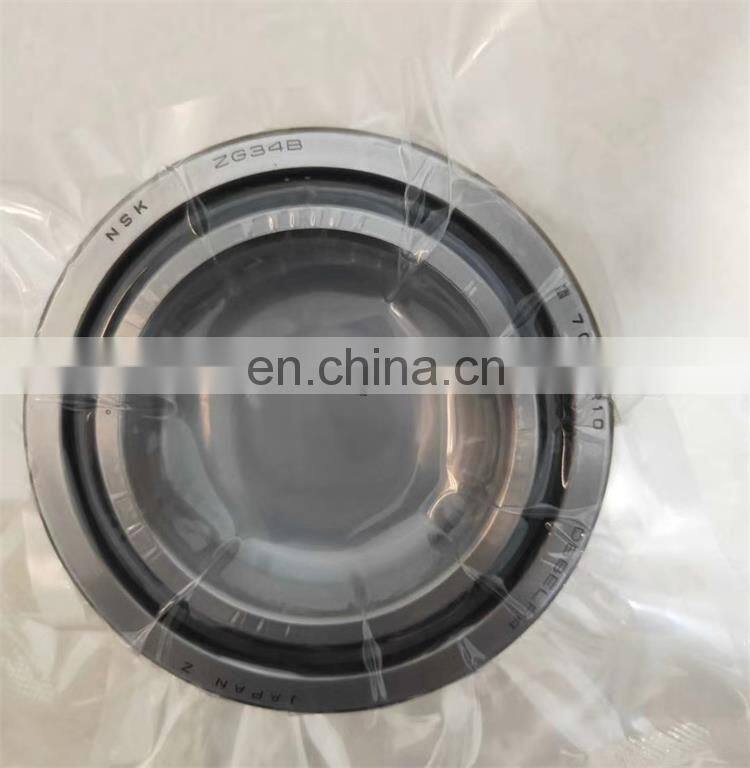

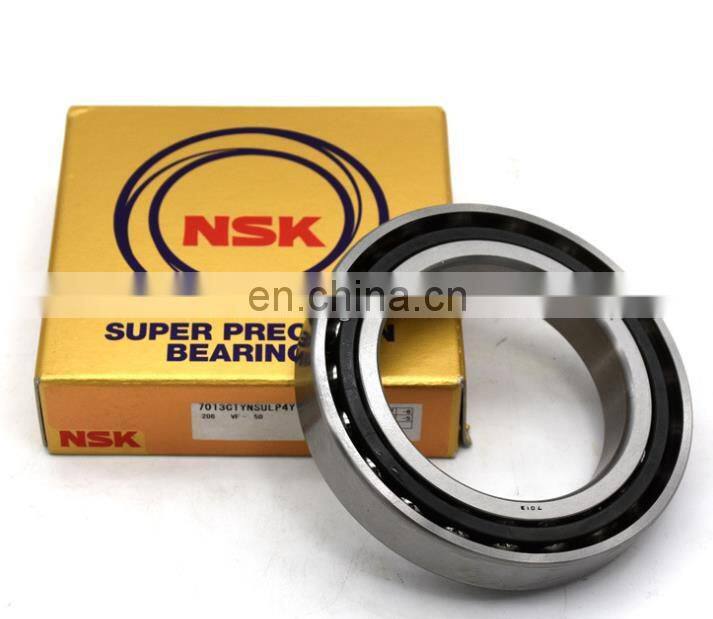

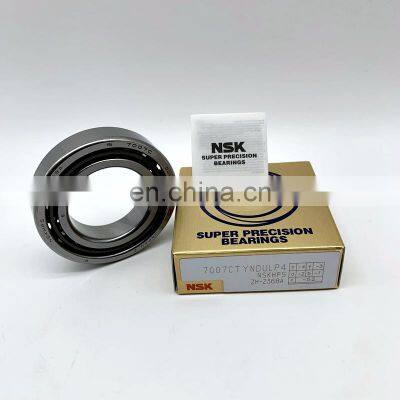

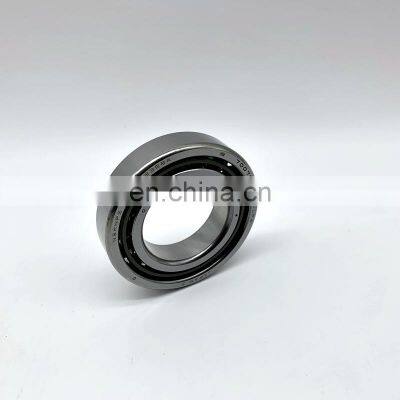

NSK 7005CTYNSULP4 Angular Contact Ball Bearings P4 Super precision Bearings 7005C Photos reference :

NSK precision bearing 7005CTYNSULP4 7005CTYNDBLP5 7005CTYNDULP4 series numbering system

NSK Precision bearing 7005CTYNSULP4 7005CTYNDBLP5 7005CTYNDULP4 model series :

Bearing	Boundary Dimensions mm					Mass (K0) (approx)	Limiting Speeds (2)
	d	D	B		Grease		Oil
	d	D	B		Grease		Oil
7000C	10	26	8	0.019	63 900	97 300
7000A5	10	26	8	0.019	55 600	83 400
7000A	10	26	8	0.019	41 700	55 600
7001C	12	28	8	0.021	57500	87 500
7001A5	12	28	8	0.021	50000	75000
7001A	12	28	8	0.021	37 500	50000
7002C	15	32	9	0.03	49 000	74 500
7002A5	15	32	9	0.03	42 600	63 900
7002A	15	32	9	0.03	32 000	42 600
7003C	17	35	10	0.039	44 300	67 400
7003A5	17	35	10	0.04	38500	57700
7003A	17	35	10	0.04	28900	38500
7004C	20	42	12	0.067	37100	56 500
7004A5	20	42	12	0.067	32 300	48 400
7004A	20	42	12	0.068	24 200	32 300
7005C	25	47	12	0.078	32000	46700
7005A5	25	47	12	0.077	27 800	41 700
7005A	25	47	12	0.079	20 900	27 800
7006C	30	55	13	0.114	27100	41 200
7006A5	30	55	13	0.114	23 600	35 300
7006A	30	55	13	0.116	17700	23 600
7007C	35	62	14	0.151	23 800	36100
7007A5	35	62	14	0.151	20700	31 000
7007A	35	62	14	0.153	15500	20 700
7008C	40	68	15	0.189	21 300	32 500
7008A5	40	68	15	0.188	18 600	27 800
7008A	40	68	15	0.191	13 900	18600
7009C	45	75	16	538	19 200	29200
7009A5	45	75	16	250	16 700	25000
7009A	45	75	16	241	12 500	16700
7010C	50	80	16	259	17 700	27 000
7010A5	50	80	16	270	15 400	23100
7010A	50	80	16	262	11 600	15400
7011C	55	90	18	380	15 900	24200
7011A5	55	90	18	383	13 800	20700
7011A	55	90	18	0^85	10 400	13800
7012C	60	95	18	0.405	14 900	22 600
7012A5	60	95	18	0.408	13 000	19400
7012A	60	95	18	0.41	9 700	13000
7013C	65	100	18	0.435	14 000	21300
7013A5	65	100	18	0.455	12 200	18200
7013A	65	100	18	0.441	9 100	12200
7014C	70	110	20	0.606	12 800	19500
7014A5	70	110	20	0.625	11 200	16700
7014A	70	110	20	0.613	8 400	11 200
7015C	75	115	20	0.643	12 200	18500
7015A5	75	115	20	0.652	10 600	15800
7015A	75	115	20	0.65	7 900	10600
7016C	80	125	22	0.855	11 300	17100
7016A5	80	125	22	0.88	9 800	14700
7016A	80	125	22	0.864	7400	9 800
7017C	85	130	22	398	10700	16300
7017A5	85	130	22	0^04	9400	14000
7017A	85	130	22	507	7000	9400
7018C	90	140	24	1.16	10000	15 300
7018A5	90	140	24	1.17	8 700	13100
7018A	90	140	24	1.18	6 600	8 700
7019C	95	145	24	1510	9600	14600
7019A5	95	145	24	1.41	8400	12500
7019A	95	145	24	1230	6300	8400
7020C	100	150	24	1270	9 200	14000
7020A5	100	150	24	1.45	8 000	12000
7020A	100	150	24	1580	6 000	8 000
7021C	105	160	26	1580	8700	13300
7021A5	105	160	26	[>820	7600	11400
7021A	105	160	26	1.6	5700	7600
7022C	110	170	28	1.94	8 300	12500
7022A5	110	170	28	2260	7200	10800
7022A	110	170	28	1.96	5400	7 200
7024C	120	180	28	2.09	7700	11700
7024 AS	120	180	28	2.43	6700	10000
7024A	120	180	28	2.12	5000	6700
7026C	130	200	33	3520	7000	10 700
7026A5	130	200	33	3.66	6100	9 100
7026A	130	200	33	3260	4 600	6 100
7028C	140	210	33	3.41	6600	10 000
7028A5	140	210	33	3^70	5800	8 600
7028A	140	210	33	3.44	4 300	5 800
7030C	150	225	35	4.15	6 200	9 400
7030A5	150	225	35	4.69	5 400	8 000
7030A	150	225	35	4.19	4 000	5 400
7032C	160	240	38	5.11	5800	8 800
7032A5	160	240	38	5.71	5000	7 500
7032A	160	240	38	5.16	3800	5 000
7034C	170	260	42	6.88	5400	8 200
7034A5	170	260	42	7.83	4 700	7 000
7034A	170	260	42	6.94	3 500	4 700
7036C	180	280	46	10.4	5000	7 700
7036A5	180	280	46	10.4	4 400	6 600
7036A	180	280	46	9570	3300	4 400
7038C	190	290	46	1120	4 800	7 300
7038A5	190	290	46	1120	4 200	6 300
7038A	190	290	46	11.3	3200	4 200
7040C	200	310	51	13.6	4600	6 900
7040A5	200	310	51	13.7	4000	5 900
7040A	200	310	51	13-70	3000	4 000

NSK Precision Ball bearings for CNC machine model series

7000 CTYNSULP4	7911 CTYNSULP4
7200 CTYNSULP4	7011 CTYNSULP4
7300 CTYNSULP4	7211 CTYNSULP4
7901 CTYNSULP4	7311 CTYNSULP4
7001 CTYNSULP4	7912 CTYNSULP4
7201 CTYNSULP4	7012 CTYNSULP4
7301 CTYNSULP4	7212 CTYNSULP4
7902 CTYNSULP4	7312 CTYNSULP4
7302 CTYNSULP4	7013 CTYNSULP4
7903 CTYNSULP4	7213 CTYNSULP4
7003 CTYNSULP4	7313 CTYNSULP4
7203 CTYNSULP4	7914 CTYNSULP4
7303 CTYNSULP4	7014 CTYNSULP4
7904 CTYNSULP4	7214 CTYNSULP4
7004 CTYNSULP4	7314 CTYNSULP4
7204 CTYNSULP4	7915 CTYNSULP4
7304 CTYNSULP4	7015 CTYNSULP4
7905 CTYNSULP4	7215 CTYNSULP4
7005 CTYNSULP4	7315 CTYNSULP4
7205 CTYNSULP4	7016 CTYNSULP4
7305 CTYNSULP4	7216 CTYNSULP4
7906 CTYNSULP4	7316 CTYNSULP4
7006 CTYNSULP4	7017 CTYNSULP4
7206 CTYNSULP4	7217 CTYNSULP4
7306 CTYNSULP4	7317 CTYNSULP4
7907 CTYNSULP4	7918 CTYNSULP4
7007 CTYNSULP4	7018 CTYNSULP4
7207 CTYNSULP4	7218 CTYNSULP4
7307 CTYNSULP4	7318 CTYNSULP4
7908 CTYNSULP4	7919 CTYNSULP4
7008 CTYNSULP4	7019 CTYNSULP4
7208 CTYNSULP4	7219 CTYNSULP4
7308 CTYNSULP4	7209 CTYNSULP4
7909 CTYNSULP4	7309 CTYNSULP4
7009 CTYNSULP4	7910 CTYNSULP4
7209 CTYNSULP4	7010 CTYNSULP4
7309 CTYNSULP4	7210 CTYNSULP4
7910 CTYNSULP4	7310 CTYNSULP4
7010 CTYNSULP4	7210 CTYNSULP4

Certifications

Main Products

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
