Product Description
Electric welding Iron/ Stainless Steel CNC Plasma Cutting Machine, CNC plasma cutter
CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.
Working area: 1200*1200mm, 1300*2500mm, 1500*3000mm, 2000*4000mm etc.
Plasma power: Huayuan 63A, 100A, 120A, 160A, 200A
Hypertherm 45A, 65A, 85A, 105A, 125A
CNC plasma cutting machine advantages:
1. Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality
2. Stability and reliability for light path system and control system
3. Humanizing design, convenient operation
4. High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed
5. The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device 6. High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly
MACHINE PARAMTER |
||
Processing area |
1300*2500mm |
|
Working thickness |
30mm |
|
Z axis feeding height |
180mm |
|
Working material |
Iron, aluminum, titanium, stainless steel and others |
|
Running speed |
0-15000mm/min |
|
Cutting speed |
0-10000mm/min |
|
Power |
10.5KW |
|
Input voltage |
380V/220V/110V |
|
Power supply frequency |
50HZ/60HZ |
|
Plasma power supply |
100A |
|
File transfer mode |
USB interface |
|
Working method |
Non contact arc |
|
Driving mode |
Gear driving |
|
Mode of motion |
Gantry driving |
|
X axis motor and drive |
JMC Stepper motor and drive |
|
Overall dimension |
2200*3300mm |
|
Ventilation system install mouth |
Double ventilation mouths |
|
Weight |
1000kg |
|
Cooling System |
DSP A12S or STARFIRE |
|
Guide rail |
Taiwan PMI linear square rail |
|
Plasma generator(power) |
Huayuan or Hypertherm plasma(USA) |
|
Plasma cutting gun |
huayuan or Hypertherm plasma cutting gun |
|
Floating cutting gun mode of motion |
Automatic and Pneumatic test |
|
System |
Beijing Start controlling system |
|
Floating adjustable block |
Beijing Start Floating adjustable block |
|
Body configuration |
Steel |
|
Table configuration |
Steel table frame iron lattice |
|
Material fixed mode |
Electrode plate |
|
processing cutting instruction |
EMG, G-code, U00, MMG, NC |
|
Machine positioning |
±0.15/300mm |
|
Standard Configurations:
1) standard working area 1300*2500mm working area
2) Beijing STARFIRE control system 63A+ARF Height Controller(Automatic Rise and Fall)
3) JMC stepper motor&driver
4) Gear rack and square rail guide transmission
5) Sawtooth table
6) Heavy duty machine body with 5mm thick square tube
7) FASTCAM software
8) Instruction of STARFIRE control system and FASTCAM software.
9)Huayuan 120A plasma Power(Optional: Hypertherm power supply)
10)Cutting Material Collection Box with wheels, for easy take out products
Optional parts:
1) Servo motor&driver(any brnad)
2) Huayuan 63A, 100A, 120A, 160A, 200A;
Hypertherm 45A, 65A, 85A, 105A, 125A
3) Water tank/Water table
4) Flat table Etc.
Detailed Images

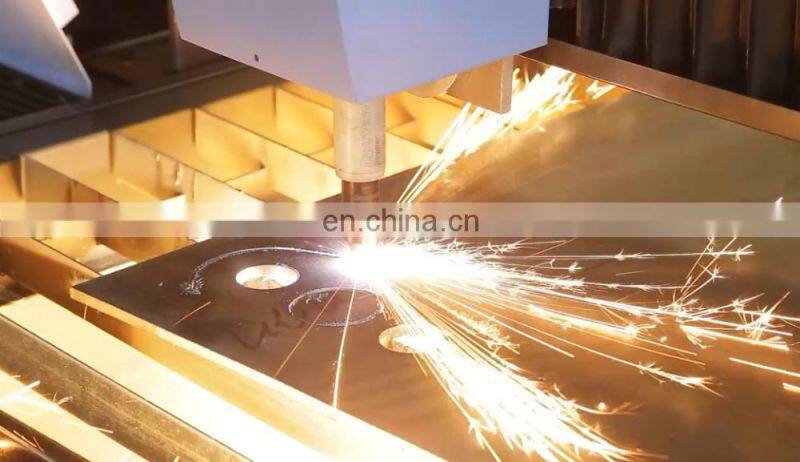

Cutting Head
UTECH Plasma Cutting High precision cutting performance and cutting speed
Power Supplier
Chinese Huayuan 63A
Optional Chinese Huayuan 63A/100A/120A/160A/200A
Control System
STARFIRE/START/FLMC-2300A/NC-Studio/DSP control system all is ok, Chinese /English /RUSSIAN/Spanish/French/Czech/Japanese/
Slovakian, etc. version for your choose, so you don't need to worry about operating problem regarding language

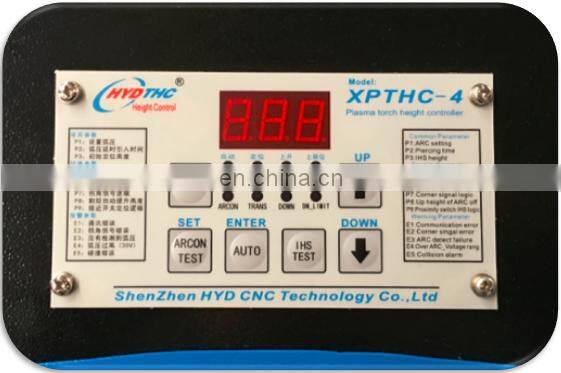

Automatic torch height controller
Automatic torch height controller
with this function, the torch can up and down with automatic regarding the sheet radian, so through your sheet is not flat, you also don't need to worry the torch will collide the sheet, then to protect the cutting torch and ensure the cutting performance
FASTCAM Nesting Software
FASTCAM Nesting software
After nest your drawing by FASTCAM nesting software ,it can make your cutting sheet in biggest usage , then it can reduce waste and save cost
Transmission Way

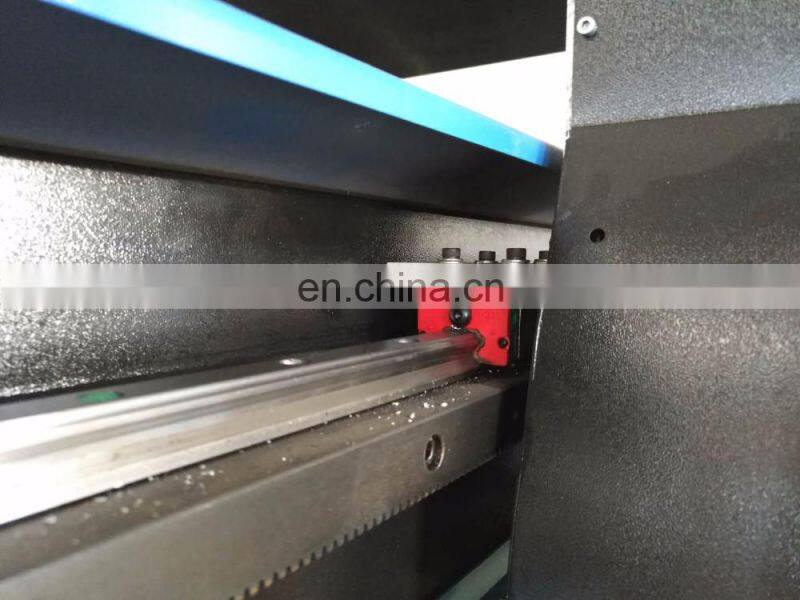

Taiwan PMI Square rail
Square rail to make machine higher precision faster cutting speed, more better cutting performance
sawtooth table
you can also choose blade table
water tank
add water tank can absorb cutting smoke, and keep clear cutting environment,water cooling to guarantee cutting performance
Optional Parts
Hypertherm 45A/65A/85A/105A/125A/200A
USA Hypertherm 105A power source can cut less than 22mm sheet , its cutting thickness same as China HUAYUAN 160A power source
Or you can contact me, I will help you choose suitable
2. Janpan Yaskawa servo
motor
it can cut more complex drawing , cutting precision is more better than step motor , and cutting is more smooth.
3. Red light position
Red light follows cutting torch , to make sure the cutting position , then confirm the cutting precision
More Function
4 Aaxis round pipe
Round pipe and sheet cutting not only can cut sheet, still can cut the round pipe and square pipe surface.
4 Axis square pipe
It can cut square and round pipe together with 4 axis control system, sheet, round pipe , square pipe, all is ok. square pipe not
only can cut pipe sheet, also can cut Angle
only can cut pipe sheet, also can cut Angle
Drilling
If your want to cut with more small hole, drilling function is the best choose, its max diameter can be 30mm
Plasma and flame cutting
add Flame cutting , you can cut thin sheet , also can cut thick sheet , more than 30mm, flame cutting is more better and economic , its max cutting thickness can be 300mm
Red light position
Red light follows cutting torch , to make sure the cutting position , then confirm the cutting precision
