1325 Gantry CNC 4 Axis Plasma Cutting Machine / Plasma Cutter / Plasma Cutter CNC Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Configuration Iron/ Stainless Steel/ Aluminum/ Copper CNC Plasma Cutting Machine, CNC PlasmaNegotiableMOQ: 1 -
Cnc Cutting Machine Portable Plasma Cnc Cutting PlasmaNegotiableMOQ: 1
-
Small 6090 60A Power Low Cost Cnc Plasma Cutting MachineNegotiableMOQ: 1
-
Cnc Plasma Cutting Machine 1325NegotiableMOQ: 1
-
Jinan 3D Plasmer Cutting Machine/Metal Plasma Cnc Steel Plasma CutterNegotiableMOQ: 1
Product Description
Plasma cutting machine is to process metal materials by means of plasma cutting technology. Plasma is a gas heated to extremely high temperature and highly ionized. It transfers arc power to the workpiece. High heat makes the workpiece melt and blow off, forming the working state of plasma arc cutting.
Its main advantages are that when cutting metal with small thickness, plasma cutting speed is fast, cutting surface is smooth, thermal deformation is small, and there is almost no heat affected zone.

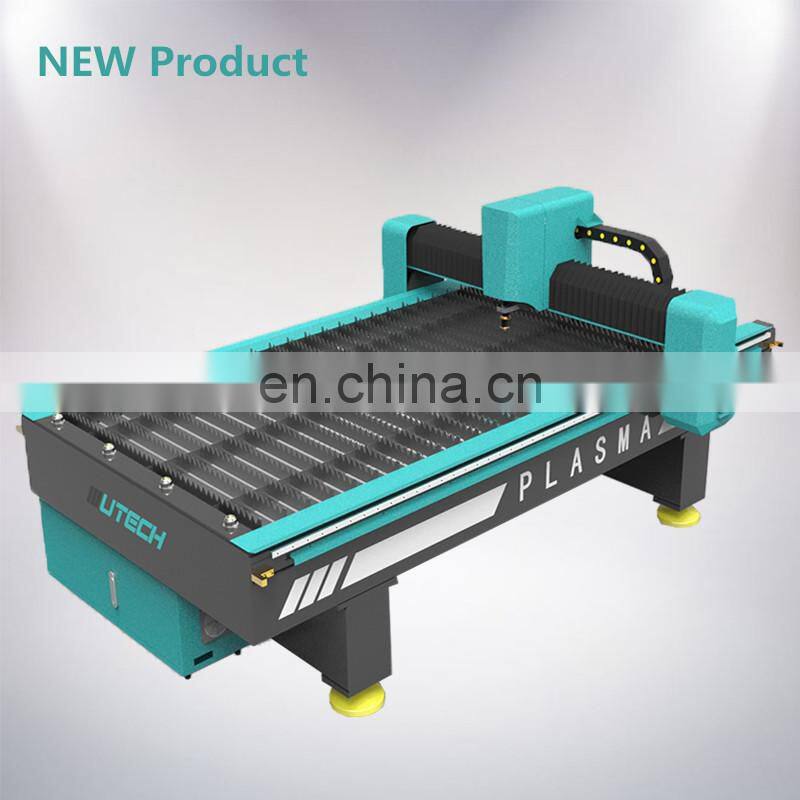

1325 Gantry CNC 4 axis plasma cutting machine / Plasma Cutter / Plasma Cutter CNC price
Processing Area |
1300*2500mm |
Working Thickness |
30mm |
Z Axis Feeding Height |
180mm |
Working Material |
Iron, aluminum, titanium, stainless steel and others |
Running Speed |
0-15000mm/min |
Cutting Speed |
0-10000mm/min |
Power |
10.5KW |
Input Voltage |
380V/220V/110V |
Power Supply Frequency |
50HZ/60HZ |
Plasma Power Supply |
63A |
File Transfer Mode |
USB Interface |
Working Method |
Non contact arc |
Driving Mode |
Gear Driving |
Mode of Motion |
Gantry Driving |
X Axis Motor and Driver |
JMC Stepper and Driver |
Overall Dimension |
2200*3300mm |
Ventilation System Install Mouth |
Double Ventilation Mouth |
Weight |
1000KG |
Control System |
DSP A12S |
Guide Rail |
Taiwan HIWIN Linear Square Rail |
Plasma Generator(Power) |
Huayuan or Hypertherm Plasma(USA) |
Plasma Cutting Gun |
Huayuan or Hypertherm Plasma Cutting Gun |
Floating Cutting Gun Mode of Motion |
Automatic and Pneumatic Test |
System |
Beijing Start Controlling System |
Floating Adjustable Block |
Beijing Start Floating Adjustable Block |
Body Configuration |
Steel |
Table Configuration |
Steel Table Frame Iron Lattice |
Material Fixed Mode |
Electrode Plate |
Processing Cuttng Instruction |
EMG, G-code, U00, MMG, NC |
Machine Positioning |
±0.15/300mm |

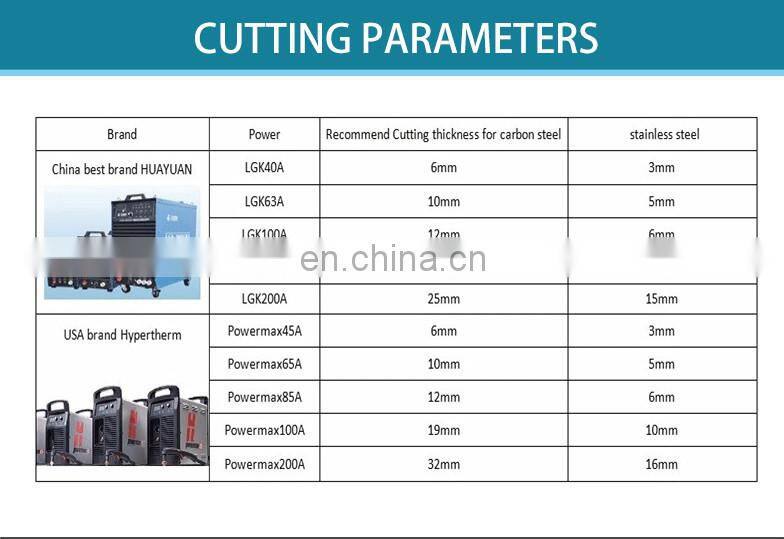

Cutting thickness:
Please Kindly tell us the Cutting Materials, the maximum working area and the cutting depth.
According to this,we suggest most suitable machine for you.
Machine Feature
1. Imported grinding grade ball screw and high precision linear guide rail, rack, with high processing precision;
2. The whole machine is equipped with patent type 1:4 reducer, which can ensure high speed and no loss of the pulse signal during machine process;
3. Compatible with multiple software: TYpe3/ArtCAM/Casmate/CAXA/Artcut etc.;
4. Industrial welded structure lathe bed, after quenching and tempering treatment, the platform and mounting hole position are processed by CNC machining center at one time to ensure machine strength and precision;
2. The whole machine is equipped with patent type 1:4 reducer, which can ensure high speed and no loss of the pulse signal during machine process;
3. Compatible with multiple software: TYpe3/ArtCAM/Casmate/CAXA/Artcut etc.;
4. Industrial welded structure lathe bed, after quenching and tempering treatment, the platform and mounting hole position are processed by CNC machining center at one time to ensure machine strength and precision;
Detailed Images
Cutting head
High precision cutting performance and cutting speed

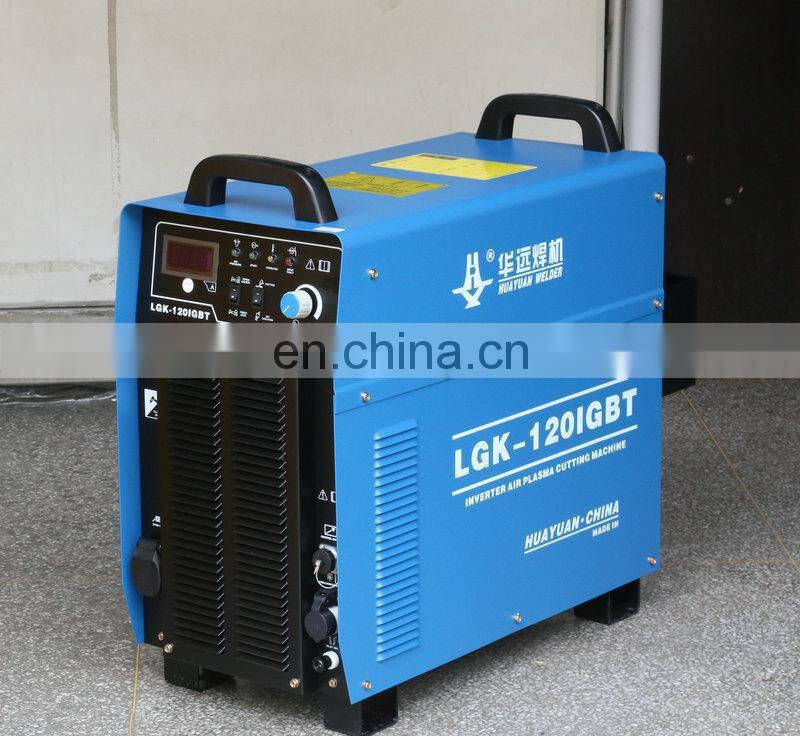

Power Supplier
Chinese Huayuan 63A

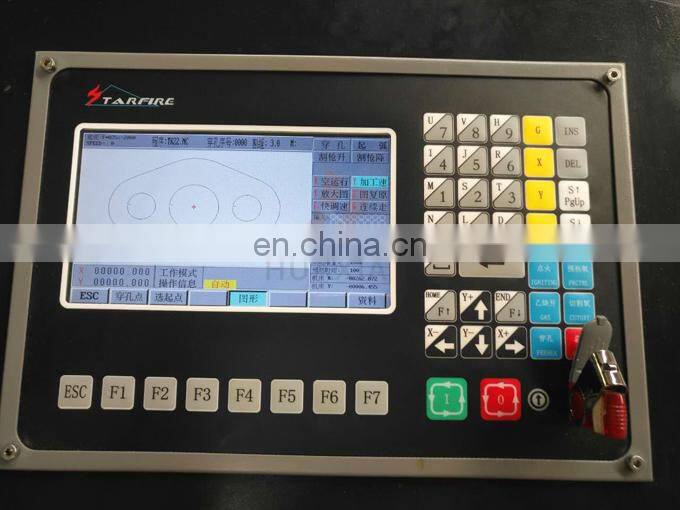

Control system
STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok , Chinese /English
/RUSSIAN/Spainsh/French/Czech/Janpanese
/Slovakian etc.
Version for your choose ,so you don't need worry about operate problem regardng language.
Automatic torch height controller
with this function , the torch can up and down with automatic regarding the sheet radian , so through your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the cutting torch and ensure the cutting performance.
Taiwan PMI Square rail
Square rail to make machine higher precision faster cutting speed, more better cutting performance.
FASTCAM Nesting software
After nest your drawing by FASTCAM nesting software ,it can make your cutting sheet in biggest usage , then it can reduce waste and save
cost.
cost.
Application Industry
Applicable Materials
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel, Stainless Steel,Alloy Steel, Composite Metal,Ect.
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel, Stainless Steel,Alloy Steel, Composite Metal,Ect.
Applicable Industries
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military Industrial,Wind Power, Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery, Environmental ProtectionEquipment,Ect.
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military Industrial,Wind Power, Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery, Environmental ProtectionEquipment,Ect.
Related Products
Packing&Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Company Introduction
Our Services
Warranty: 12 months
1). Before service: We will try to know more about your demands, including the max working size, main processing materials and the thickness, so we will offer you suit machine.
2).We will provide the consumable parts at an agency price when you need replacement3).18 hours on line service each day, free technical support.
4).Machine has been adjusted&tested before delivery.we will take machine photos and make
machine working image for you,after getting your agreement,then we will book a ship.
5).Provid technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance) if customers pay the charges of ticket.
6).If you have any problem during your use.you need our technician to judge where the
problem is and help you to solve it.We can provide team viewer and skype with cam till
all of your problems solved.
FAQ
1. Why can you trust us?
Our products are of high quality. We import important parts and components from Taiwan, Japan, etc., and have a series of relevant certificates as the basic guarantee. The whole process of assembly and processing has a full range of monitoring.In addition, the after-sales treatment is quite rigorous, and we will have technical staff to answer questions online in time.
2. What kind of factory is it?
Our company belongs to typical industrial and trading a shape, a statement that it is very important,
because the factory can control the machine quality, and trade departments can correct fully introduce to the buyer, integrating two department, not only guarantee the product quality, and can do real-time docking factories and sales staff, saving problem to deal with the wait time for you.
3. I am not sure if this machine suitable for my work?
Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
4. If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
5. Can you accept OEM ODM?
Yes, We also welcome OEM and ODM orders. We've professional design team and technical person, Whether you have any requirements, our team will provide suitable solution ways, design the machine you want.
