Product Description
Product Description
3 axis cnc router for sale best 3 axis cnc router wood cutting cnc router
Standard configuration:
(1) Working area: 1300*2500*200mm
(2) 3.2kw water cooling/3.5kw air cooling spindle
(3) Nc-studio controller
(4) JMC driver 860H+ Patent type reducer structure 1:4+stepper motor 450B
(5) Best inverter
(6) XY axis by 1.25 module helical rack gear transmission, Z axis by Taiwan TBI ball screw
(7) Taiwan PMI linear guide+Flange slider
(8) T-slot table
(9) Brand electrical components
(10) Roller
(11) The z-axis transmission machine head parts are made of aviation aluminum T6061/6063 material precision machining center, with high precision.
(12) Square pipe welding bed structure 200*300mm+150*200mm gantry
(13) Japan Omron limited switch
(14) Tool Sensor, Filter, Cast steel moter Box
(15) Sweden SKF bearing holder
(16) Independent control box
(17) Standard tool box
(18) Forklift loading and unloading, better protecting the weight of the fuselage and cargo.
(19) Lathe bed body and bed holder free separation, disassembly and delivery for saving shipping costs.
Optional parts:
(1) 1500*3000mm, 2000*3000mm, 2000*4000mm working size, all could be customized.
(2) 4.5kw/6kw/9kw air cooled spindle, 5.5kw/7.5kw water cooled spindle (if you're not sure how to choose, you can tell us which kind of material you mainly cut/engrave and thickness, then we'll give you proper suggestions)
(3) Hybrid servo or AC servo motor&driver
(4) Vacuum table or double table together
(5) Automatic lubricator
(6) Dust collector
(7) Auto tool changer
(1) Working area: 1300*2500*200mm
(2) 3.2kw water cooling/3.5kw air cooling spindle
(3) Nc-studio controller
(4) JMC driver 860H+ Patent type reducer structure 1:4+stepper motor 450B
(5) Best inverter
(6) XY axis by 1.25 module helical rack gear transmission, Z axis by Taiwan TBI ball screw
(7) Taiwan PMI linear guide+Flange slider
(8) T-slot table
(9) Brand electrical components
(10) Roller
(11) The z-axis transmission machine head parts are made of aviation aluminum T6061/6063 material precision machining center, with high precision.
(12) Square pipe welding bed structure 200*300mm+150*200mm gantry
(13) Japan Omron limited switch
(14) Tool Sensor, Filter, Cast steel moter Box
(15) Sweden SKF bearing holder
(16) Independent control box
(17) Standard tool box
(18) Forklift loading and unloading, better protecting the weight of the fuselage and cargo.
(19) Lathe bed body and bed holder free separation, disassembly and delivery for saving shipping costs.
Optional parts:
(1) 1500*3000mm, 2000*3000mm, 2000*4000mm working size, all could be customized.
(2) 4.5kw/6kw/9kw air cooled spindle, 5.5kw/7.5kw water cooled spindle (if you're not sure how to choose, you can tell us which kind of material you mainly cut/engrave and thickness, then we'll give you proper suggestions)
(3) Hybrid servo or AC servo motor&driver
(4) Vacuum table or double table together
(5) Automatic lubricator
(6) Dust collector
(7) Auto tool changer
Specification

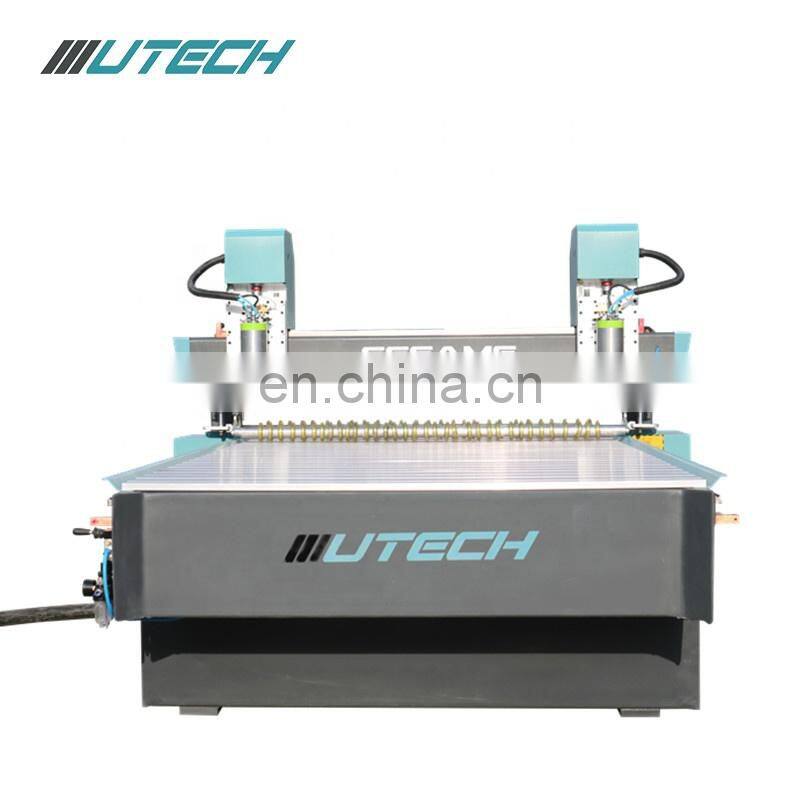

Model | SESAME Roller Cnc Router UT-1325 |
Working size | 1300*2500mm, optional 1500*3000mm, 2000*3000mm, 2000*4000mm |
Transmission device | XY axis by 1.25m helical gear rack transmission, Z axis by Taiwan PMI linear rail guide |
Table structure | T-slot table+PVC, optional vacuum table, double table together |
Spindle power | 3.2kw/4.5kw/5.5kw/6kw/7.5kw(air/water cooled is optional) |
Travel speed | 0-30000mm/min |
Spindle speed | 0-24000rpm/min |
Diameter of cutter | φ3.175-φ12.7mm |
Drive Motors | Standard with stepper motor&driver, hybrid servo/AC servo is optional |
Command code | hPGL G-code |
Control system | Nc-studio/DSP controller/Mach3 controller etc |
Resolution | 0.01mm |
Running Environment Temperature | 0 - 45 Centigrade |
Working voltage | AC220V/50/60Hz, 3PH (Option: 110V, 380V)Working voltage |
Applications
Working Industry of UTECH CNC Router Machine
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object

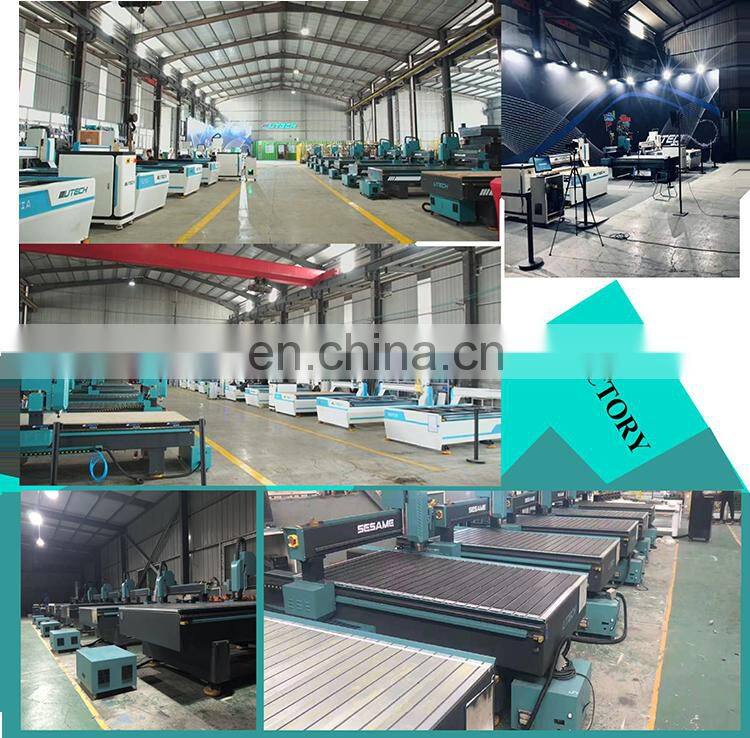

Company Profile
"///UTECH" is the new logo brand after the transformation of "Shandong U-May CNC Technology Co., Ltd.".
"///" aims to record the important strategic transformation of the company from ordinary business innovation to high-quality operation in the three years after its establishment; "U" is "U-May"'s homophonic characters; "TECH" means the CNC technology. At the same time, when the company was founded three years, the establishment of the Ministry of Foreign Trade, so "///UTECH" became the company's new logo, and the company's development philosophy "Smarter Solution, Better Tomorrow."
Packing & Delivery
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation. You can choose any way you'd prefer, we also will give you some proper suggestions.
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation. You can choose any way you'd prefer, we also will give you some proper suggestions.
Our Service
Pre-sales Service
1. Inquiry and consulting support. About 15 days to produce the machine, meanwhile, we will report the production process in time.
2. Sample testing support.
3. View our factory.
After-sales Service
1. Training how to install the machine, how to use it by internet. 24 hours technical support by email, calling, if you have any problems, we will solve it within 12 hours.
2. Some parts (quality problems) can be free charge to replace it within warranty
FAQ
Q1. How to get the most suitable machine and best price Please tell the material you want to working on?
How to working on it ? Engraving ? Cutting ? Or other ?
Q2. Do you have the manual of machine.
Yes, we have.
Q3. If we donot know how to use the machine,can you teach us?
Yes, we will , if you come to China,we will offer you free training until you can use machine freely.
Q4. How about your after-sales service?
We offer you 24 hours service phone, skype or MSN.
Q5. How about your guarantee period?
One year and during the time, if you have any questions, we will solve it for free.
