4000*12000mm Gantry Plasma Cutter Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Plasma Cutting Machine 1530 Metal Cutting Machine Price Plasma Cnc Cutting MachineNegotiableMOQ: 1 -
4000*12000mm Cnc Plasma and Flame Metal Cutting MachinesNegotiableMOQ: 1
-
2040 Table Plasma Metal Cutting MachineNegotiableMOQ: 1
-
1500*3000mm Cut Portable Metal Cutting Plasma MachineNegotiableMOQ: 1
-
Steel Pipe 4 Axis Cnc Cutting Sheet Metal Plasma Cutting Machine With Attachment RotaryNegotiableMOQ: 1
Product Description
Gantry cnc plasma and flame cutting machine:

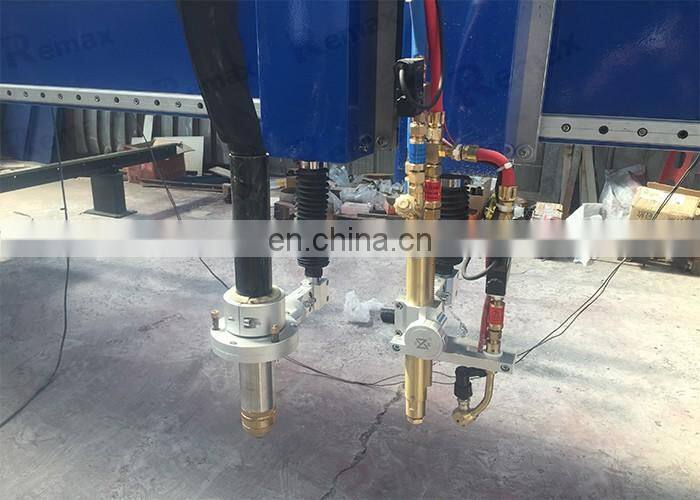

1.plasma and flame cutting machine with two deparate cutting torch, plasma can cut max for 50mm steel, the flame can cut over 200mm.
2.plasma gas cutting machine adopt USA Hypertherm power and China JIUSHENG power with high cutting accuracy.
3. Big gantry type makes the big work area like 3000*10000mm. even bigger
Model | 4000*12000mm gantry plasma cutter cutting machine | ||||||
Effective Cutting Width (X axis) | 3000mm | ||||||
Effective Cutting Length (Y axis) | 10000mm | ||||||

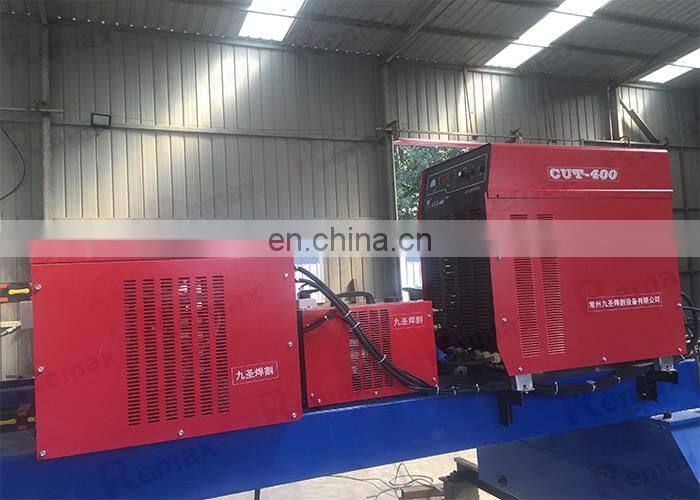

Plasma power | JIUSHENG 400A | ||||||
Drive Mode | Bilateral-side | ||||||

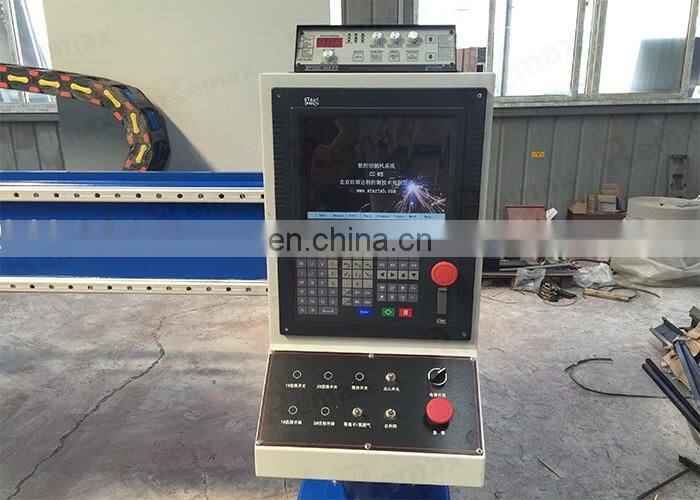

CNC system | Beijing START CNC | ||||||
Plasma cutting speed | 50-6500 mm/min | ||||||
Cutting torch lifting distance | 150mm | ||||||
Speed setting error | ≤±5% | ||||||
Max Idle running speed | 12000mm/min | ||||||
Torch height controller accuracy | ≤±1.0mm | ||||||
Longitudinal line accuracy | ±0.2mm/10m | ||||||

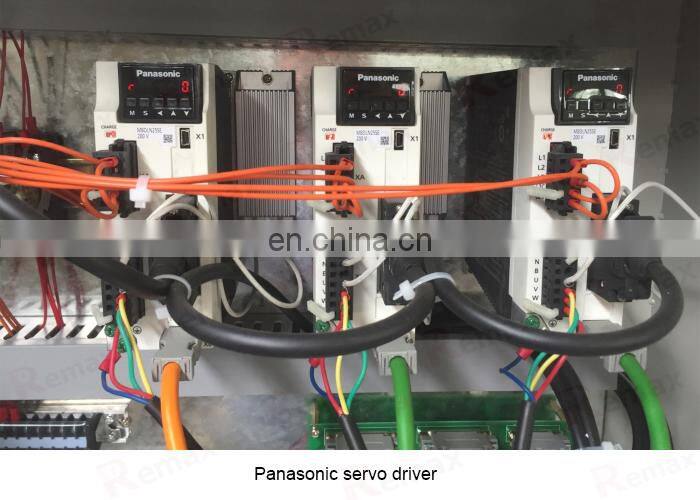

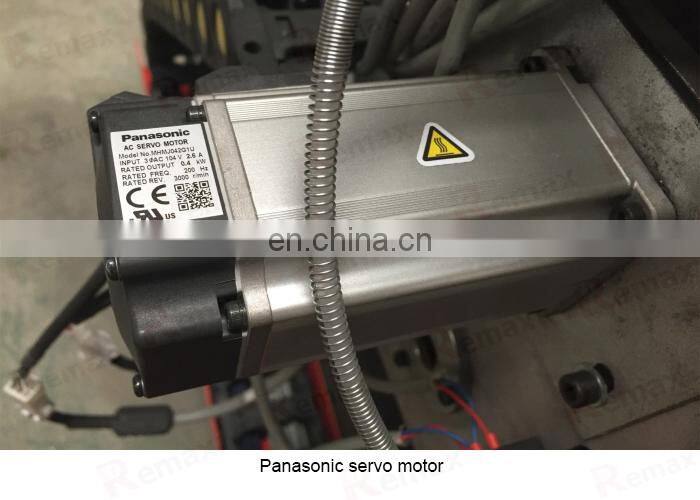

Motor and driver | Japan panasonic servo motor and driver | ||||||
Gearbox | Hubei planet | ||||||
Drive Method | Rack and square rails for X Y Z axis | ||||||
Moving Precision | 0.01mm per step | ||||||
Power Source | 380V 50/60Hz 3 phase | ||||||
Height controller(plasma) | HYD THC | ||||||
Plasma cutting thickness | 1-32mm | ||||||
length of a side | ±0.5mm | ||||||
Diagonal error |AD-BC| | ±0.5mm | ||||||
Base point return error | ±0.2mm | ||||||
Intersection point error | ±0.5mm | ||||||
Lineation forward- reverse error | ±0.2mm | ||||||

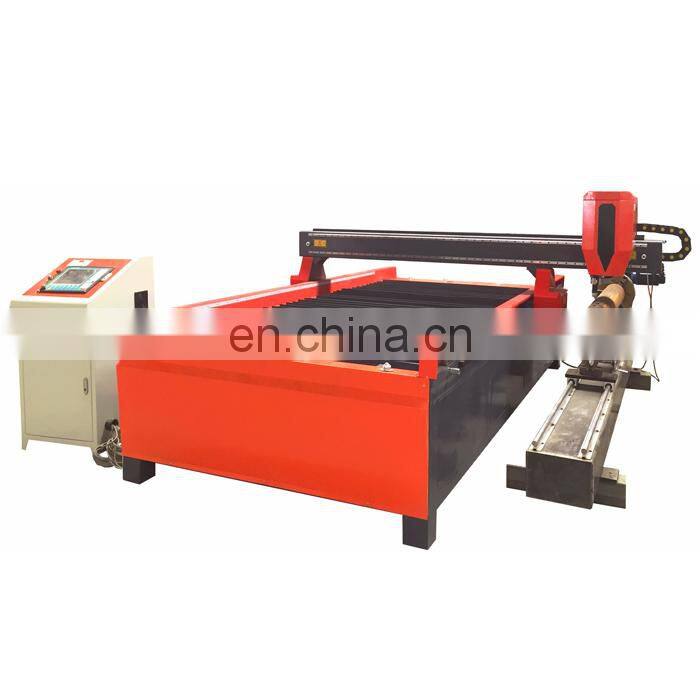

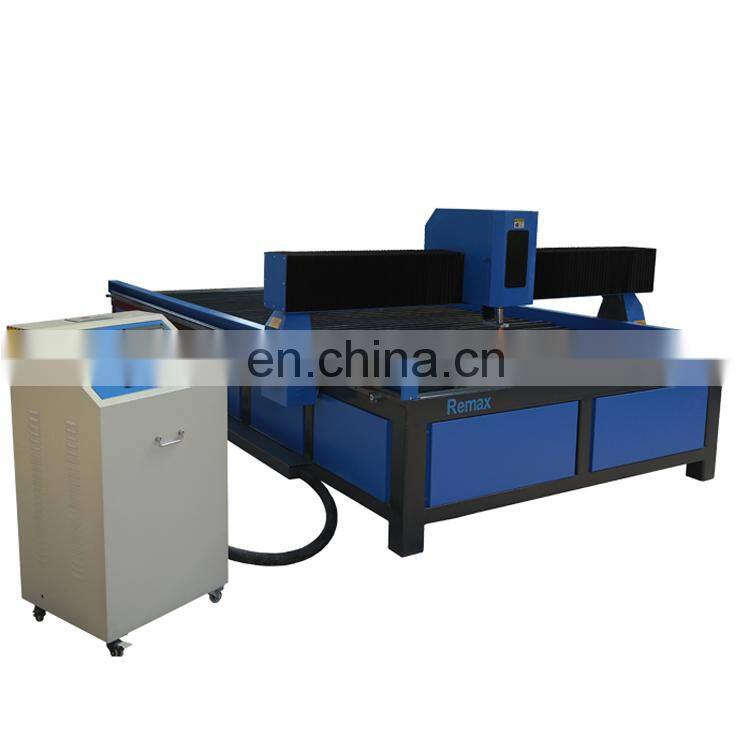

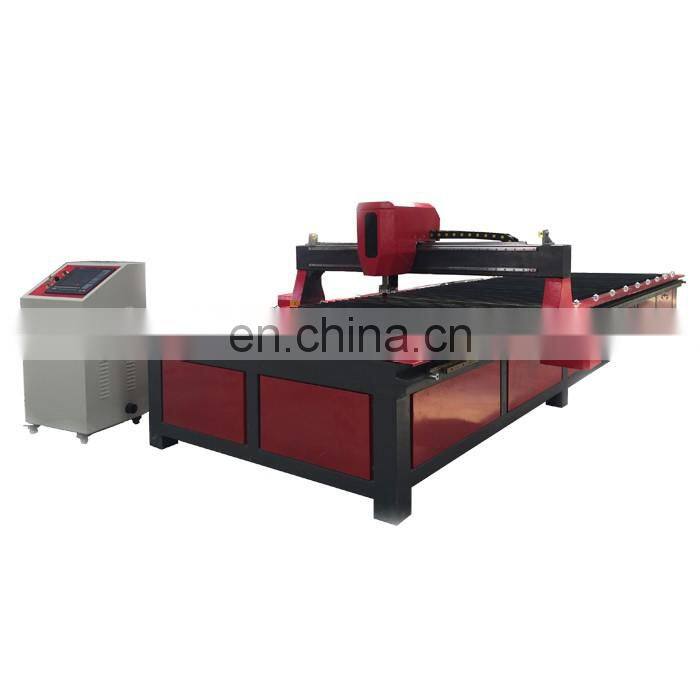

Detailed Images

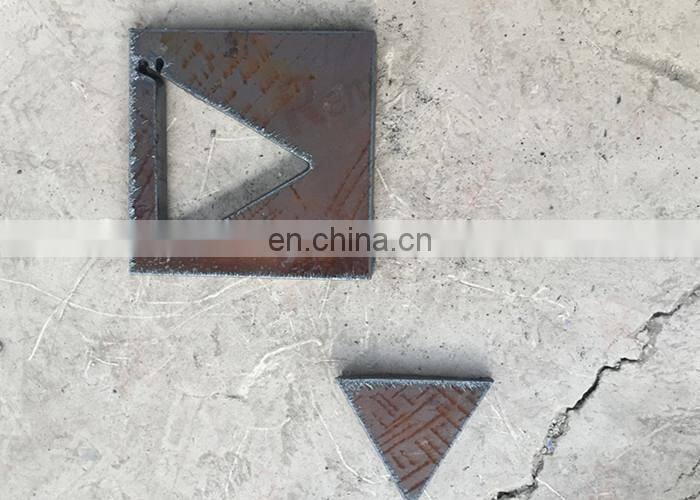

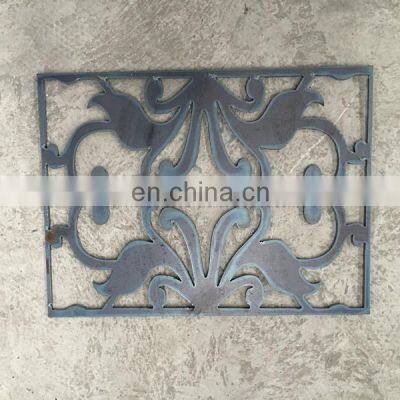

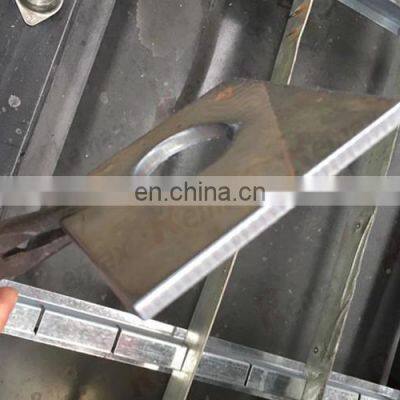

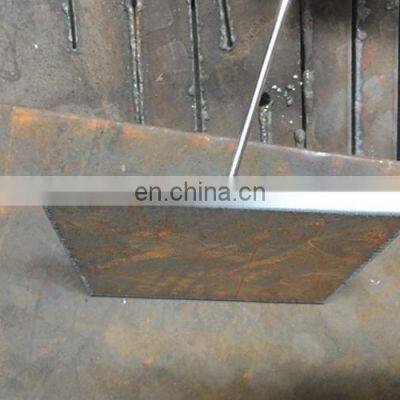

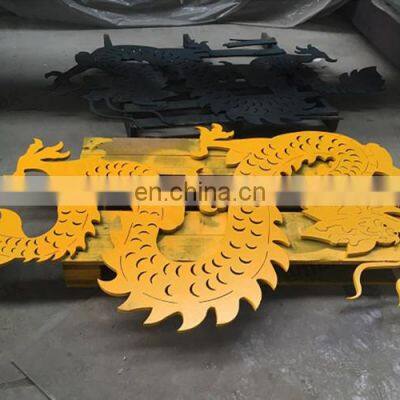

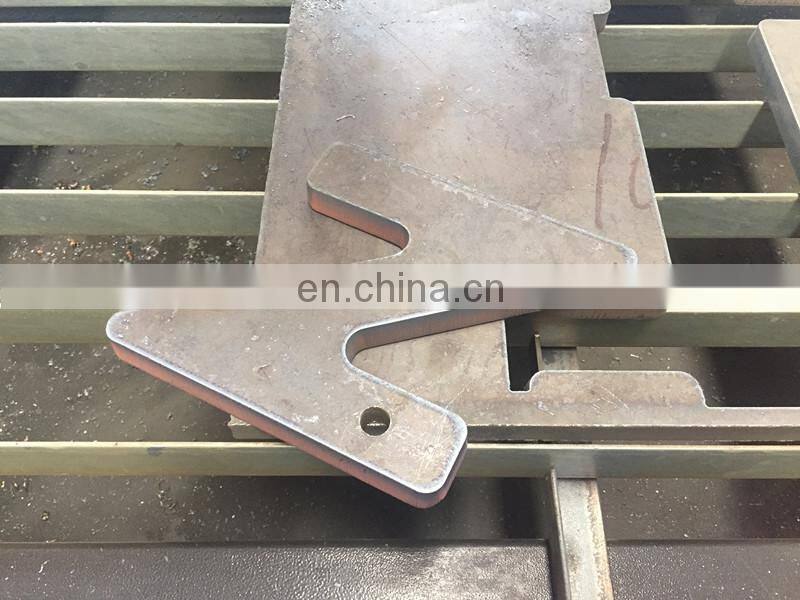

Sample
Packing&Shipping
We use 3 layers package
1 the inside layer,the machine is covered by thickenning platic for waterproof
2 the middle ,the machine is covered by foam ,to protect the machine for shaking and hitting
3 the outside we use the International standard plywood box for exportation
After Sales Service
Customer feedback
Related Products
Company Introduction
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
We not only produce machines, we provide the best solution for you.
Remax looking forward to being your partner.
