China Remax New Mini Desktop Metal Cnc Router
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrylic PVC Wood Metal Billboard Working Cnc Router Machine 1325 Cnc RoutersNegotiableMOQ: 1 -
3040 Desktop 5 Axis Cnc Router Metal Milling MachineNegotiableMOQ: 1
-
3030 Cheap Mini Desktop Cnc Router Machine SaleNegotiableMOQ: 1
-
China Easy to Operate Mini Cnc Router Milling MachineNegotiableMOQ: 1
-
Remax 1325 Cnc Wood Router Milling Carving MachineNegotiableMOQ: 1
Parameter
Description |
Parameter |
||||
X,Y,Z Working Area |
300×300×100mm |
||||
X,Y,Z Accuracy |
±0.02mm |
||||
X,Y,Z Repositioning Accuracy |
±0.0254mm |
||||
Table Surface |
T-solt Table |
||||
Frame |
Whole machine cast by iron |
||||
Transmission |
Hiwin square rail and TBI ball screw for 3 axis |
||||
Max Power Consumption |
2.5Kw~3Kw（without spindle） |
||||
Max Rapid Travel Rate |
12m/min |
||||
Max Working Speed |
8m/min |
||||
Spindle Power |
2.2Kw water cooling |
||||
Spindle Speed |
0-24000 rpm/min |
||||
Drive and Motors |
Leadshine drive and stepper motor |
||||
Working Voltage |
220/380V 50/60Hz |
||||
Command Language |
G Code |
||||
Operating System |
DSP 11 (Mach 3 and NC Studio option) |
||||
Computer Interface |
USB |
||||
Software |
Type 3 or Artcam |
||||
Running Evironment Temperature |
0-45 Centigrade |
||||
Relative Humidity |
30%-75% |
||||
Inverter |
Delta/Fuling |
||||
Electrical components |
Schneider |
||||
Limit switch |
Omron |
||||
Tool sensor and lubrication |
With |
||||
Rotary axis |
Option |
||||
Feature
1Whole machine cast by iron,very strong and never out of shape
2 Schneider electrical parts.Leadshien driver and stepper motor,Taiwan Delta and Japan YASKAWA servo motor and driver for option.
3 Taiwan TBI ball screw transmission ensures high accuracy.
4 Imported Taiwan square rail ensures high accuracy and heavy workload.
5DSP handle control system, easy cooperation.

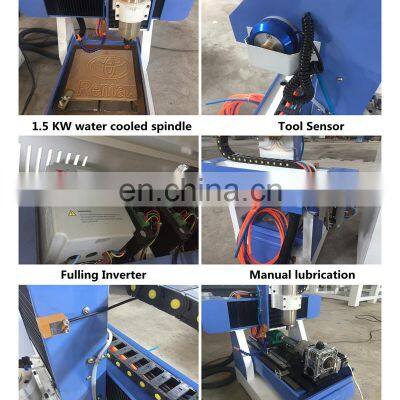

Detailed Photos
Company Information
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNCrouter machines, CNC laser machine, CNC plasma cutting machine. Our company sets research anddevelopment, production, sales, maintenance services as a whole,Our products have covered advertisinindustry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industry moldindustry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of itsdistinct cost-effective domestic and in various application fields have been completely replacing importedsimilar products. The company will continue to adopt international advanced production technology andproduction processes, development and production of high quality, the high price ratio of numerical contrcequipment, continuing to create maximum value for customers.
Samples
Our Service
FAQ
Q1:How can l buy this machine from you ? ( very easy and flexible! )
A1:1.Cousult us about this product on line by e-mail.
2.Negotiate and confirm the fianl price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice after confirmin yourfull payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
2.Negotiate and confirm the fianl price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice after confirmin yourfull payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
Q2:This is the first time l use this kind of machine, is it easy to operate?
A2:There are english manual or teaching video that show how to use machine.lf there is still have any question, please contact us by
e-mail / skypel phone /trademanager online service at any time.
e-mail / skypel phone /trademanager online service at any time.
