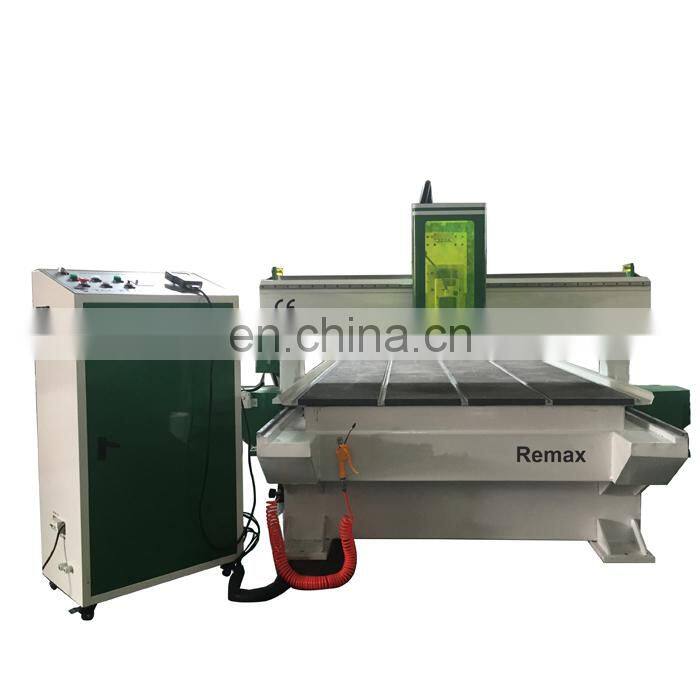

Remax 1325 Cnc Wood Router Milling Carving Machine
Features:

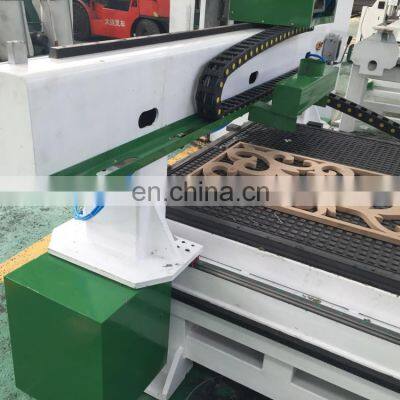

1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported square rail ensures high accuracy and heavy workload
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials.

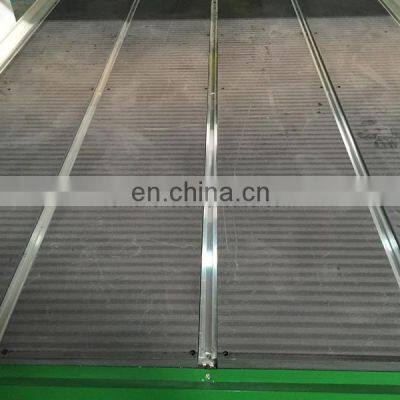

6)Vacuum table with 6 vacuum zones, which can absorb different size materials. With 5.5kw vacuum pump, high suction, more convenient, stable capability.
7)Imported square rail ensures high accuracy and heavy workload.
8)Humanistic design, the machine can be disassembled, so it is easily transported.
Parameter:
|
Description |
Parameter |
|
Name |
1325 cnc router |
|
Model |
1325 cnc router |
|
X,Y,Z Working Area |
1300x2500x200mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Accuracy |
0.02mm |
|
Table Surface |
Vacuum Table (T-slot+PVC board optional) |
|
Frame |
thickness Steel Welded Structure |
|
X, Y Structure |
Rack and Pinion Transmission, Hiwin Rail Linear Guide |
|
Z Structure |
Hiwin Rail Linear Guide and TBI Ball Screw |
|
Max. Power Consumption |
2.5kw~3kw (without spindle) |
|
Max. Rapid Travel Rate |
15m/min |
|
Max. Working Speed |
10mm/min |
|
Spindle Power |

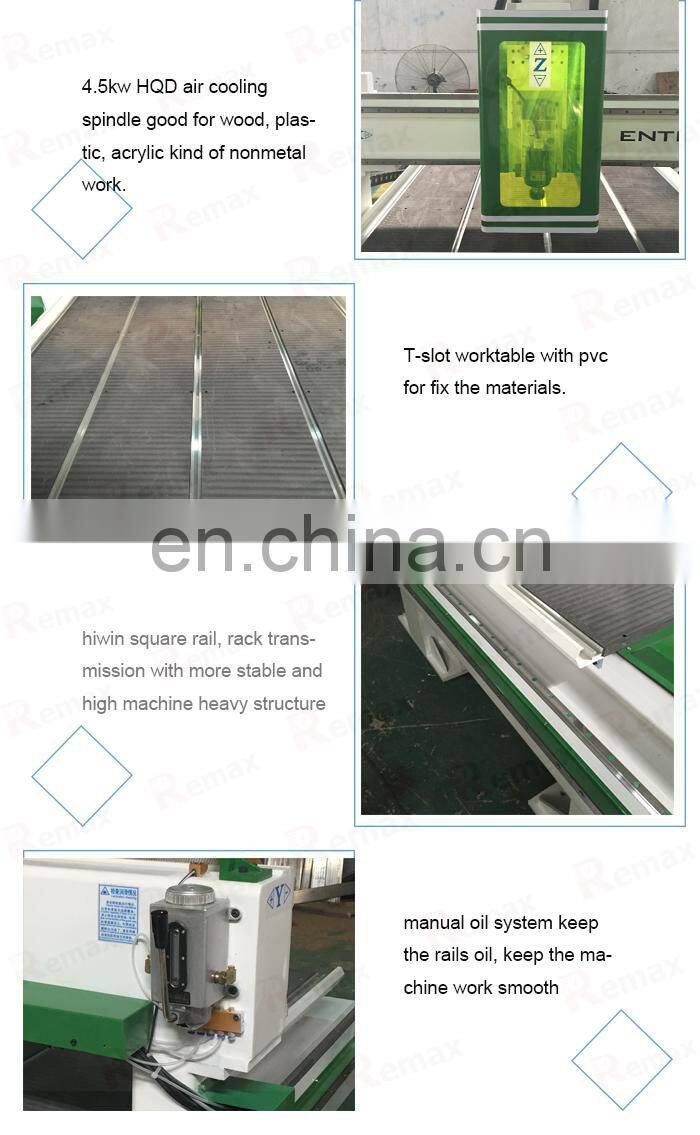

4.5kw HQD air cooling spindle ( 3.0/5.5kw water cooled spindle optional ) |
|
Spindle Speed |
0-18000RPM |
|
Drive Motors |
Stepper motors and Chinese Leadshine drivers |
|
Working Voltage |
AC220V/380V, 50/60Hz |
|
Command Language |
G Code |
|

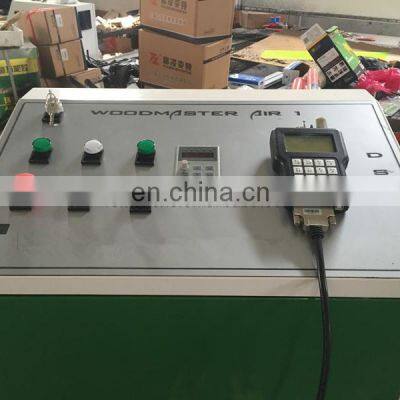

Operating System |
DSP A11 |
|
Computer Interface |
USB |
|
Flash Memory |
128M(U Disk) |
|
Collet |
ER25 |
|
X,Y Resolution |
<0.01mm |
|
Software Compatibility |
Type3/UcancameV9 Software/ Artcam Software |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|
Inverter |
Fuling |
|
Electrical components |
Schneider |
|
Limit switch |
OMRON |
Certifications
Cooperation
Sample
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine. Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
