1212 3D Cnc Router Woodworking Machine 4 Heads 4 Axis Cylinder Wood Cnc Router
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1325 Double Head 4axis Cnc Router Machine With Vacuum TableNegotiableMOQ: 1 -
1530 Cnc Wood Carving Engraving Cutting Router Machine in JinanNegotiableMOQ: 1
-
2030 ATC 3 Axis Wood Cutting Machine Cnc RouterNegotiableMOQ: 1
-
China Cheap Mini Desktop Small Cnc Router 3030 MachineNegotiableMOQ: 1
-
Low Cost Cnc Routers 1500x2500mm Cnc Stone Cutting Machine for Gypsum Foam PlasticNegotiableMOQ: 1
Product Description

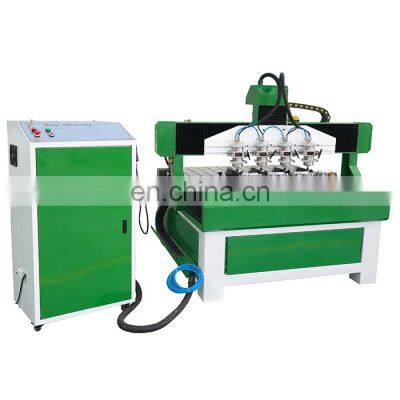

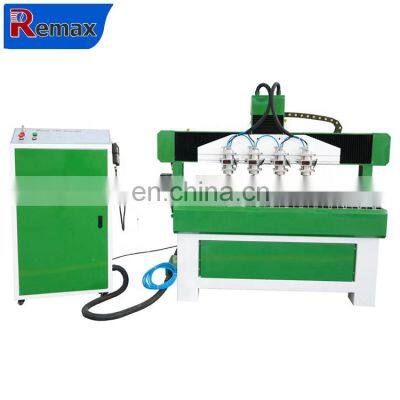

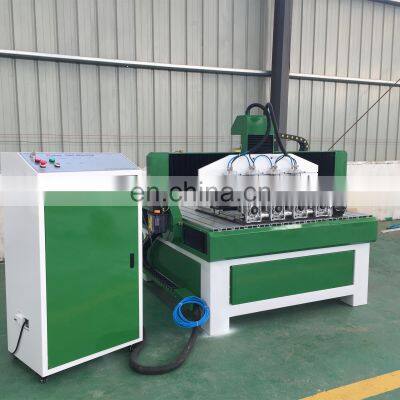

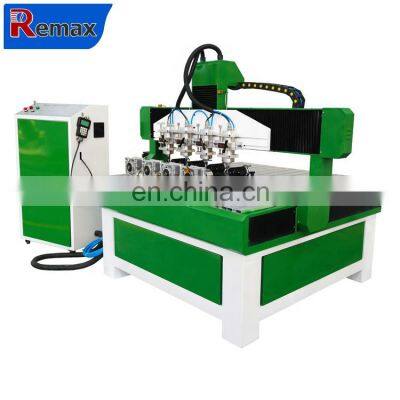

1212 3D cnc router woodworking machine 4 heads 4 axis cylinder wood cnc router
1.Machine lathe bed cast by iron, very strong and never out of shape
2.Leadshine driver and motor, Schneider electrical parts
3.TBI ball screw transmission ensures high accuracy
4.Imported square rail ensures high accuracy and heavy workload
5.DSP handle control system, easy cooperation
6.With rotary axis, can do round and cylinder work.
Description |
Parameter |
||||||
X,Y,Z Working Area |
1200x1200x200mm |
||||||
X,Y,Z Accuracy |
±0.02mm |
||||||
X,Y,Z Repositioning Accuracy |
±0.0254mm |
||||||
Table Surface |
T-slot Table |
||||||
Frame |
Machine lathe bed cast by iron |
||||||
Transmission |
Hiwin square rail and TBI ball screw for 3 axis |
||||||
Max. Power Consumption |
2.5kw~3Kw (without spindle) |
||||||
Max. Rapid Travel Rate |
15000mm/min |
||||||
Max. Working Speed |
8000mm/min |
||||||
Spindle Power |
1.5kw water cooling (2.2kw for option) |
||||||
Spindle Speed |
0-24000RPM |
||||||
Driver and Motor |
Leadshine and Stepper Motor |
||||||
Working Voltage |
220/380V 50/60Hz |
||||||
Command Language |
G Code |
||||||
Operating System |
DSP A11 System |
||||||
Computer Interface |
USB |
||||||
Software |
Type3 or Artcam |
||||||
Running Environment Temperature |
0 - 45 Centigrade |
||||||
Relative Humidity |
30% - 75% |
||||||
Inverter |
Delta/Fuling |
||||||
Electrical components |
Schneider |
||||||
Limit switch |
OMRON |
||||||
Tool sensor and lubrication |
With |
||||||
Rotary axis |
4 pc 100x1000mm |
||||||
Detailed Images
Sample
Packing&Shipping
1 The inside layer,the machine is covered by thickenning platic for waterproof
2 The middle ,the machine is covered by foam ,to protect the machine for shaking and hitting
3 The outside we use the International standard plywood box for exportation
After Sales Service
Certifications
Company Introduction
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
We not only produce machines, we provide the best solution for you.
Remax looking forward to being your partner.
