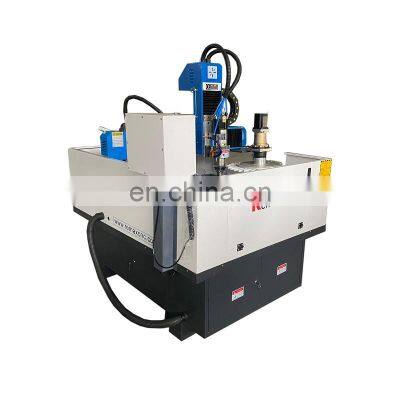

ATC 4040 Mini Metal Shoes Moulds Cnc Router Aluminum Cnc Milling Machine With Automatic Tool Change for Carbon Steel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6060 ATC Cnc Router Sheet Metal Cutting MachineNegotiableMOQ: 1 -
6060 ATC Cnc Router Tool Machine PriceNegotiableMOQ: 1
-
Iron Jewelry Molds Engraving Machines for Making Shoe Moulds 6090 Fully Closed Cnc Milling Machine for AluminiumNegotiableMOQ: 1
-
Remax CNC Router 6060 Metal Mold 3D Milling MachineNegotiableMOQ: 1
-
Mini Cnc Router 4 Axis Metal Milling Machine 6040NegotiableMOQ: 1
Remax 4040 DISC ATC Metal CNC Router Machine
Product Description
Features:
1.Iron T-slot and moving table, ideal for machining metal or wooden molds.2.Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity.
3.TBI ball screw transmission improves positioning accuracy and fast speed.

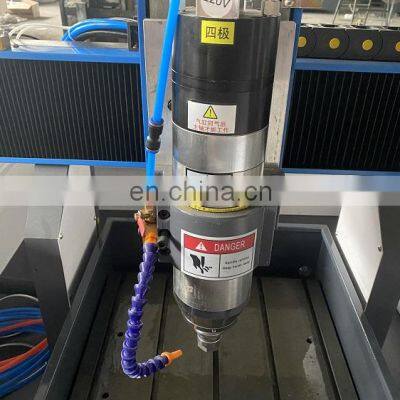

4.Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
Product parameter:
Description | Parameter of cnc milling machine |
X,Y,Z Working Area | 360*360*300mm |
X,Y,Z Repositioning Accuracy | 0.02mm |
Table Surface | T-slot Table |
Frame | Whole machine cast by iron |
X, Y,Z Structure | Hiwin Square Rail and TBI Ball Screw |
Spindle Power | 3.2kw atc water cooling spindle |
Spindle Speed | 0-24000RPM |
Working Voltage | AC220/380V 50/60Hz |
Command Language | G Code |
Inverter | Delta/Fuling |

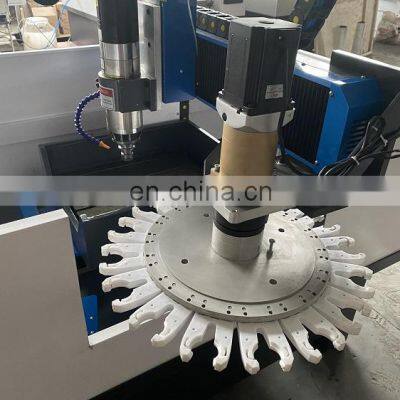

Auto tool change | Disc 14pcs auto tool change |
Electrical components | Schneider |
Limit switch | OMRON |
Motor and driver | Taiwan Delta/Leadshine servo motor and driver |
Running Environment Temperature | 0-45 Centigrade |
Relative Humidity | 30%-75% |

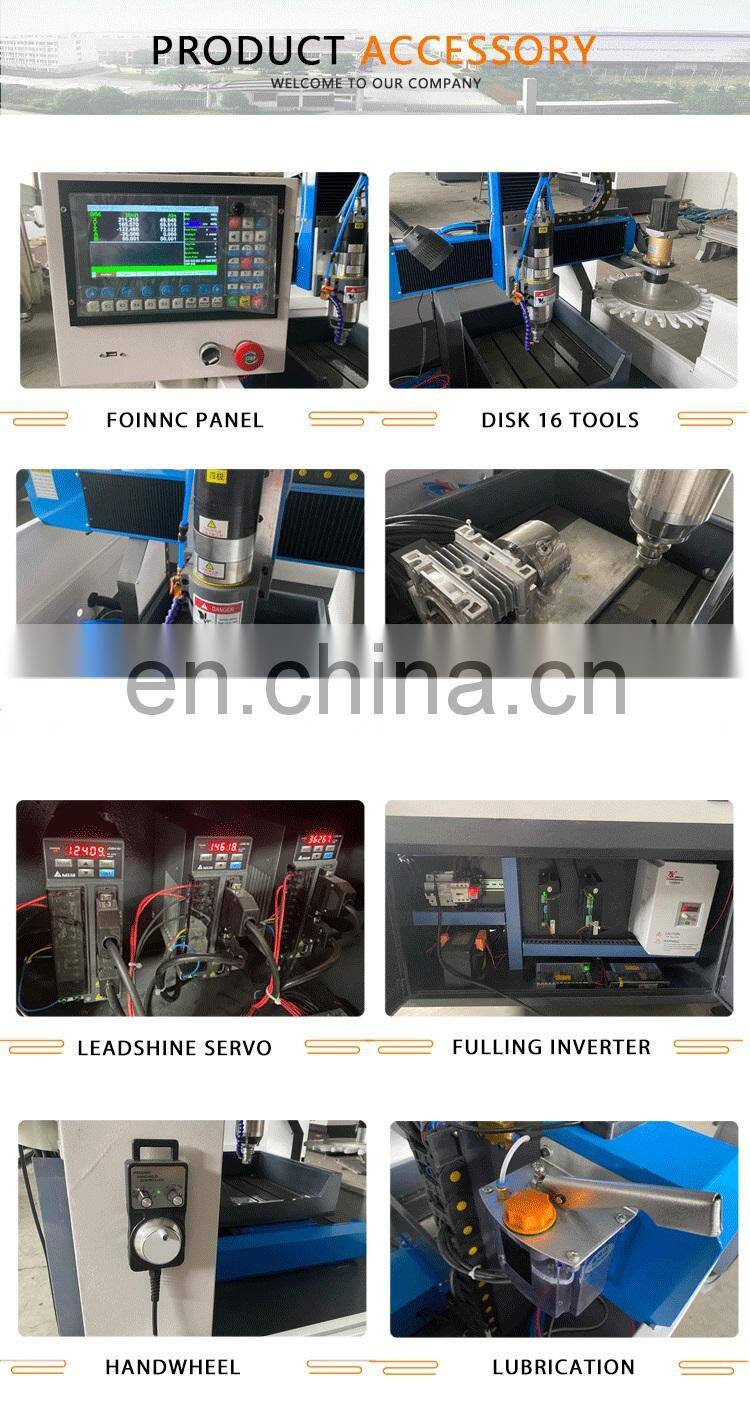

Detailed Photos
Samples
Company Profile
Packing & Delivery
Customer feedback
Our Service
FAQ
Q1.Manufacturer or trader?
We are CNC ROUTER machine factory.
Q2.Deliver time of cnc router machine?
For standard size and configuration CNC router machine, the delivery time is 25 working days.
Q3.Can you send cnc router machine to my home?
Yes. The shipping agent we have long time cooperation is famous in China, and they can offer affordable FCA, FOB, CIF, DDU, DDP price. If your receiver address is Business District, the truck for deliver would be a small one.
