Mini Cnc Router 4 Axis Metal Milling Machine 6040
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Enclosed Cover 6060 Remax Metal Molds CNC Router Stainless Steel Mould Engraving CNC Milling MachineNegotiableMOQ: 1 -
Mini Cnc Router 4040 Metal Mold Aluminium Wood Acrylic Jade 3D Milling MachineNegotiableMOQ: 1
-
6060 4 Axis Metal Engraving Machines With Rotary Axis Steel Milling Cnc Router Machine for Bottle Mould Milling MachineNegotiableMOQ: 1
-
Auto Tool Cvhange 4040 Small Metal Mould Engraving Shoe Mold 400*400 ATC Cnc Router Cnc Metal Milling MachineNegotiableMOQ: 1
-
Low Maintenance Cost 5axis Cnc Metal Router Milling Machine SteelNegotiableMOQ: 1
Mini Cnc Router 4 Axis Metal Milling Machine 6040
Features:
1.High productivity Rack gear transmission.
1.High productivity Rack gear transmission.
2.High speed driver and stepper motor improve work efficiency.
3.Humanistic design, the machine can be disassembled, easy and convenient to transport.
mini 6040 4 axis cnc router metal milling machine can carve copper, aluminium,iron, steel and other metal molds.
Specification
Description | Parameter |
X,Y,Z Working Area | 600*400*200mm |
X,Y,Z Traveling Positioning Accuracy | 0.02mm |
X,Y,Z Repositioning Accuracy | 0.02mm |
Table Surface | T-slot iron Table |
Frame | Cast by iron |
X, Y,Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 3.0Kw |
Max. Rapid Travel Rate | 15m/min |
Max. Working Speed | 8m/min |
Spindle Power | 1.5/2.2kw/3.0kw/5.5kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | stepper/ servo motor |
Working Voltage | AC220/380V, 50/60Hz |
Command Language | G Code |
Operating System | DSP A11 control system (Optional: DSP A18 for 4 AXIS ) /Mach3/NK280 |
inverter | Fuling |
Driver | Leadshine |
Electrical components | Schneider |
Detailed Photos

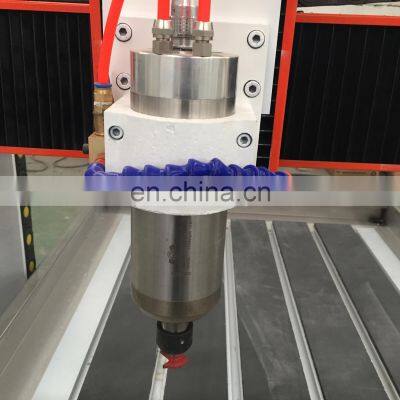

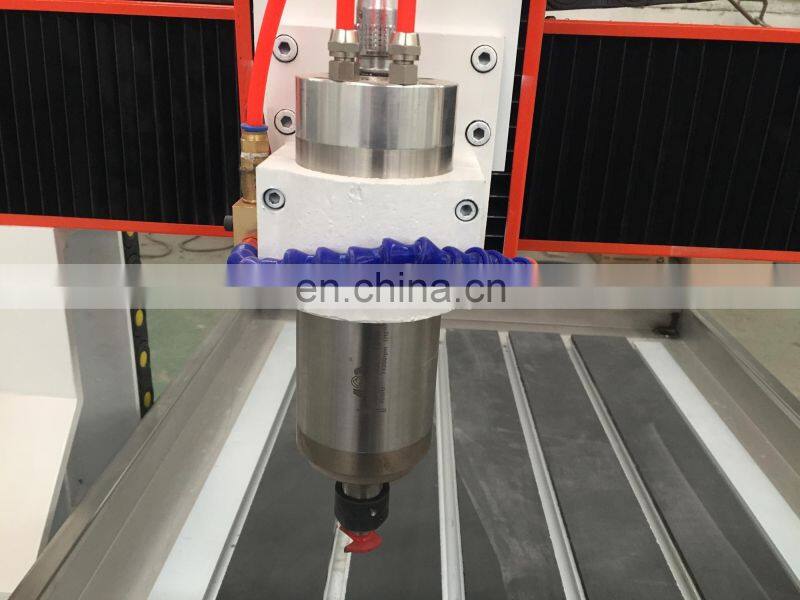

Desktop 6040 metal cnc router water cooling spindle

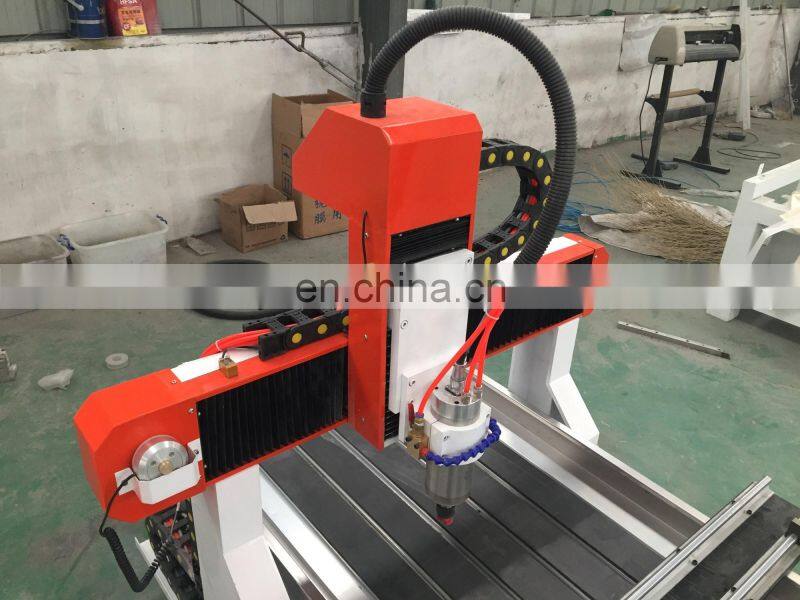

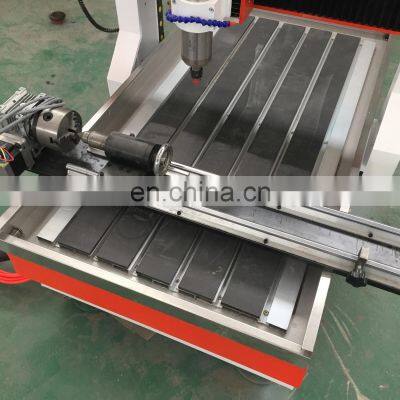

Small cnc router 6040 4 axis table and tool sensor

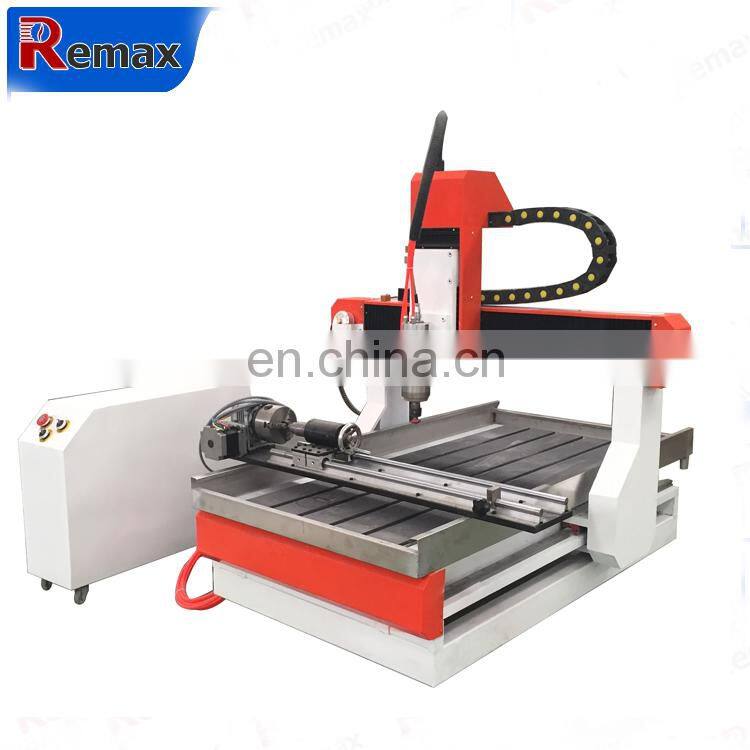

Desktop 6040 cnc router 4 axis with rotary axis

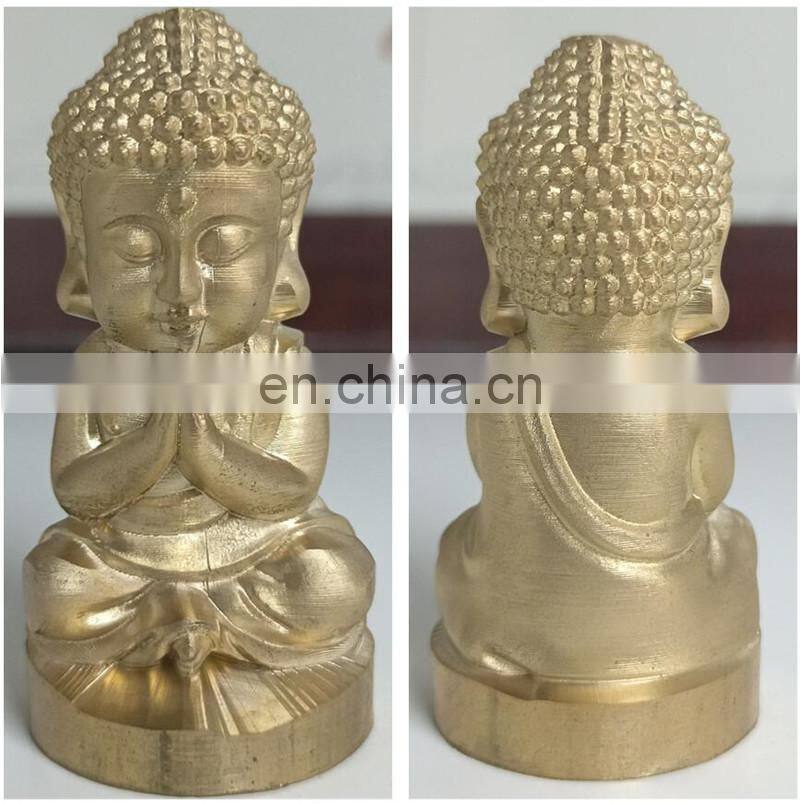

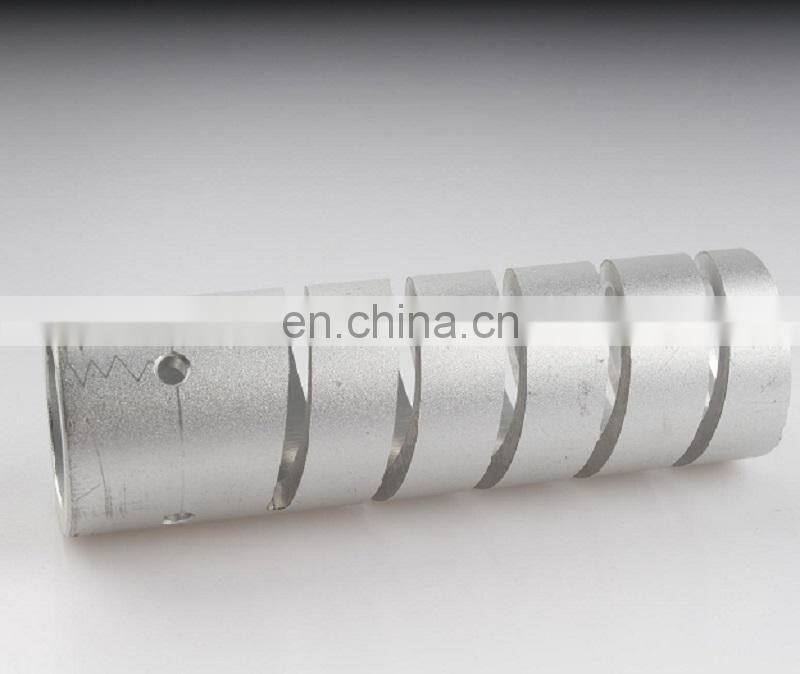

Samples
CE certificate
Packing & Delivery
Company Profile
Jinan Remax Machinery Technology Co.,LTD is a professional cnc router manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines.
Since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry,
decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective
domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective
domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are English manual or teaching that show how to use machine.
If there is still any question. please contract us by e-mail/skype/phone/trademanager online service at any time.
B If machine have any problem after I receive it ,how can I do?
Free parta send to you in machine warranty period if machine have any problem.
C MOQ?
The minnimum order is 1set machine , if you order more one time,the price will be better.
D How can I buy this machine from you ? ( Very easy and flexible! )
1. Cousult us about this product on line by e-mail.
2.Negotiate and confirm the final price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice, after confirmin your full payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in busniess for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10.Fast delivery, save your time.
There are English manual or teaching that show how to use machine.
If there is still any question. please contract us by e-mail/skype/phone/trademanager online service at any time.
B If machine have any problem after I receive it ,how can I do?
Free parta send to you in machine warranty period if machine have any problem.
C MOQ?
The minnimum order is 1set machine , if you order more one time,the price will be better.
D How can I buy this machine from you ? ( Very easy and flexible! )
1. Cousult us about this product on line by e-mail.
2.Negotiate and confirm the final price,shipping,payment methods and other terms.
3.Send you the proforma invoice and confirm your order.
4.Make the payment according to the method put on proforma invoice.
5.We prepare for your order in terms of the proforma invoice, after confirmin your full payment.And 100% quality check before shiping.
6.Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1. We are a real factory offering products.
2.Free technical business for many years.
3.Company in busniess for many years.
4.Over 50 countries customers served!
5.Buy direct saving your money!
6.All machine with CE certificate.
7.Machine and spindle warranty 1year.
8.Our engineer can go to your country to provide technical guidance
9.We have phone support in English,if you have any questions,you can call it,
we can give you a best solution within 24 hours
10.Fast delivery, save your time.
