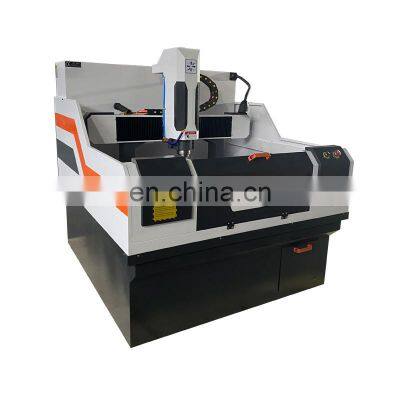

3d metal mold making engraving machine small cnc moulding machine for metal shoe mould
Technology parameters:
| NO. | Description | Parameter of cnc mold machine |
| 1 | X,Y,Z Working Area | 600x600x200mm |
|
2 |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | cast by iron |
| 6 | X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 7 | Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 1.0Kw |
| 9 | Max. Rapid Travel Rate | 16000mm/min |
| 10 | Max. Working Speed | 10000mm/min |
| 11 | Spindle Power | 3.0KW water cooling spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | Stepper Motor |
| 14 | Working Voltage | AC220/380V/50/60Hz,3PH |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | X,Y Resolution | <0.01mm |
| 20 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 21 | Running Environment Temperature | 0 - 45 Centigrade |
| 22 | Relative Humidity | 30% - 75% |
| 23 | Inverter | Delta/Fuling |
| 24 | Electrical components | Schneider |
| 25 | Limit switch | OMRON |
| 26 | Driver | Leadshine or Yako |
Features
1)Whole machine cast by iron, very strong and never out of shape
2) Schneider electrical parts. Taiwan Delta 750w servo motor and driver, you can choose Japan
YASKAWA servo motor and driver for option
3)Taiwan TBI ball screw transmission ensures high accuracy
4)Imported Taiwan square rail ensures high accuracy and heavy workload
5)NC Studio control system, easy cooperation
spare parts:

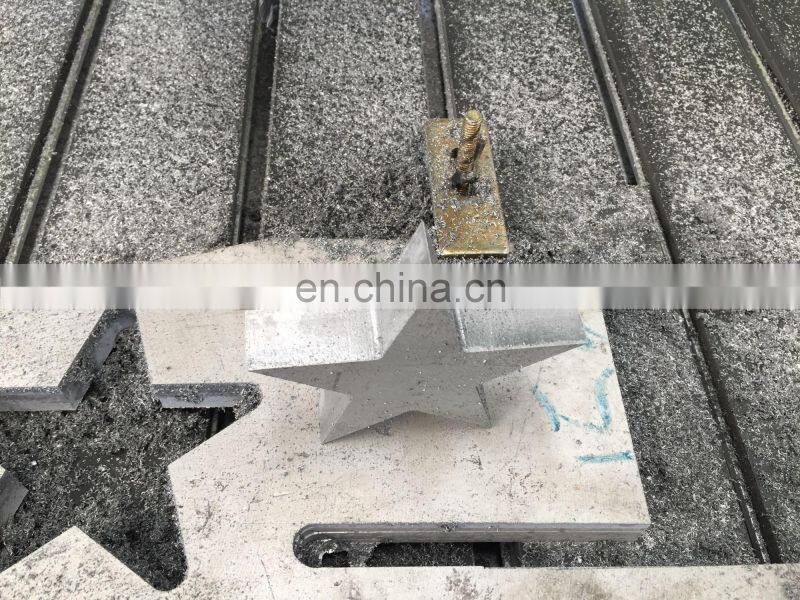

samples:
Certificate:
A Guarantee of Hot sale mini cnc router :
1.12 months for the whole machine.
2.Within 12 months under normal use and maintenance,
3.if something is wrong with machine, you will get spare part for free.;
4.Out of 12 months, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by
4.email/fax/tel and lifetime technical support.
Any question, pls contact me
