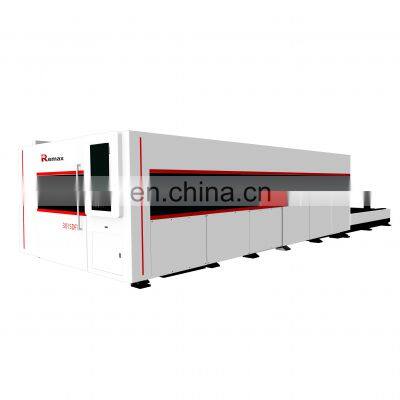

1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System

1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System thumbnail-1
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System thumbnail-2
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System thumbnail-3
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System thumbnail-4
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System photo-1
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System photo-2
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System photo-3
1530 Fiber Laser Cutting Machine With Full Enclosed and Table Exchange System photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Jinan Remax Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Specification
MACHINE BODY
HEAVY QUALITY BIG STEEL SQUARE PIPE WELDING BED.
ALL MACHINE MOUNTING GROOVE AND SCREW HOLE ARE
MILLED OUT BY ITALY BIG GOLGAR MILLING CENTER.
CONTROL SYSTEM
Cypcut Control
LASER SOURCE
Raycus China
LASER HEAD
Raytools Switzeland
WATER CHILLER
HanLi China
SERVO MOTOR X / Y / Z - AXIS
YASKAWA x4 Japan
1300W*2 /850W*1 /400W*1
X AXIS
TRAVEL
1550
NO-LOADMAX. SPEED(m/min)
110
Y AXIS
TRAVEL
3050
NO-LOADMAX. SPEED
(m/min)
110
Z AXIS
TRAVEL
350
NO-LOADMAX. SPEED
(m/min)
30
GUIDE RAIL AND RACK
HIWIN Taiwan
LASER POWER
2000w /3000w/4000w/6000w
REDUCER
SHIMPO REDUCER Japan
POSITIONING ACCURACY
±0.03/1000mm
REPEAT POSITIONING ACCURACY
±0.02mm
ELECTRICAL PARTS
Chint China
PNEUMATICAL PARTS
AIRTAC Taiwan
Parts

heavy-duty frame

Raytools laser head

IPG/Raycus/MAX laser power

Air compression system

cypcut control system

Hanli water cooler

Cast beam

High-precision guide rail and rack

Machining bed of large gantry machining center

Machine shop

Samples
FAQ
Q:How i can choose a suitable machine? A:Tell us the max working area,the material and its thickness you want to process ,we can help you choose the best suitable machine . Q:Traning and use ? A:We will supply friendly Engish operation manual and Installation . customers is warmly to welcome to visit for free traning . if you need ,we also provide the engineer overseas training ., Q:How about the documents after shipment? A:After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
