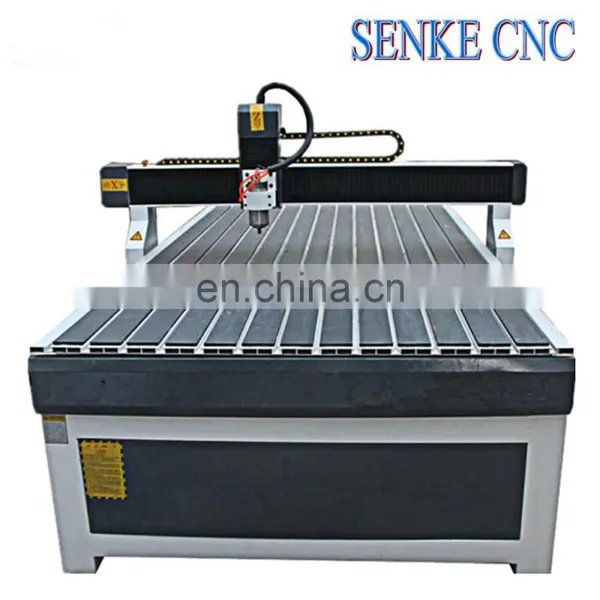

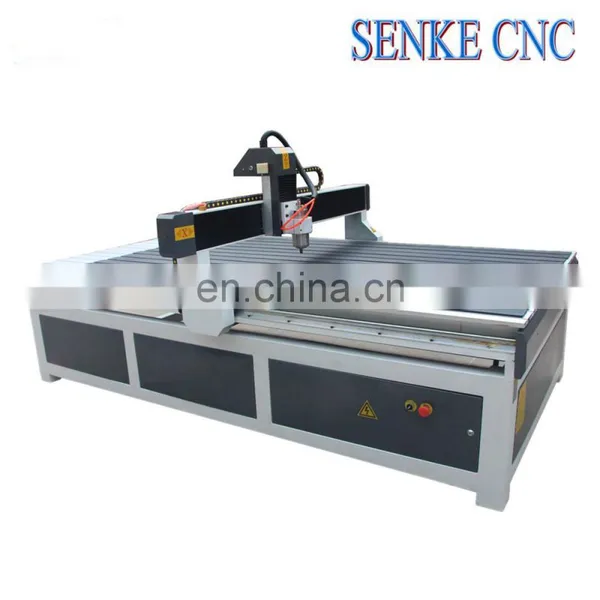

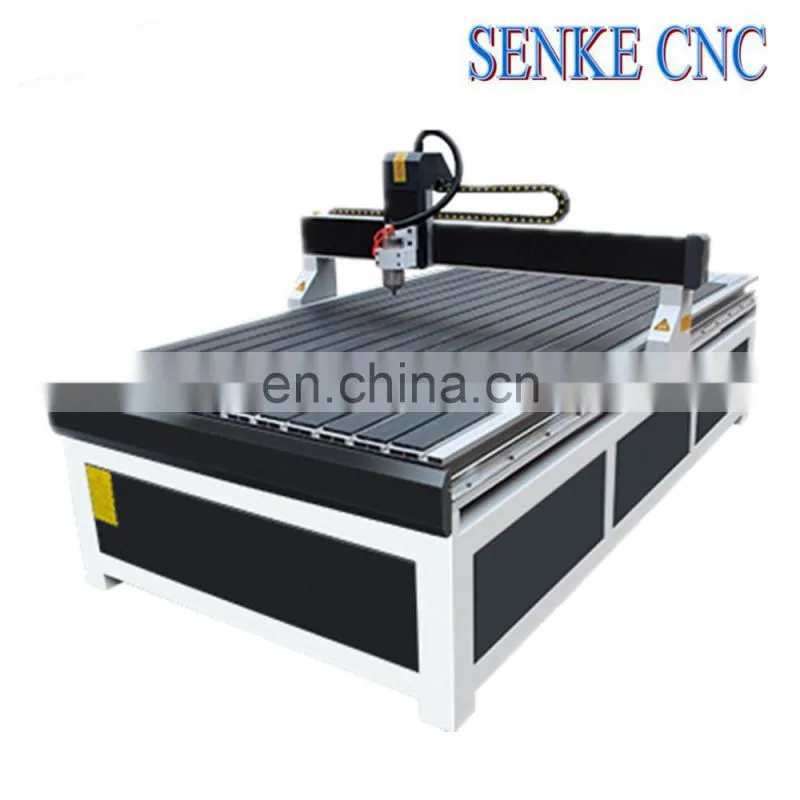

Economic price T-slot table cnc router 1224 for wood furniture carving or cutting jobs

Economic price T-slot table cnc router 1224 for wood furniture carving or cutting jobs

1. 3 axis transmission with Gemany/taiwan ball screws ensures stable and smooth movement of the machine.

2. Solid gantry, well structure of lathe bed,stable lathe table.

3. Application of driver with high definition and subdivision ensures fast speed and high accuracy.

4. High-speed spindle with water cooling system works vigorously with low noise,guarantee long time mass processing.

5. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.

6. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor

Technical Parameter:



Model	SKA-1212	SKA-1224
X/Y/Z working size	1200*1200*150mm	1200*2400*150mm
Table size	1750*1520*1400mm	1750*2720*1400mm
Spindle power	1.5KW/2.2KW/3.0KW water cooling (choose)
Spindle speed	0-24,000rpm
X/Y/Z movement	Taiwan/Germany ball screw
X, Y Resolution	<0.01mm
Max moving speed	18,000mm/min
Max engraving speed	10,000mm/min
Drive type	Stepper (servo optional)
Inverter power	1.5KW/2.2kw/3.7kw(depend on spindle choose)
Working voltage	AC220V/50Hz/60Hz
Working  Dictate	G-code
Operating system	NC-studio control ( DSP optional )
Software	Artcam/Type 3
Table type	T-slot table
Collect	ER20-25
Interface	USB
Flash Memory	128M
Packing size (L*W*H)	1.92*1.92*1.71M	3.1*1.9*1.73M
Gross weight	600kgs	800kgs

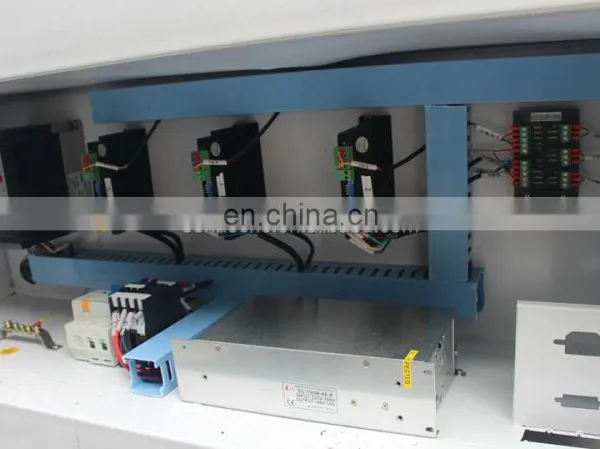

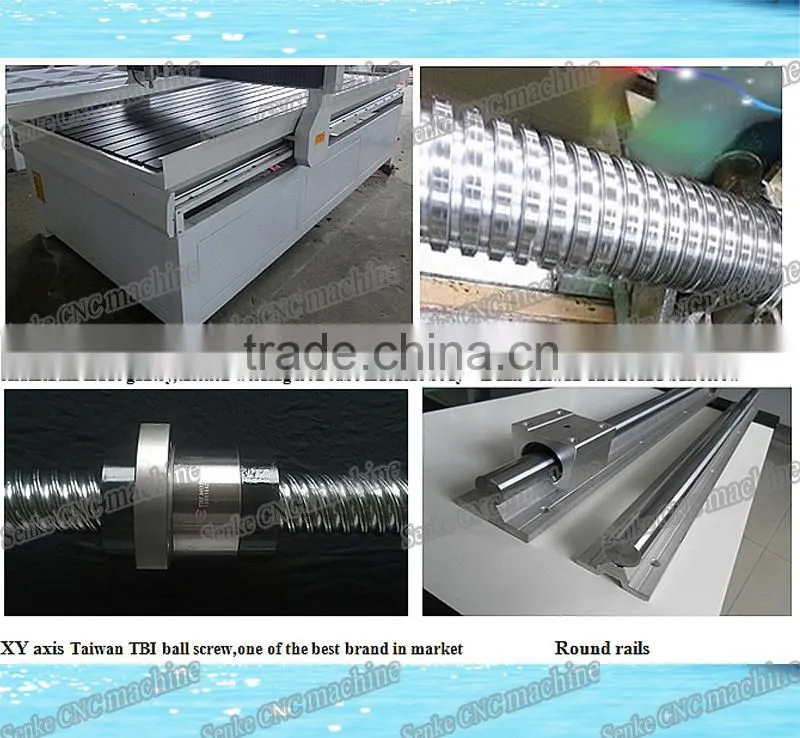

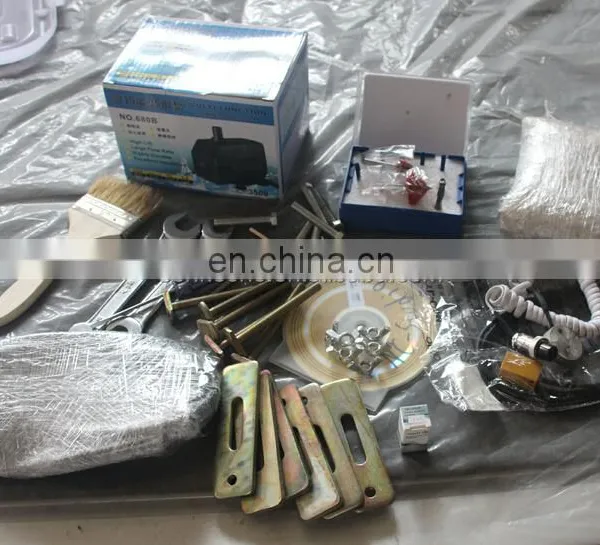

Machinery parts shows:





Applications:

Can be used for advertisement engraving and cutting, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing,Acryl ,wood,aluminum etc.

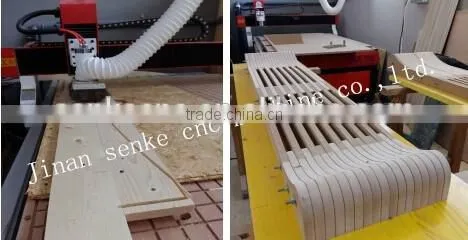

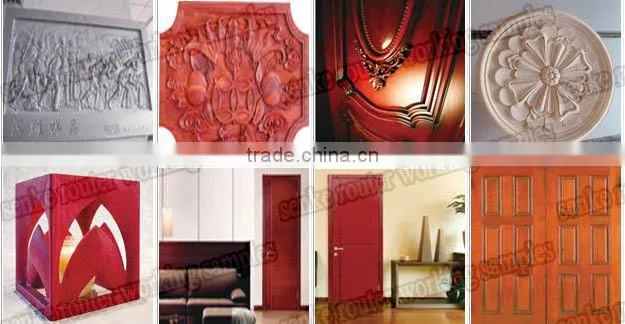

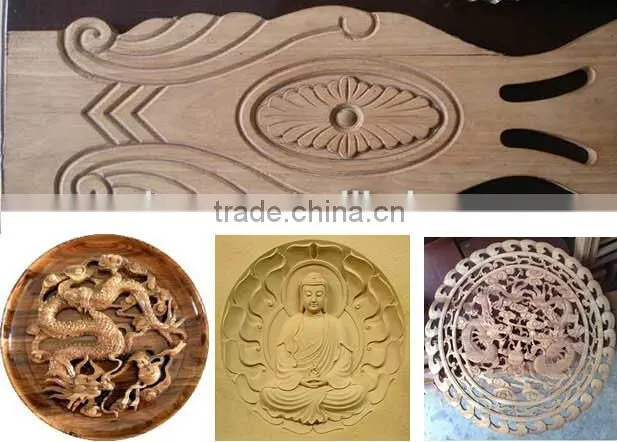

Samples:





FAQ
