Irregular size fabric and decorative items automatic fabric cutting machine
Product Description
Features:

1. Imported Taiwan square linear guide and Japan servo motor ensure high accuracy, fast cutting speed and stable working
performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no
deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Senke digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Specification
Model
SK-1325
SK-1625
SK-1310
SK-1618
customization
Working area (L*W)
2500×1300 mm
2500mm*1600mm
1100mm*1300mm
1800mm*1600mm
Cutting thickness
0.1-25.0 mm (depend on material)
Cutting precision
0.1mm
Max cutting speed
1200 mm/s (depend on material)
Transmission interface
Ethernet
Rated power
11KW
Working voltage
AC 110V 220V 380V±10%, 50HZ
Fixed type
Intelligent vacuum adsorption
Drive system
Servo motor, linear guide rail, rack and pinion
Safety device
Infrared sensors, 4 emergency stop buttons
Control panel
Liquid crystal display
Cutting extent
Through-cut
Standard configuration
Oscillating cutting tool, red light pointing, auto feeder
Optional configurations
Driven rotary cutting tool, punching tool (V-shape or circle shape), drawing tool, CCD camera, scanner, cradle(auto or normal),
package box
Operating characteristic
Work offline; 24 hours continuous and efficient working
Cutting material
All kinds of corrugated paper, grey cardboard, KT board, PVC expansion sheet, honey comb plate, light slide, PP gum, car sticker,
flag fabric, EPE foam, foam, arcylic etc.
Machine dimension
3300*2200*1100mm
3300*2280*1100mm
2200*1800*1000mm
2500*2280*1000mm

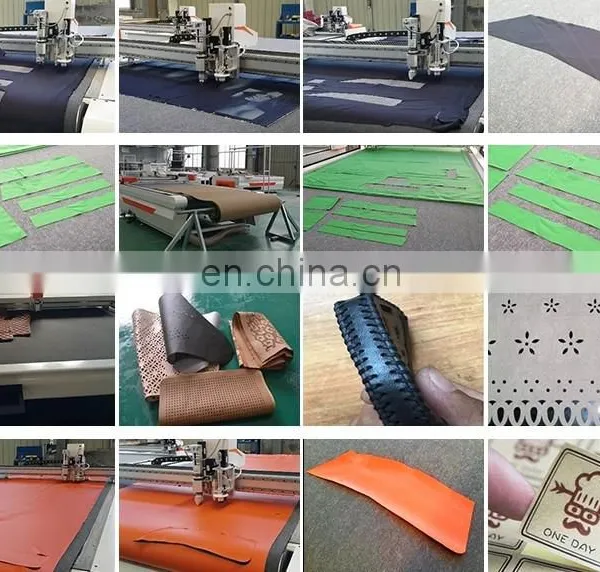

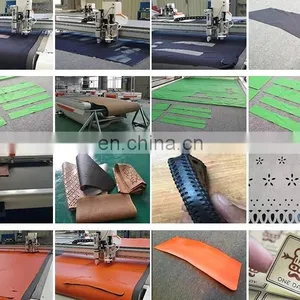

Samples
