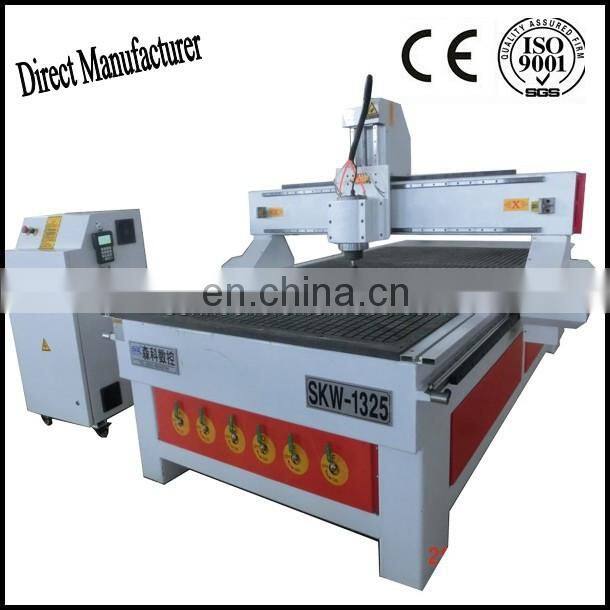

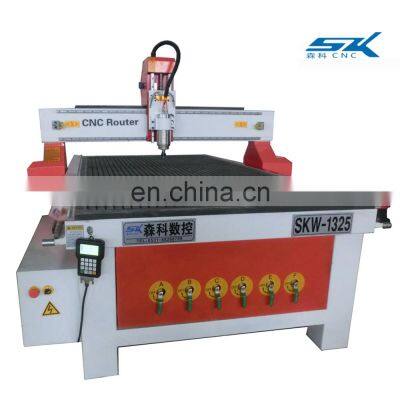

        3d design wooden pattern carving machine cnc routers 3 d SKW-1325

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

Product Description







Features:


1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.

4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press



parts show

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

Stepper motors                                                                                100% cooper transformer,with clearly                                                                                                                wires number and marks

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

 Z axis Taiwan TBI Brand ball screw,one                             Taiwan imported hiwin square rails

 of the best brand in market

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

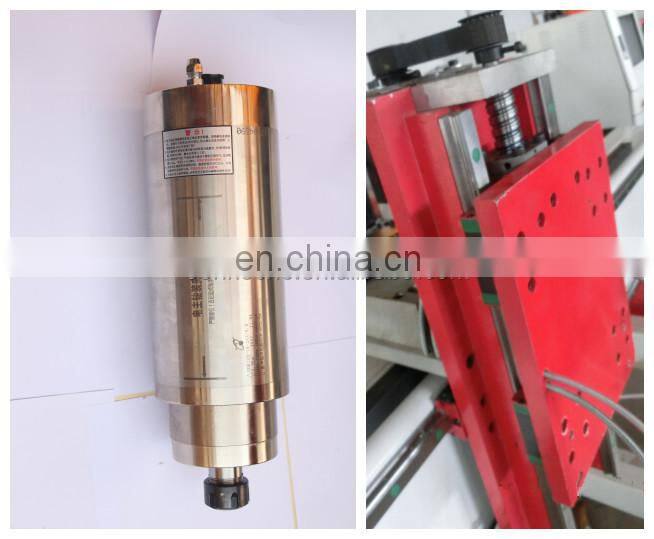

3.2kw HQD brand watercooling spindle,                          Thickened spindle support parts,with        one of the best brand,years use                                      hiwin square rails and 4 pieces blocks

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

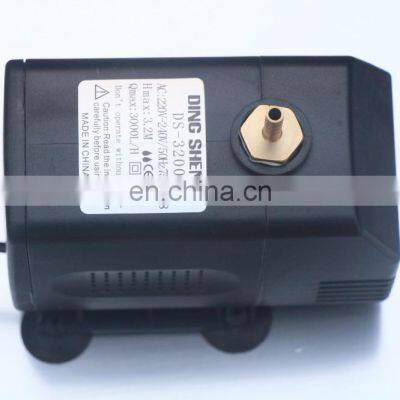

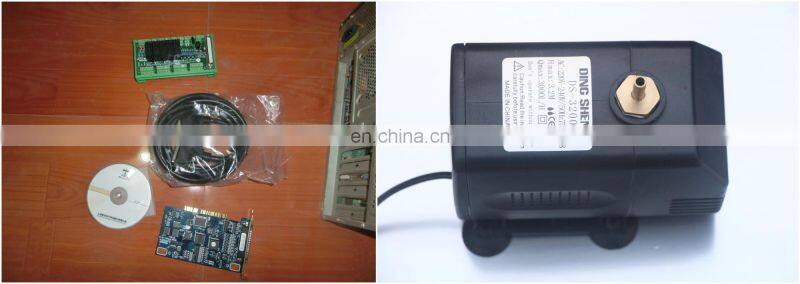

Nc-studio software                                                                    Waterpump,use to cooling down

                                                                                                      watercooling spindle



optional parts



 3d design wooden pattern carving machine cnc routers 3 d SKW-1325

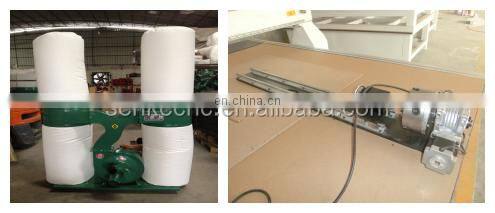

        Dust collection                                                        Rotary

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

       Aircooling spindle                                                       Vacuum table&vacuum pump



Techncial parameters:


Discription
Parameter
SKW-1325
SKW-1530
SKW-2040
Option
Working Area (X*Y*Zmm)
1300*2500*200mm
1500*3000*200mm
2000*4000*200mm
Sizes
customized
Body structure
Steel tubes
X, Y Structure
rack and pinion drive
Z Structure
Ball Screw/option gear wheel
X, Y Resolution
<0.01mm
Max Moving Speed
32000mm/min
Max Engraving Speed
20000mm/min
XYZ traveling positioning accuracy
0.03/300mm
XYZ repositioning accuracy
0.03mm
Spindle power
3kw/4.5kw/5.5KW/8KW(can be choices)
Spindle Speed
6000-24,000rpmrpm
Table style
Fixture/option vacuum table
Dust collection
Can add or not
Voltage
AC220V/50Hz
Drive type
Stepper/Option:servo
Working Dictate
G Code ,HPGL
Operating system
Dsp System/option syntec or LNC
Interface
USB
Flash memory
128M(U Disk)





Application  materials:



advertising signs, PVC plate,double-color board, sign making, acrylic cutting, moulds making for vacuum thermforming, letter cutting, brand making, PVC cutting, crystal board engraving, acrylic engraving, LED channel letter outline shaping etc



 3d design wooden pattern carving machine cnc routers 3 d SKW-1325





 3d design wooden pattern carving machine cnc routers 3 d SKW-1325





Senke Certifications

3d design wooden pattern carving machine cnc routers 3 d SKW-1325

Our Services
Warranty

 1.Two year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.



2.Lifetime maintenance free of charge.



3.Free training course at our plant.



4.24 hours on line service (MSN,Skype,Email ) every day, free technical support.



5.Machine has been adjusted before delivery , operation disk was included



1. Q: Are you a factory or trading company?
    A:We are a manufacturer with export license

2. Q: Can you do OEM?

    A: Yes, we can do OEM products.

         It's no problem.

3. Q: How does your factory do regarding quality control?
    A: "Quality is priority? Senke people always attach great importance to quality controlling from the very                      beginning to the very end:
   1).All raw material we used are environmental-friendly;
   2).Skillful workers care every details in handling the producing and packing processes;

   3).Quality Control Department specially responsible for quality checking in each process.
