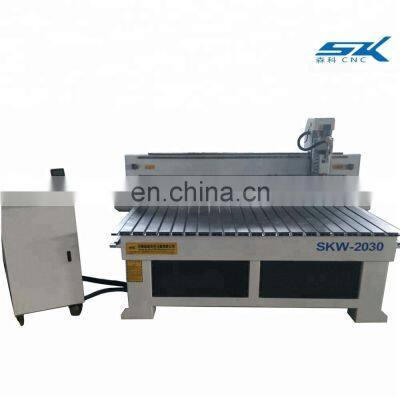

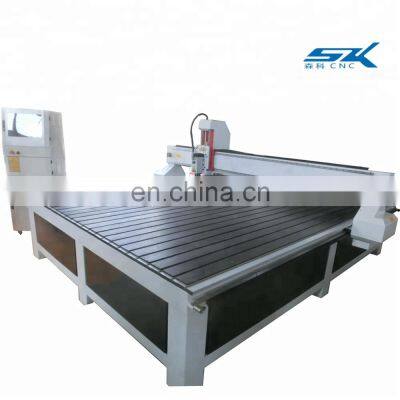

Cnc Carving Machine With Type3 Artcam UG Pro-E Mastercam Ucancam V9 Wentai Software
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SENKE Popular Model 1325 1530 3 Axis CNC Router Home Furniture Working MachineryNegotiableMOQ: 1 -
SENKE Hot Sale CNC Cutting Machine CNC Router Wood Engraving Machine 1325 1525NegotiableMOQ: 1
-
Senke Hot Sale 1325 3 Axis CNC Router Wood Carving Engraving MachineNegotiableMOQ: 1
-
Working MDF Milling Wood Engraving Multifunctional Door Furniture Working CNC Router MachineNegotiableMOQ: 1
-
High Feeding Height CNC Styrofoam Engraving Milling Machine Wood Stone EPS Molding Foam Mould CNC MachineNegotiableMOQ: 1
cnc carving machine with wentai software
Product Description

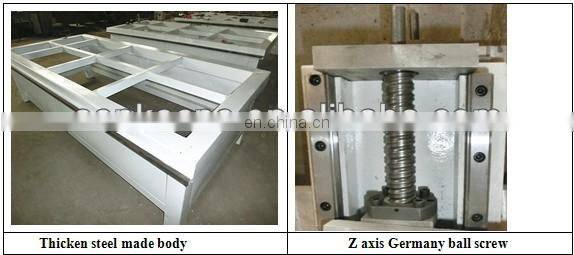

1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press
Techncial parameters:
|
Discription
|
Parameter
|
|||
|
SKW-1325
|
SKW-1530
|
SKW-2040
|
Option
|
|
|
Working Area (X*Y*Zmm)
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*4000*200mm
|
Sizes
customized
|
|
Body structure
|
Steel tubes
|
|||
|
X, Y Structure
|
rack and pinion drive
|
|||
|
Z Structure
|
Ball Screw/option gear wheel
|
|||
|
X, Y Resolution
|
<0.01mm
|
|||
|
Max Moving Speed
|
32000mm/min
|
|||
|
Max Engraving Speed
|
20000mm/min
|
|||
|
XYZ traveling positioning accuracy
|
0.03/300mm
|
|||
|
XYZ repositioning accuracy
|
0.03mm
|
|||
|
Spindle power
|
3kw/4.5kw/5.5KW/8KW(can be choices)
|
|||
|
Spindle Speed
|
6000-18,000rpmrpm
|
|||
|
Table style
|
Fixture/option vacuum table
|
|||
|
Dust collection
|
Can add or not
|
|||
|
Voltage
|
AC220V/50Hz
|
|||
|
Drive type
|
Stepper/Option:servo
|
|||
|
Working Dictate
|
G Code ,HPGL
|
|||
|
Operating system
|
Dsp System/option syntec or LNC
|
|||
|
Interface
|
USB
|
|||
|
Flash memory
|
128M(U Disk)
|
|||
|
Software Compatability
|
Type3/Ucancam Artcam
|
|||
|
Running Enviroment
|
Temperature: 0-45
|
|||
spindle--aircooling or watercooling for choose

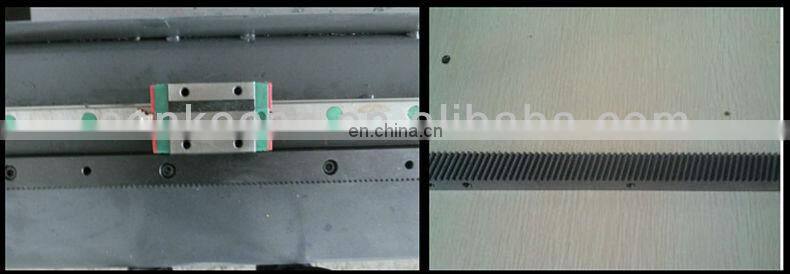

High precision Square rail and Taiwan miko Gear reck
DSP control box/NC-studio/Syntec optional
Vacuum table and dust collection aded as customer need
Other parts of our machine
Applicable industrial:
It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing. Also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry

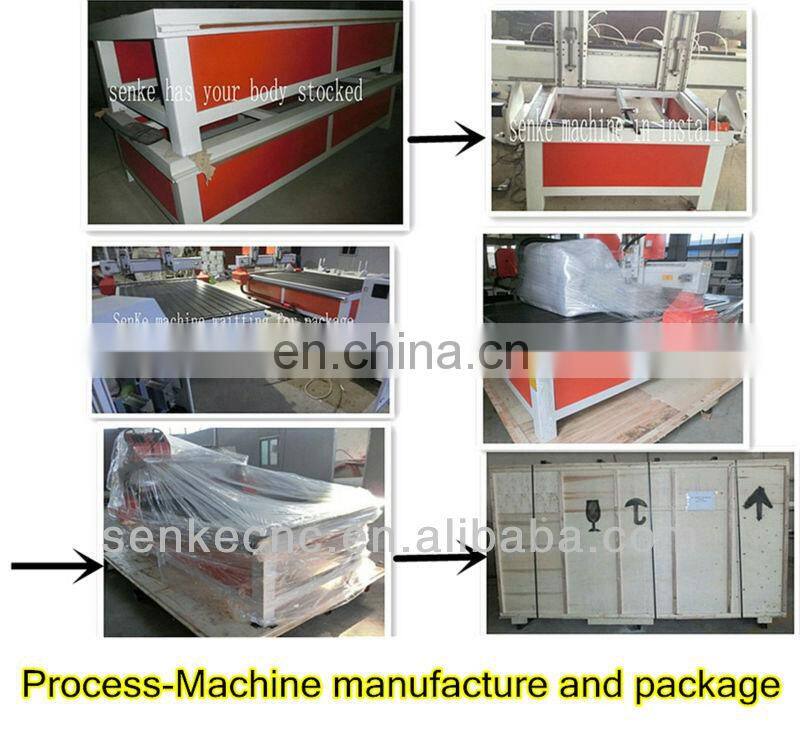

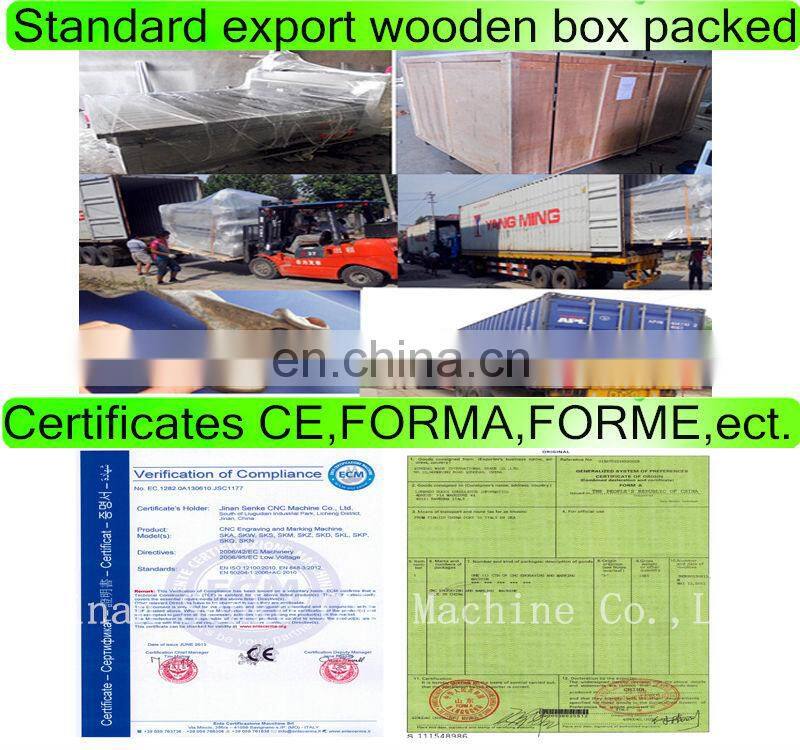

Packaging & Shipping
Thanks for your valuable time.:-)
