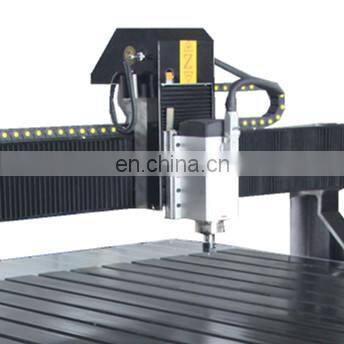

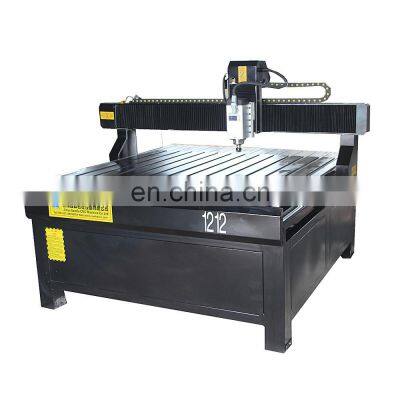

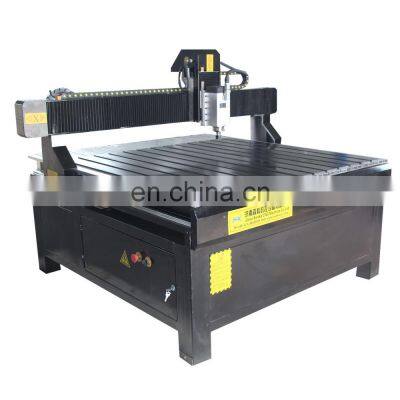

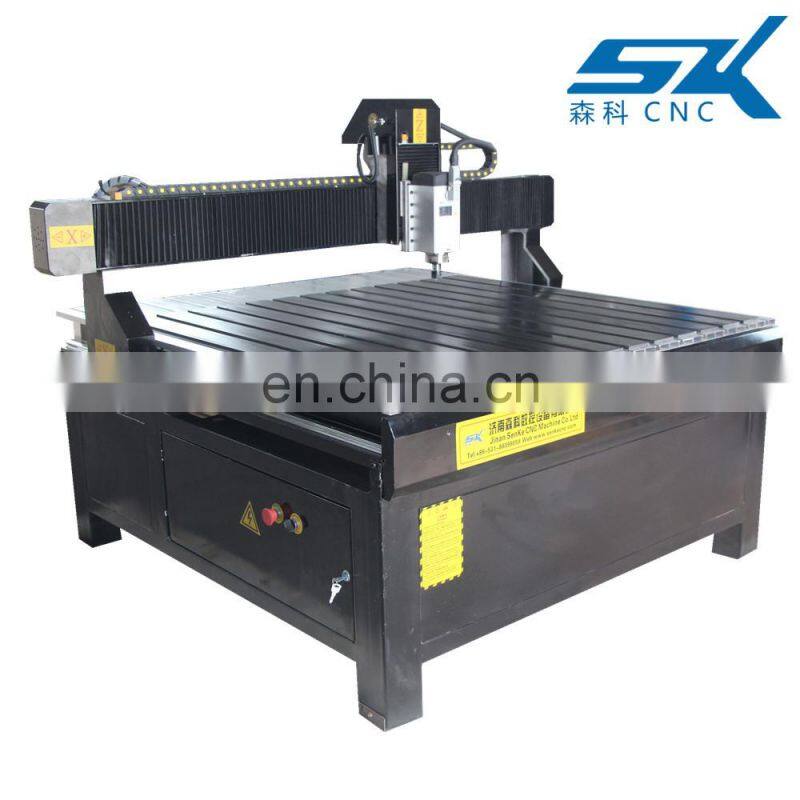

1212 Cnc Route Furniture Door Industry Using Wood Carving Machine Price With Rotary Attachment Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jinan Factory Price Cnc Router Machine 1325 Woodworking Machine CNC Machine for WoodNegotiableMOQ: 1 -
Jinan Factory Price Cnc Wood Router 1325 Plywood Stone Working Machine With RotaryNegotiableMOQ: 1
-
3d Furniture Sculpture Wood Carving Cnc Router Machine Used to Cut and Engrave for Rotary CylinderNegotiableMOQ: 1
-
1325 Cnc Router Machine 3 Axis 3.0KW HSD/HQD Brand Air Cooling Cnc Wood Working Machine Thicken Steel Made NC Studio ArtcamNegotiableMOQ: 1
-
Multi Heads Cnc Router Machine SKW 1300*2500mm for Wood Acrylic MetalNegotiableMOQ: 1
Product Description
Model | SKW-1212, SKW-1325 | ||||
Body structure | Thicken steel made | ||||
X, Y Structure | Taiwan Miko rack and pinion | ||||
Z Structure | Taiwan TBI ball screw | ||||
X, Y Resolution | <0.01mm | ||||
Max Moving Speed | 80000mm/min | ||||
Max Engraving Speed | 20000mm/min | ||||
XYZ traveling positioning accuracy | ±0.01mm | ||||
XYZ repositioning accuracy | ±0.01mm | ||||
Spindle power | 2.2KW HQD water cooling spindle | ||||
collect | ER25 | ||||
18Spindle Speed | 18,000rpm | ||||
Voltage | 220v/single or 380v/3phase or as customer needed | ||||
Drive type | Leadshine stepper or servo motor&driver | ||||
Working Dictate | G Code,*uoo,*mmg,*Nc.*plt | ||||
Operating system | NC-studio, DSP, Mach3... | ||||
Interface | USB | ||||
Tool sensor | Yes,included | ||||
package | Export wooden box | ||||
G.W | 980kgs | ||||
Main Features
1. X,Y axis transmission with gear rack, Z axis TBI ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3.Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press.
