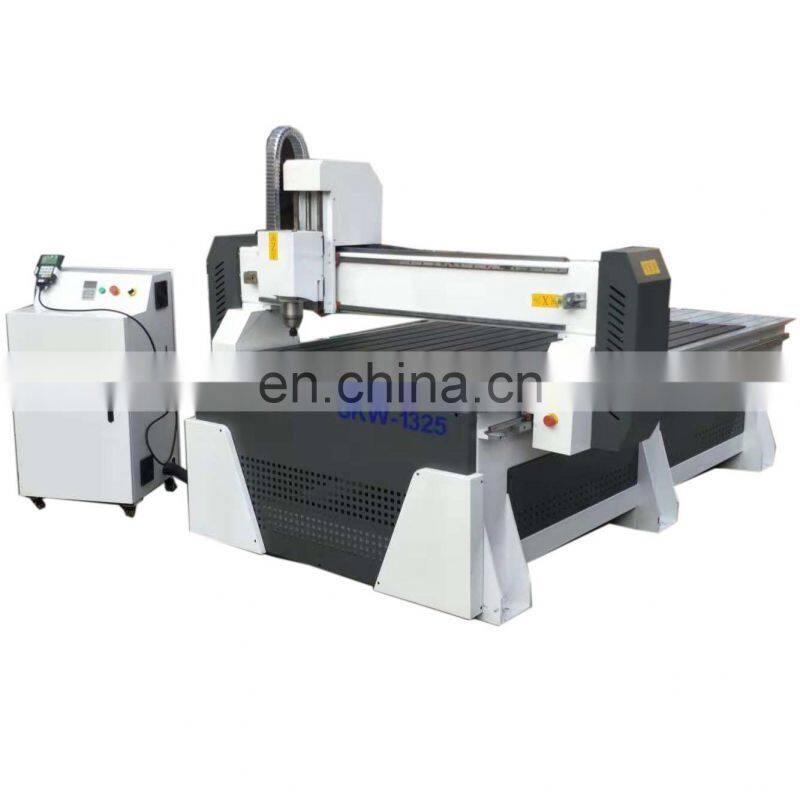

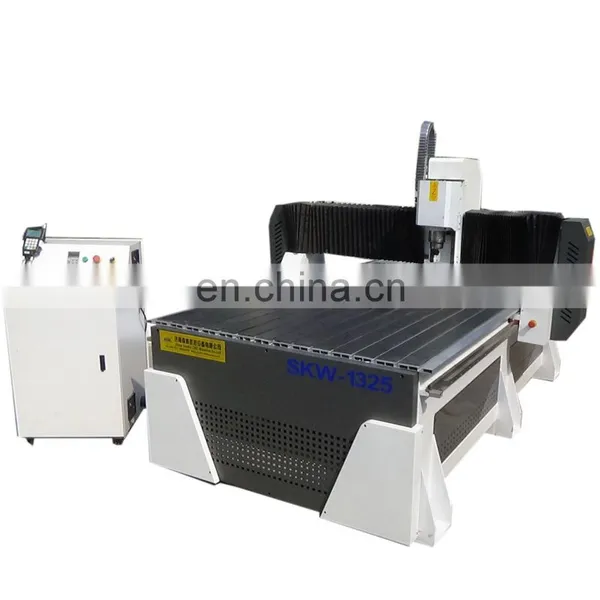

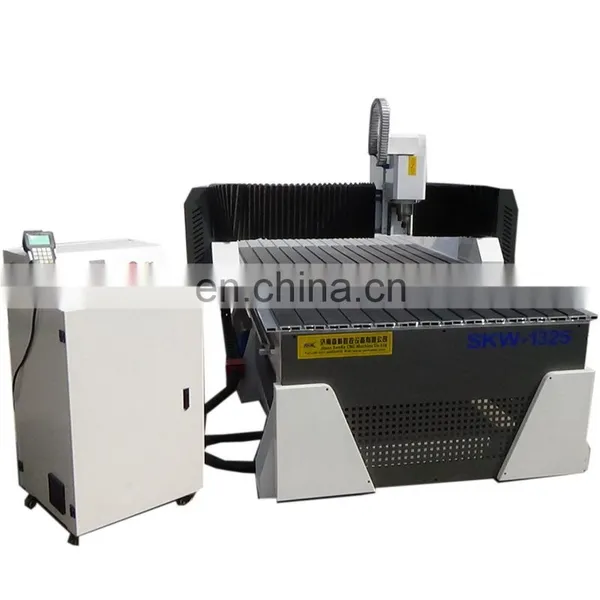

Jinan Cheap Engraving And Cutting Machine Model 1325 1530 2040 Cnc Router
Features:
1.All of the spindles can work together to save your time and costs,while any one of them can work alone,too.
2.We can supply 2-8 spindles for a machine.The number and power of the spindle are to be adjusted by the consumer's needs.
3.You can adjust the distance between two spindles to satisfy your requirments.
4.The solid and permanent structure plus unique design make the machine with long service lite performs well.
Technical parameter :
|
Discription |
Parameter |
|||
|
SKW-1325 |
SKW-1530 |
SKW-2040 |
Option |
|
|
Working Area (X*Y*Zmm) |
1300*2500*300mm |
1500*3000*300mm |
2000*4000*300mm |
Sizes customized |
|
Body structure |
welding |
|||
|
X, Y Structure |
Taiwan hiwin rack and pinion drive |
|||
|
Z Structure |
Germany ballscrew |
|||
|
X, Y Resolution |
<0.01mm |
|||
|
Max Moving Speed |
35000mm/min |
|||
|
Max Engraving Speed |
18000mm/min |
|||
|
XYZ traveling positioning accuracy |
±0.03/300mm |
|||
|
XYZ repositioning accuracy |
±0.03mm |
|||
|
Spindle power |
2.2KW/3.0KW//4.5KW/7KW(can be choices) |
|||
|
Spindle Speed |
0-24,000rpmrpm |
|||
|
Table style |
Double use vacuum table/T-slot option |
|||
|
Dust collection |
yes |
|||
|
Voltage |
380V/50Hz/60HZ |
|||
|
Drive type |
Stepper/Option:servo |
|||
|
Working Dictate |
G Code |
|||
|
Operating system |
DSP System/option syntec or LNC |
|||
|
Interface |
USB |
|||
|
Flash memory |
128M(U Disk) |
|||
|
Running Environment |
Temperature: 0°C~45°C |
|||

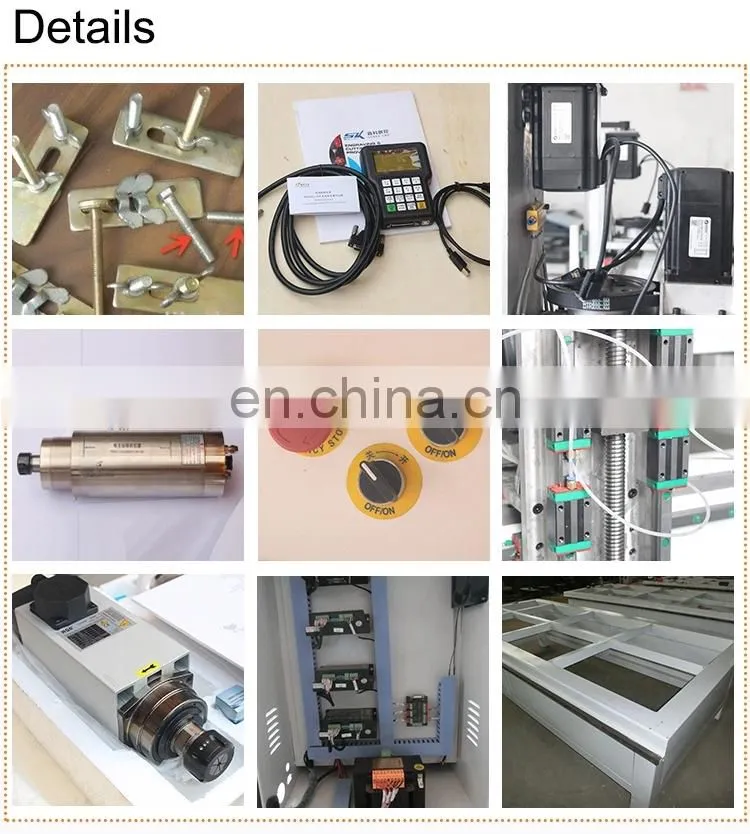

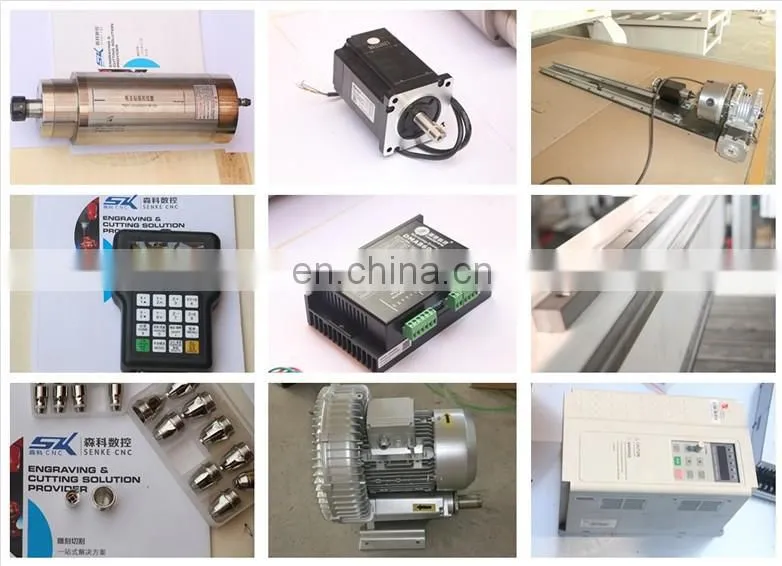

Main parts
Applicable industry
Woodworking industry:Classical funitures' processing.
Advertising industry
Advertising signs,logo marking,acrylic cutting,plastic molding,advertising decorative products of different materials.
Other industries: Carving series,relievo series,widly used in handicraft industry

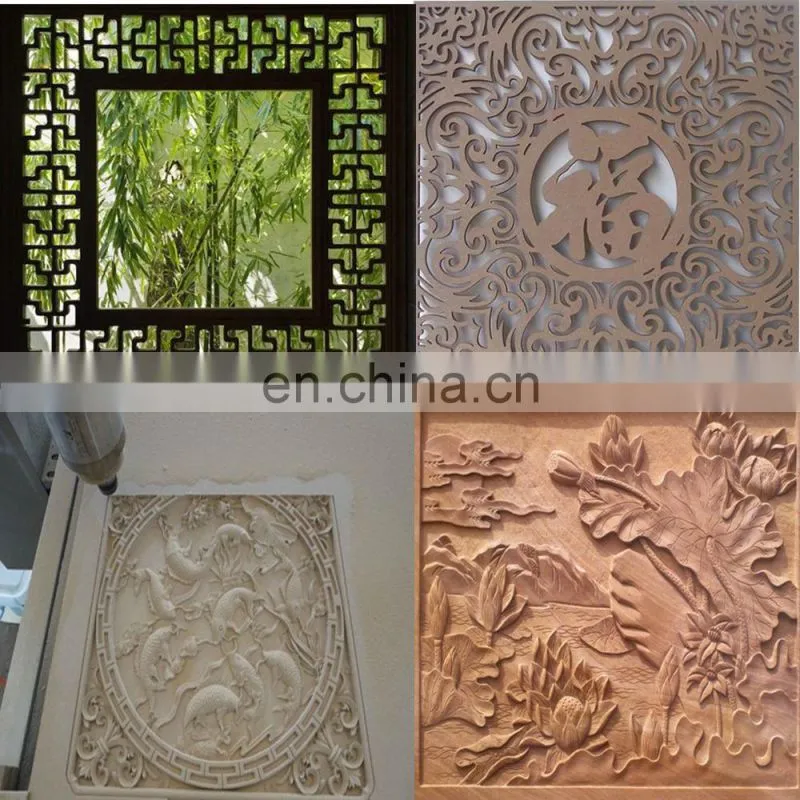

samples
We have other machine is optional
The feedback from clients
