Plywood / MDF board laser cutter cnc machine/ wood die cutting laser cut machine
We pay attention to any detail of our Every set CNC Router Machine,
we provide the best Abroad Service for Every Customer !
Brief introduction:

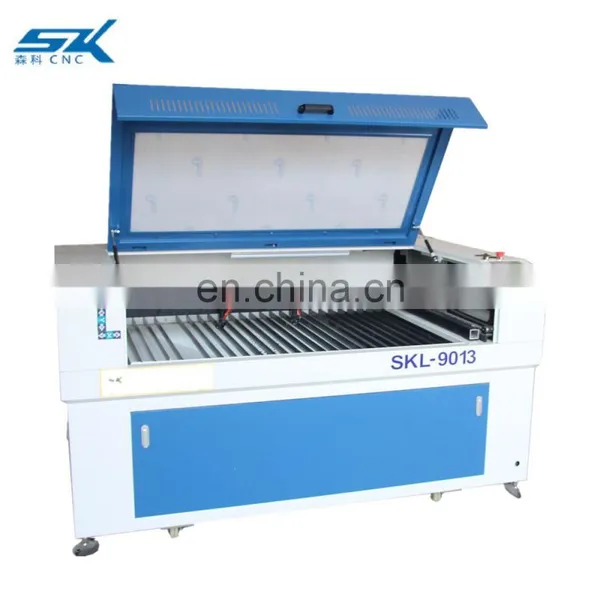

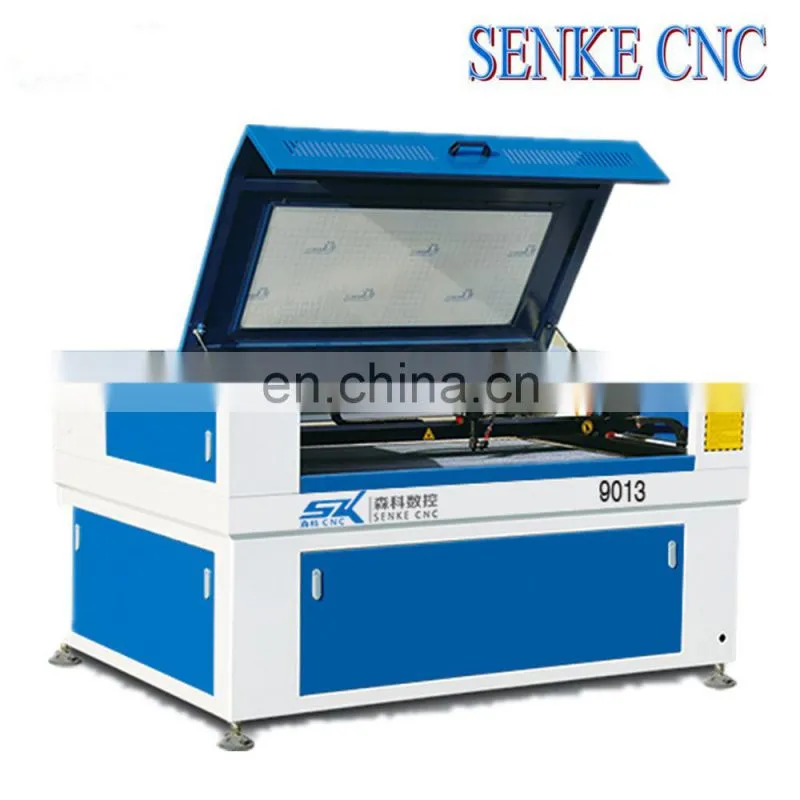

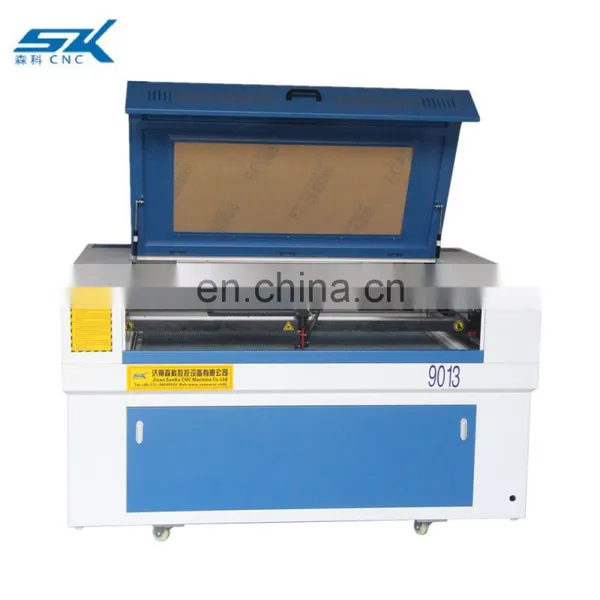

1390 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost performance.|
Name: |
1390 |
|
Processing area |
1300mm*900mm (4feet*3feet) |
|
Laser power |
60W,80W,100W,130W,150W |
|
Laser type: |
Sealed Co2 glass laser tube |
|
Cooling mode: |
Water cooling and protection system |
|
Resetting positioning accuracy: |
±0.01mm |
|
Compatible Software: |
Laser cut 5.3, CorelDraw AutoCAD Photoshop |
|
Whole machine size: |
1450mm*1200mm*1000mm |
|
Engraving speed |
1-6000mm/min |
|
Cutting speed |
1-1000mm/min |
|
Resolution ratio |
≤0.0125mm |
|
Position system: |
Red dot |
|
Interface: |
USB |
|
Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
|
Support graphic format |
DST, PLT, BMP, DXF |
|
Gross power |
1000W |
|
Driving mode: |
DC0.8A 24V stepper motor |
|
Cooling mode: |
Circulation water cooling |
|
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
|
Operating temperature |
0-45C |
|
Operating humidity: |
5-95% |

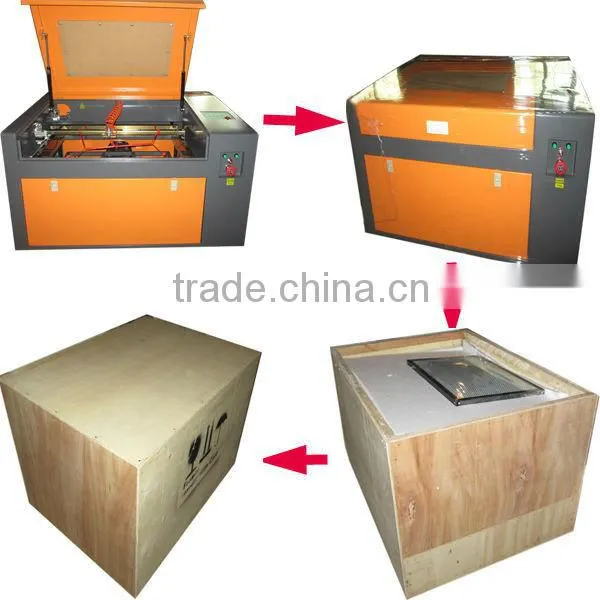

Double paking of protective film and fumigation-free wooden case:
Guarantee & After Sales Service:
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.24 hours on line service (MSN,Skype,Email ) every day, free technical support.
4.Machine has been adjusted before delivery , operation disk was included
Really thanks for your valuable time.o(n_n)o~
