Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine

Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine thumbnail-1
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine thumbnail-2
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine thumbnail-3
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine thumbnail-4
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine thumbnail-5
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine photo-1
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine photo-2
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine photo-3
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine photo-4
Window Chair Cabinet Door Stair Carving Engraving 4 Axis 12 Heads Stair Cnc Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Jinan Senke CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

 Window Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machine





Technology

Description

Parameter

4th rotary axis max diameter

150mm

Machine dimension

3500mm*2100*2000mm

Resolution

0.01mm

Lathe structure

Seamless welded steel structure

X,Y structure

Rack and pinion transmission,

Hiwin square guide rail

Z structure

Imported ball screw

Max. idling speed

35m/min

Spindle motor power

2.2 KW

Spindle rotate speed

0-24000r/min

Working voltage

AC380V/50Hz  or can be customized

Working mode

Yaskawa servo motor

 the control system

DSP(A18) control system/ Option NC Studio

Cooling mode

water-cooling

Head

8/12heads

Rotary

8/12 rotaries

 Performance:

1. four axis machine, with 8 Rotaries and 8 spindles, which can work at the same time or independently,

 and every one's max effective working area is 150mm(diameter) by 1000mm(length).

2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .

3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

4.Has the 4th rotary which is used for engraving cylinder workpiece.

5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/ Castmate/Wentai etc.

6.Has the function of re-carving after break point and power failure

7. Adopting advanced YASAKWA servo motor and DSP(A18) control system .

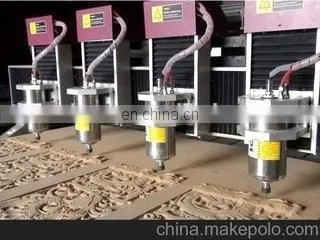

Main partsWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machine



  Samples ShowWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machine
Window Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machineWindow Chair Cabinet Door stair carving engraving 4 axis 12 heads stair cnc machine
FAQ                                                                                         -------- SENKE --------



Q1: I knew nothing about this machine, what kind of machine i should choose?
     Very easy to choose. Just tell us what you want to do by using CNC router, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
     We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
    We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our cnc router, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials:Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
