Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines

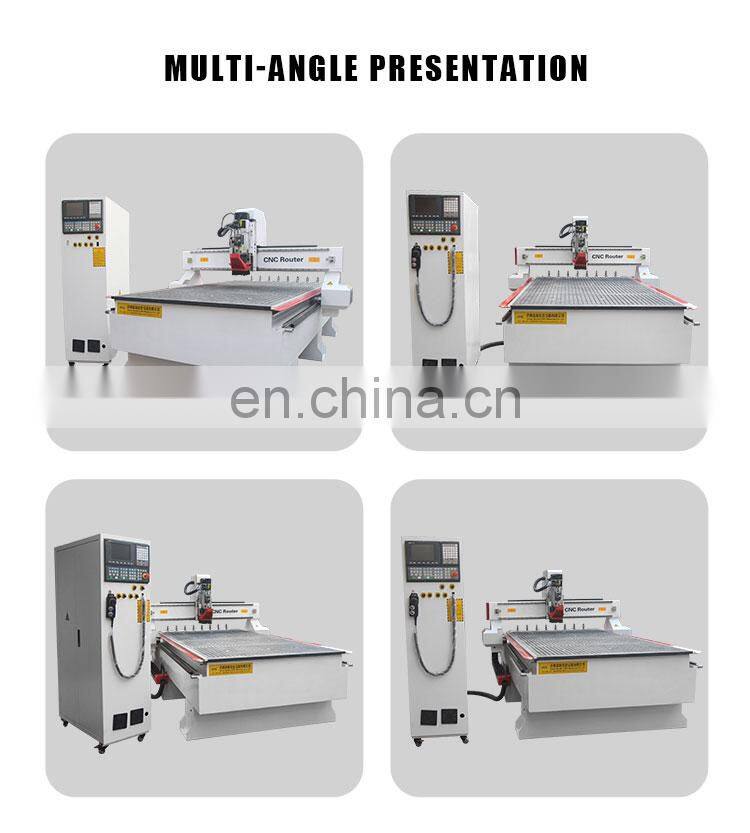

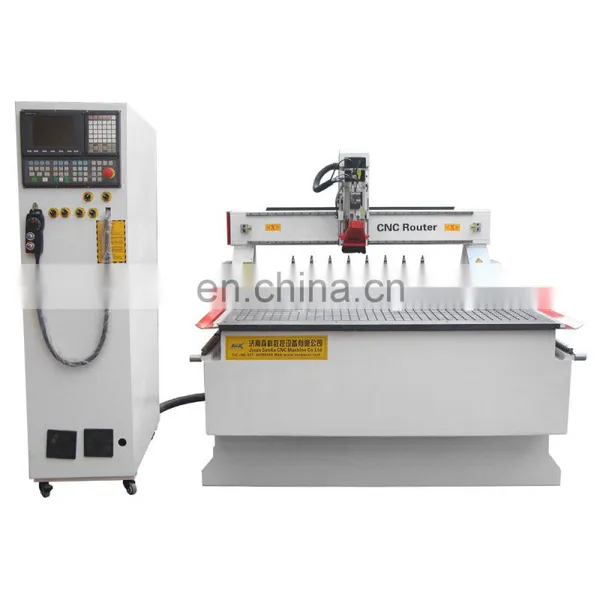

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines photo-1

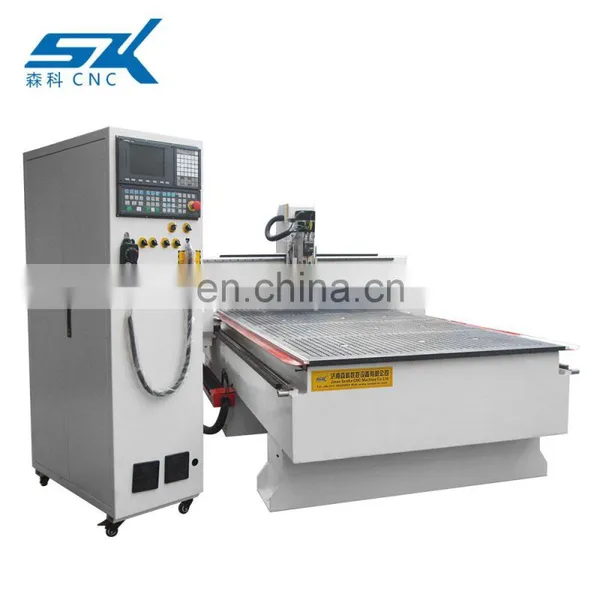

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines photo-2

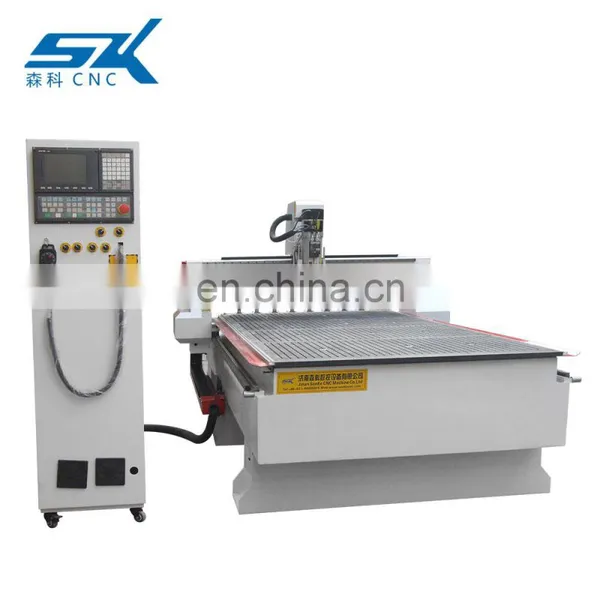

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines photo-3

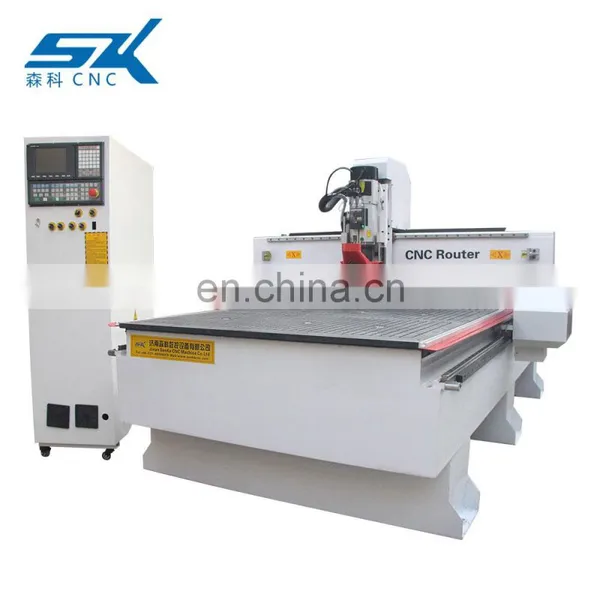

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines photo-4

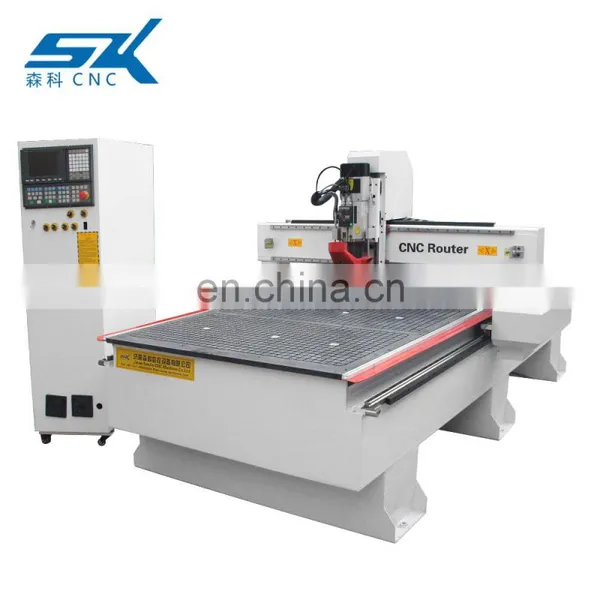

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

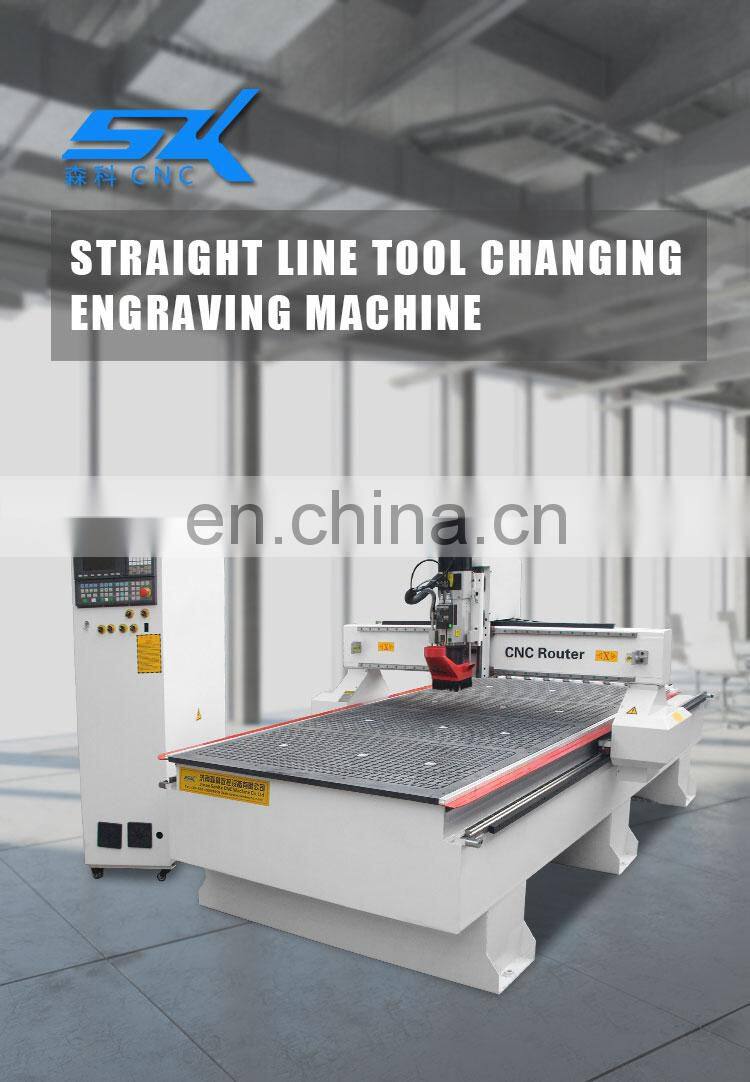

Senke Brand With Vacuum Table And ATC In Line Straight Line Tool Changing Engraving Machines
Product Description

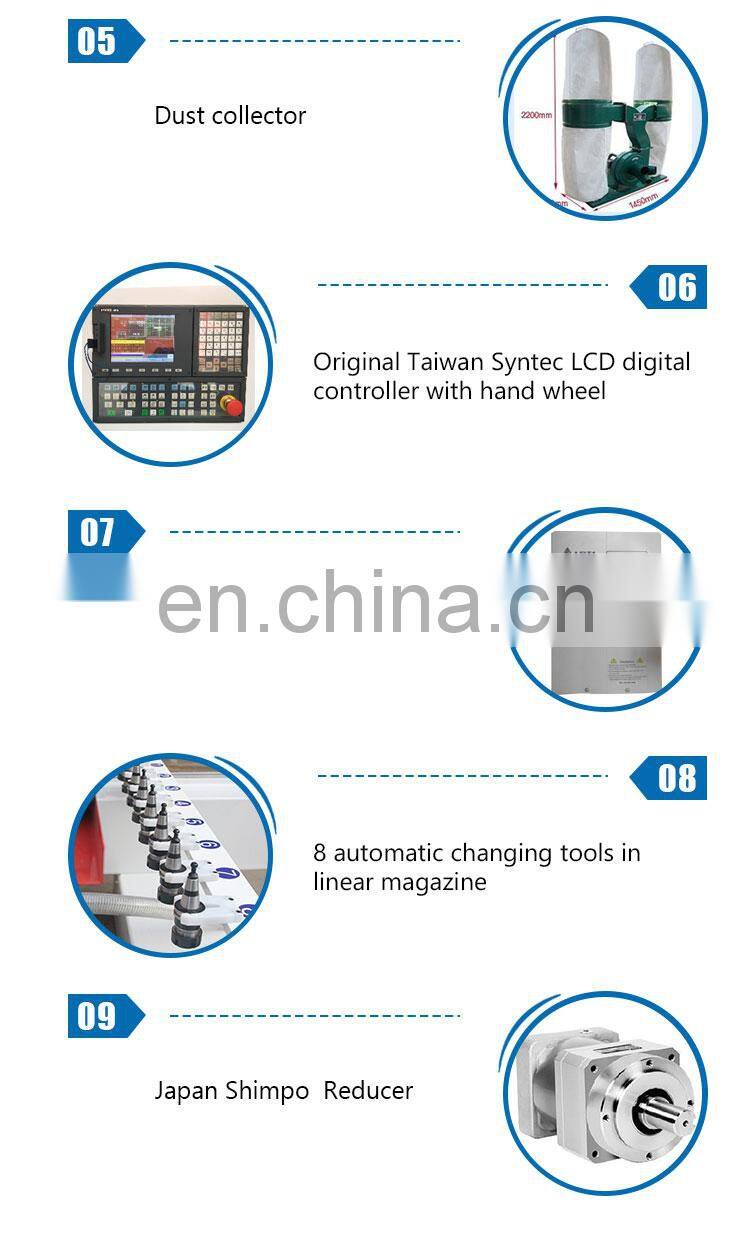

Machine parts
Machine Parts

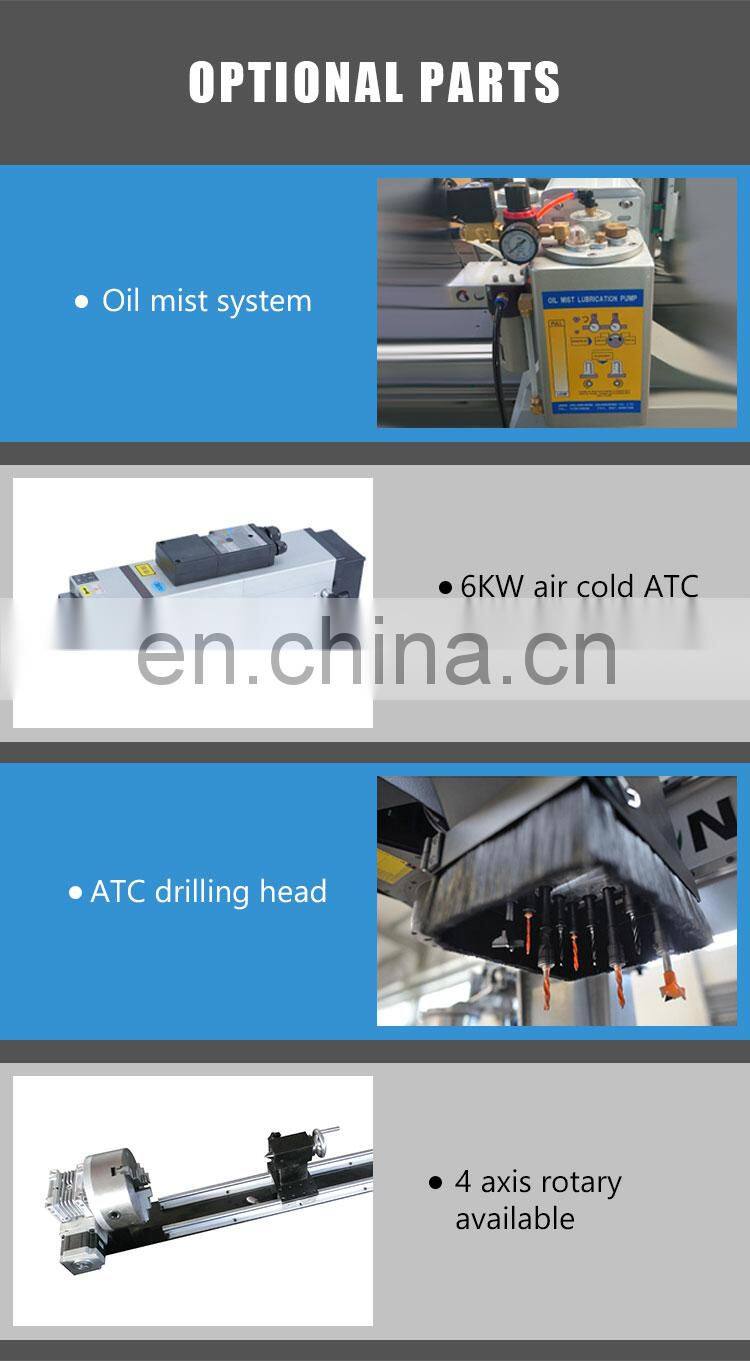

Optional Parts
Optional Parts
Specification
Model
SKW-1325L
SKW-1530L
SKW-2040L
X,Y,Z axis working g area
1300*2500mm
1500*3000mm
2000*4000mm
X,Y movement
Rack and pinion
Rack and pinion
Rack and pinion
Z movement
Ballscrew transmission
Ballscrew transmission
Ballscrew transmission
Guide
Taiwan HIWIN/PMI 25-30 square rails
Taiwan HIWIN/PMI 25-30 square rails
Taiwan HIWIN/PMI 25-30 square rails
Max idling speed
60000mm/min
60000mm/min
60000mm/min
Max engraving speed
30000mm/min
30000mm/min
30000mm/min
Spindle power
9kw Italy aircooling spindle
9kw Italy aircooling spindle
9kw Italy aircooling spindle
Spindle speed
18000rpm
18000rpm
18000rpm
Interver
11kw
11kw
11kw
Driver motors
Japan Yaskawa servo motors
Japan Yaskawa servo motors
Japan Yaskawa servo motors
Tool magazine
6/8/10 pieces inline type
6/8/10 pieces inline type
6/8/10 pieces inline type
Drivers
Servo drivers
Servo drivers
Servo drivers
Control system
Tiwan SYNTEC control
Tiwan SYNTEC control
Tiwan SYNTEC control
Working voltage
380V or customized
380V or customized
380V or customized
Command code
G code
G code
G code
Software
Artcam,type 3,etc
Artcam,type 3,etc
Artcam,type 3,etc
Samples
Samples
Packing & Delivery
export wooden box/plywood box
Company Profile
Company Profile
Our Services
FAQ
1. who are we?
We are based in Shandong, China, start from 2012,sell to South Asia(13.00%),Mid East(9.00%),Domestic Market(9.00%),Western Europe(9.00%),Southeast Asia(9.00%),North America(9.00%),Central America(9.00%),Oceania(8.00%),Africa(7.00%),South America(6.00%),Eastern Asia(4.00%),Eastern Europe(4.00%),Northern Europe(3.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cnc router,wood working machine,stone engraving machine,laser cutting machine,plasma cutting machine

4. why should you buy from us not from other suppliers?
1.manufacturer directly petitive prices and quality guarantee(2 years) 3.timely support, door to door service available 4.the only one who pass strict quality check,supply Army cnc routers. 5.5 years OEM supplied 6.365 days,24 hours available

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
