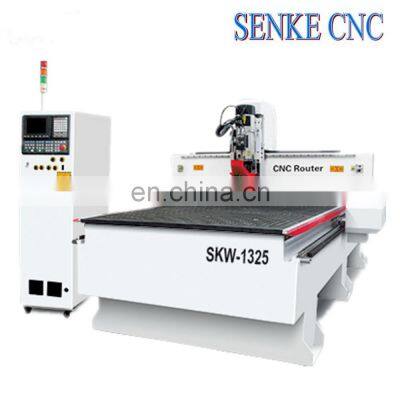

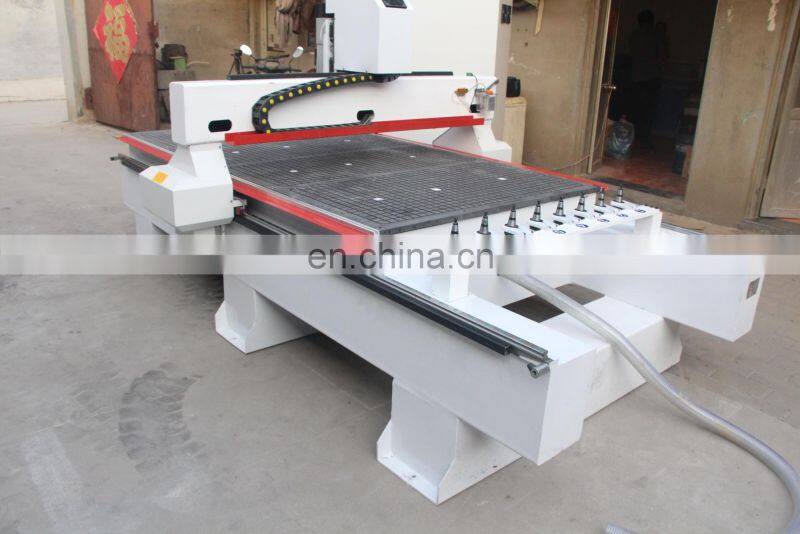

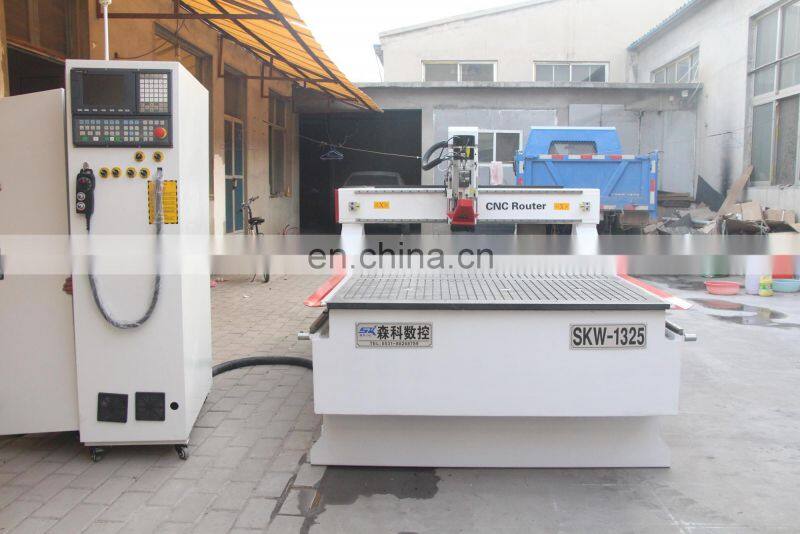

Italy 9kw Air cooling spindle cnc engraving machine made in germany SKW-1325L
Main features:
1.taiwan imported syntec control system,LCD screen touch operate with easy learn,fully function,.

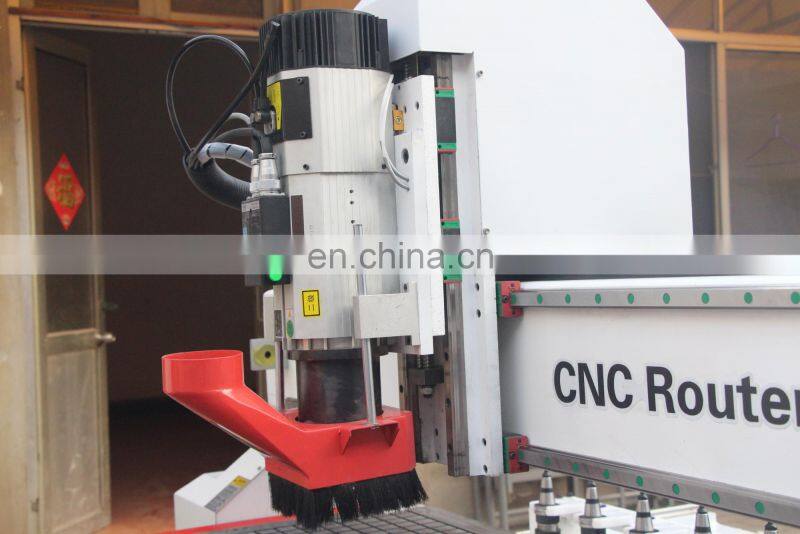

2. Italy imported HSD brand 9kw aircooling spindle,supply enough strong power,stably run and use,at the same time higher precision
3. japan imported yaskawa servo motors and drivers,high speed,long life and higher precision
4. big size gear rack keep the machine run stabely
5. Taiwan imported hiwin/pmi 25-30 square rails.
6. dust collect and vacuum table for optional choose.
Technical Parameter:
|
Model |
SKW-1325L/SKW-1530L/SKW-2030L etc |
|
X,Y,Z axis workin g area |
1300*2500*300mm |
|
Machine size |
3.1*2.2*1.78m |
|
X,Y movement |
Rack and pinion |
|
Z movement |
Ballscrew transmission |
|
Guide |
Taiwan HIWIN 25-30 square rails |
|
Max idling speed |
60000mm/min |
|
Max engraving speed |
30000mm/min |
|
Spindle power |
9KW Italy HSD aircooling spindle |
|
Spindle speed |
18000rpm |
|
inverter |
11kw |
|
Drive motors |
Japan Yaskawa 750w servo motors |
|

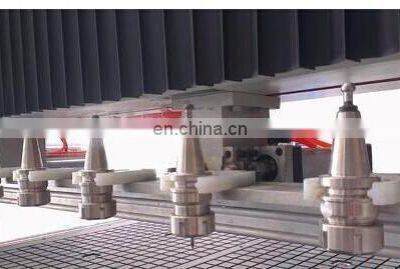

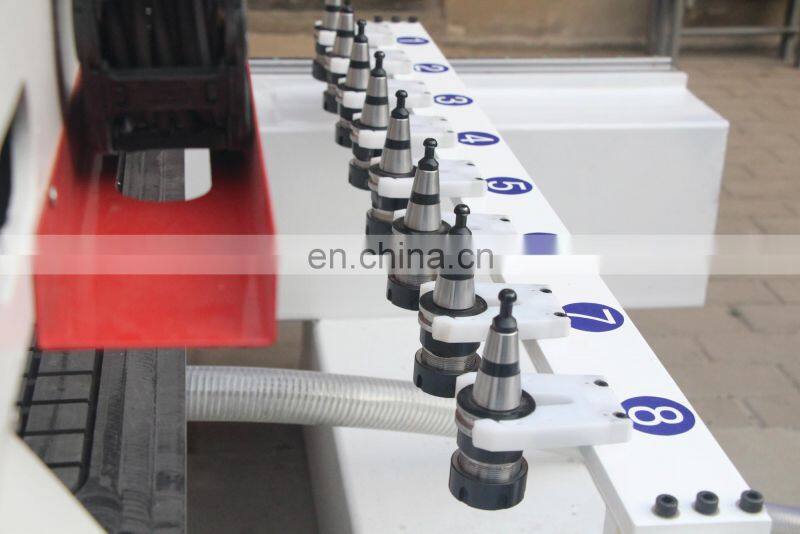

Tool magazine |
6,8,12 pieces,circular disk/inline type |
|
drivers |
Servo drivers |
|
Control system |
Taiwan SYNTEC control |
|
Working voltage |
380V or customized |
|
Command code |
G code |
|
software |
Artcam,type 3,etc |
|
collet |
ER32-ER40 |
|
Packing dimension(L*W*H) |
3.5*2.3*1.89M |
|
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.vacuum table,5.5kw vacuum pump 4.whole set dust collector system |
|
Youtube Video Connection for reference |
http://youtu.be/AnV_97A6Mvo
|

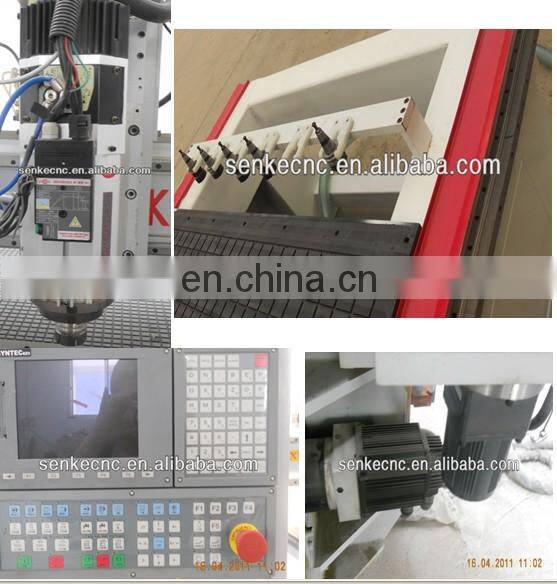

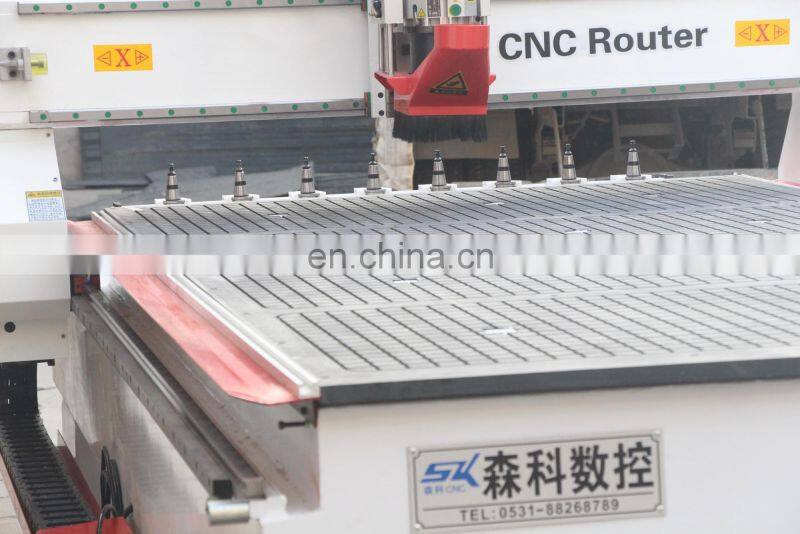

Main parts:
Applicable industry:
1. The furniture industry:
2.Decoration industry:
All kinds of decorative painting, screen, decorative pattern, three-dimensional wave board, sound-absorbing panels and other decoration carving processing.
3. musical instrument industry:
Jean head processing, the surface of the guitar semi-finished products processing, and various instruments decorative pattern engraving and 3 d surface.
4.Acrylic cutting and carving, acrylic blister model making, badges and all kinds of carving and production of sign
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Questions and answers:
1,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 10 to 15 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Waterroof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
Our factory and work team:
