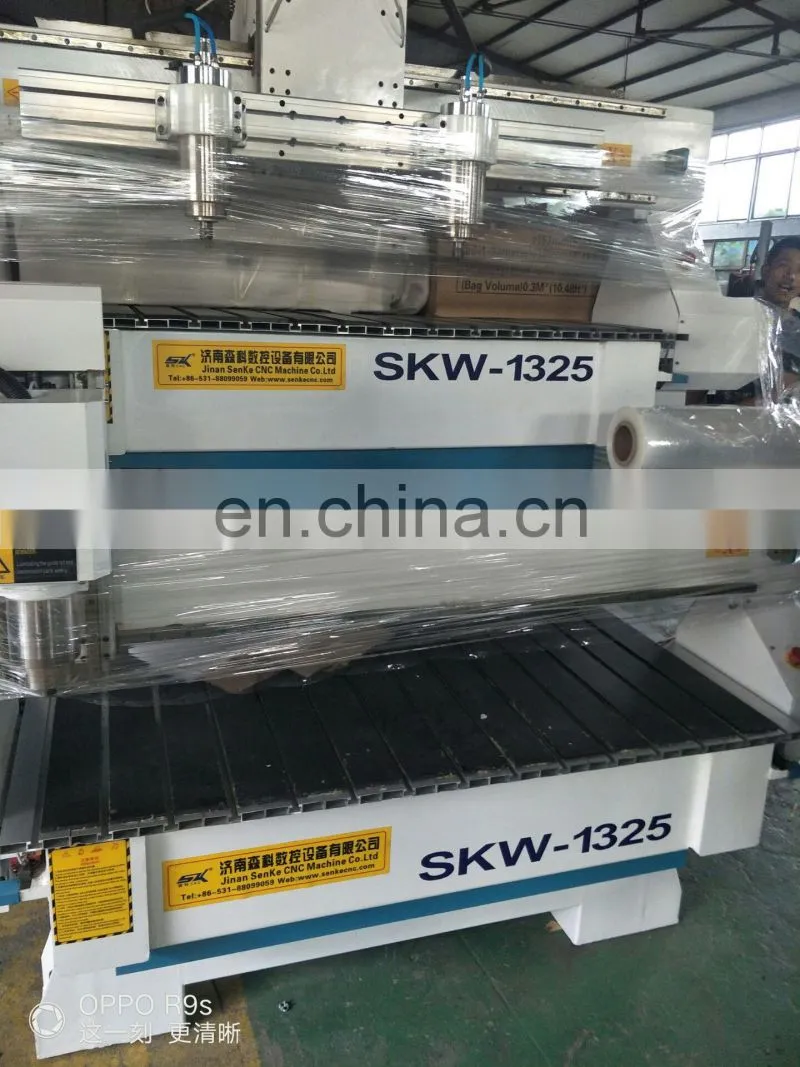

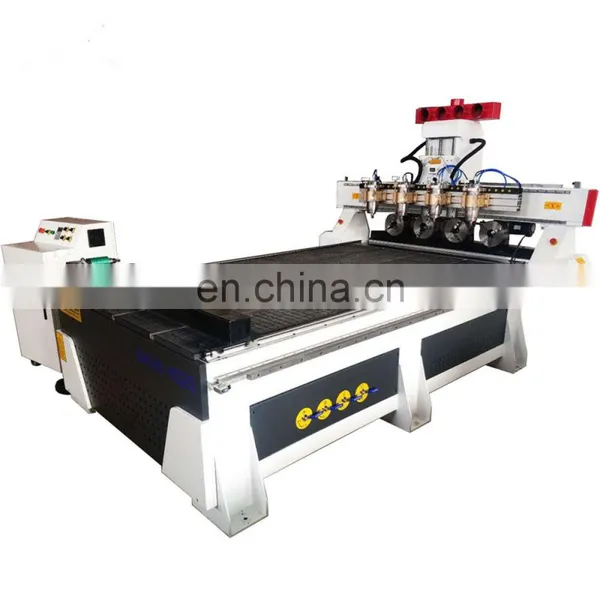

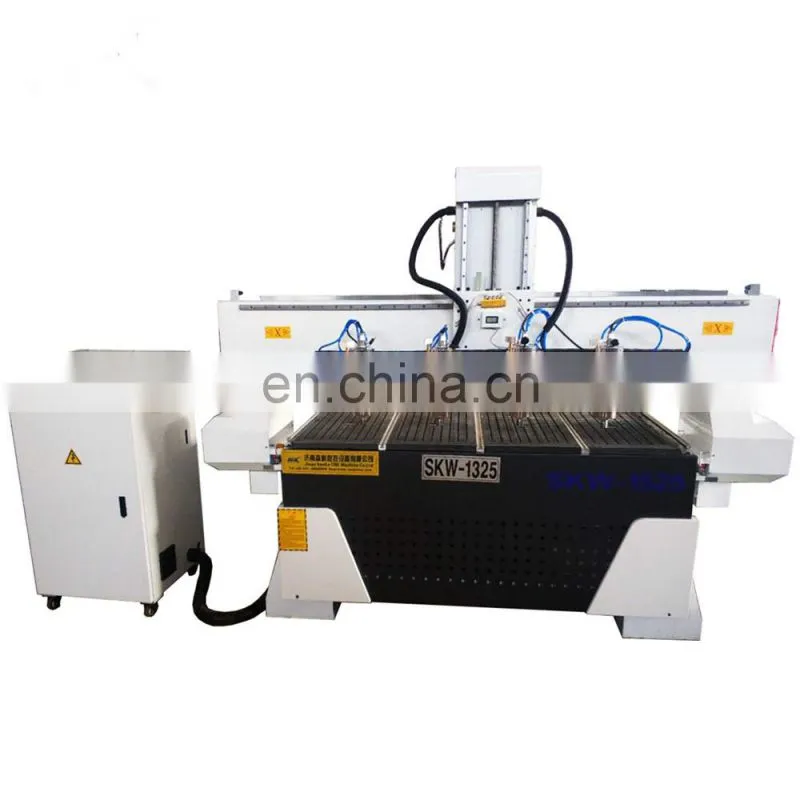

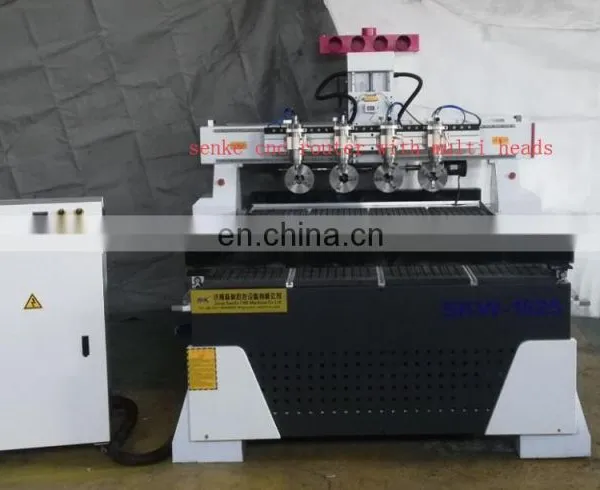

Fast speed cnc engraving machine multi heads cnc router machine
Machine Features:
1. one set machine with 4 heads, can finished 4 pieces workpieces once time, save time, improve working efficiency greatly!
2. stepper motors&drivers,improve speed,precision,at the same time,with longer life.
3. HQD brand watercold spindle,one of the best spindle brand in market,years market tested.

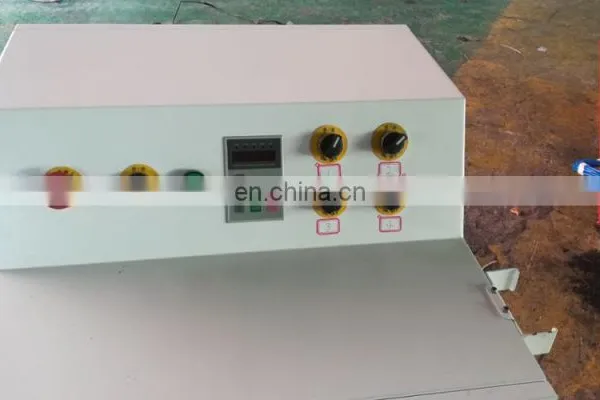

4. all in one,double open computer control box,makes the controller and computer in one cabinet,working
convenience,at the same time,supply clean environment for computer,extend computer life
5. whole machine steel made structure,when working,keeping the machine stablely,ensure the precision.
6. machine from manufacturer directly,quality,service available in first time.

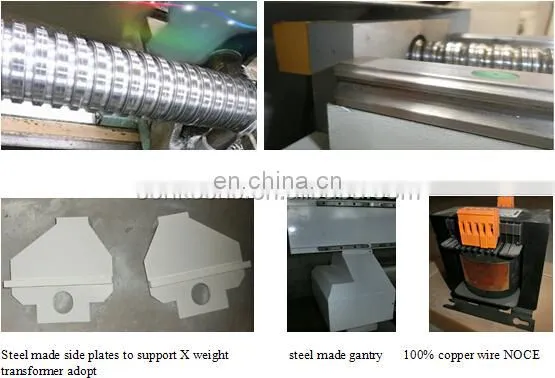

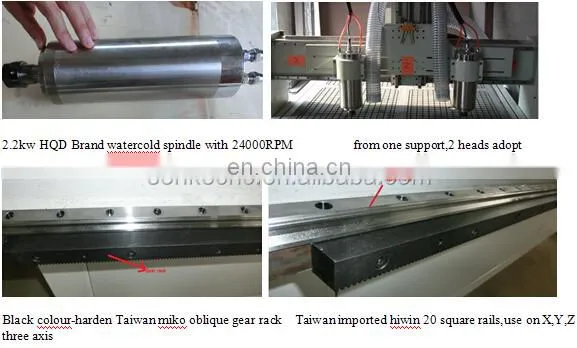

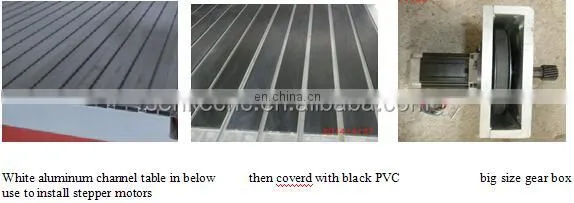

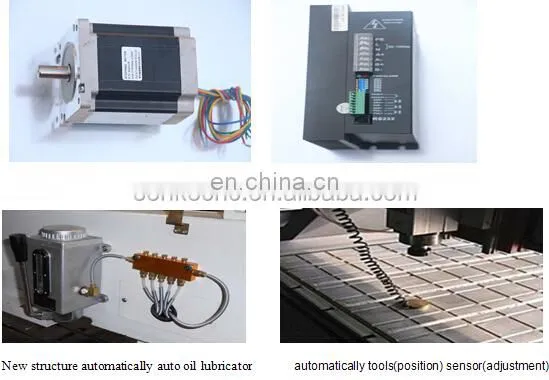

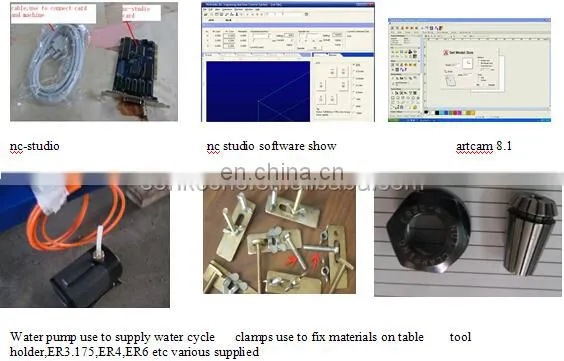

Main parts use:
Technical parameters:
|
Model |
SKW-1325 |
|
X,Y,Z axis workin g area |
1300*2500*200mm |
|
Machine size |
2700*3100*1880mm(common size,if packed in container, |
|
X,Y movement |
Taiwan miko oblique Rack and pinion |
|
Z movement |
Taiwan TBI Ballscrew transmission |
|
guide |
Taiwan HIWIN 20 square rails |
|
accuracy |
0.01mm |
|
Max idling speed |
50000mm/min |
|
Max engraving speed |
25000mm/min |
|
Spindle power |
4 sets 2.2kw HQD water cold spindle |
|
Spindle speed |
24000rpm |
|
Drive motors |
stepper motors |
|
drivers |
Leadshine stepper drivers |
|
Control system |
DSP(standard use) |
|
Working voltage |
380V/3Phase,other can be customized |
|
Command code |
G code |
|
software |
Artcam 8.1,type 3 |
|
collet |
ER20 |
|
weight |
1200kgs |
|
Standard equipment included |
1.automatic oil injection system 2.Tool sensor 3.T-SLOT table with black PVC and clamps 4.all in one computer control box 5.other basic equipment accessories |
Applications:
1. The furniture industry:
Real wood door, composite door, cabinet door, interior door, sofa legs, headboard, antique furniture and
all kinds of flower-like carving and the surface of board type furniture lock hole working procedure such
as one-time finish.
2, decoration industry:
All kinds of decorative painting, screen, decorative pattern, three-dimensional wave board, sound-absorbing panels and other decoration carving processing.
3, industrial equipment accessories semi-finished products processing:
Industrial sewing machine table, electrical counter surface processing of semi-finished products, etc.
4, musical instrument industry:
Jean head processing, the surface of the guitar semi-finished products processing, and various instruments
decorative pattern engraving and 3 d surface.

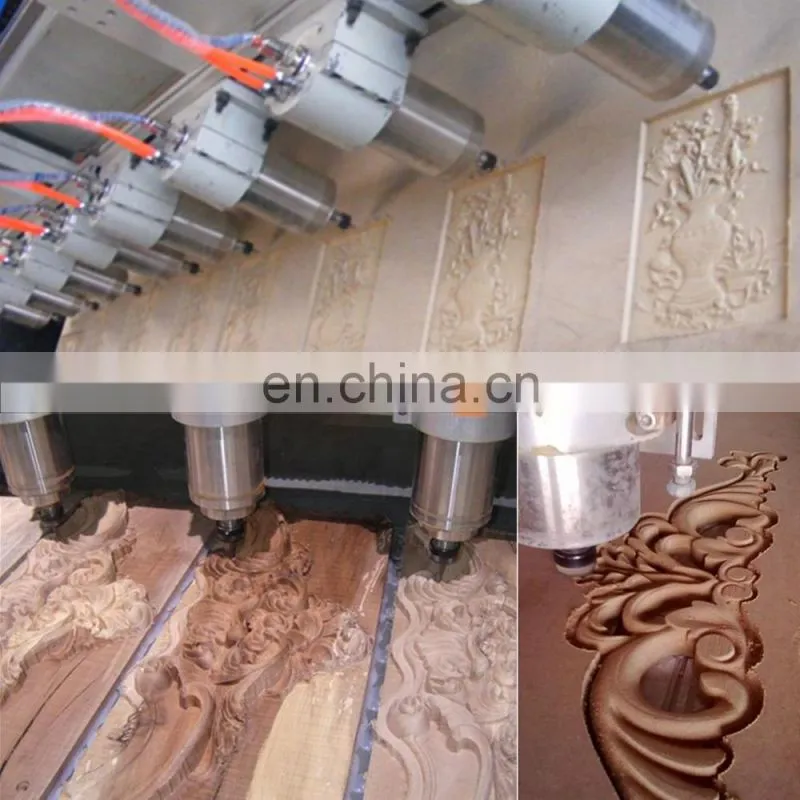

Some samples for view:
These are our customers feedback to our machine and service. they are so really that is possible you can contact them to ask any quesiton about our machines and service:
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.

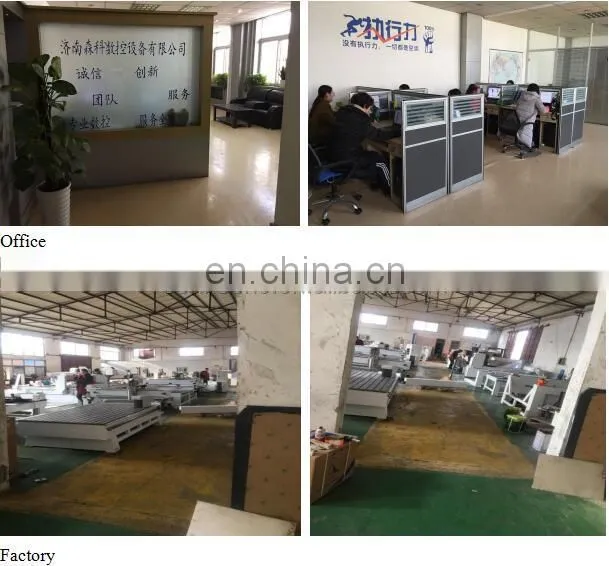

Our factory and work team:
