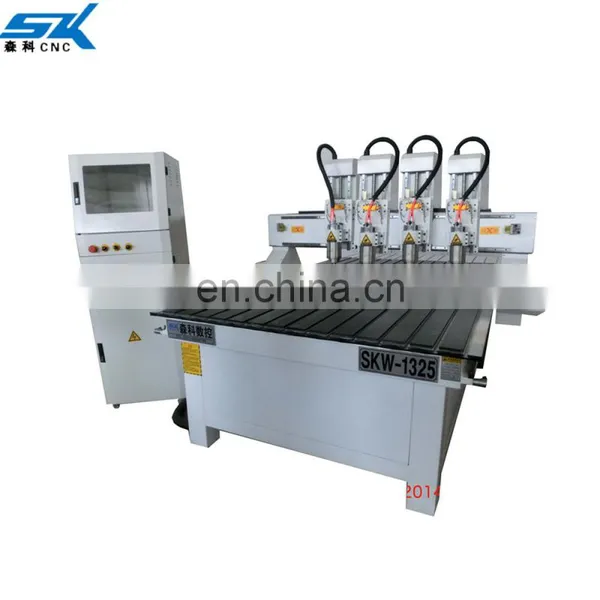

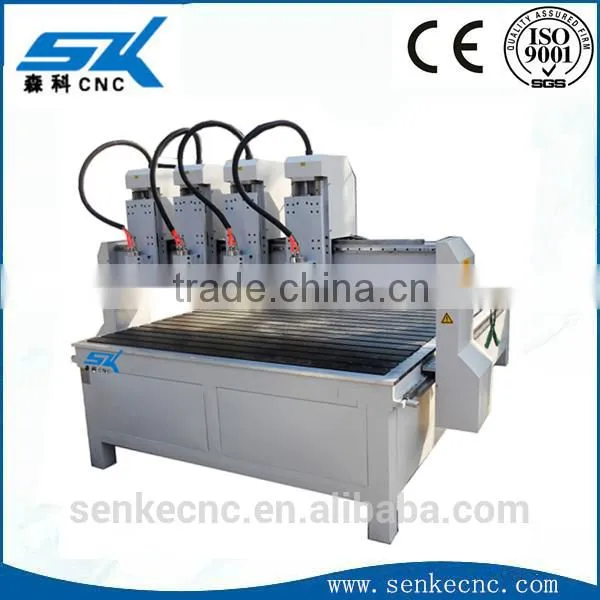

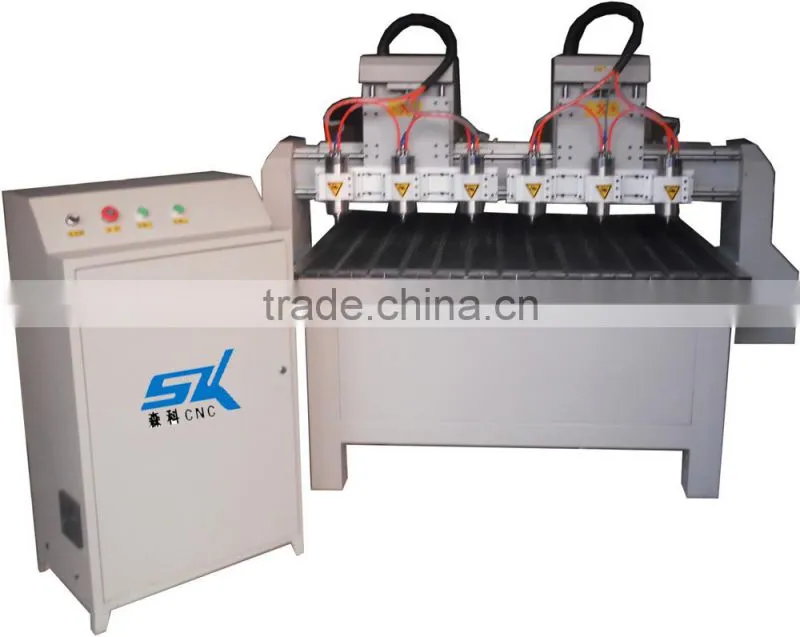

2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325

2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 thumbnail-1
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 thumbnail-2
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 thumbnail-3
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 thumbnail-4
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 thumbnail-5
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 photo-1
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 photo-2
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 photo-3
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 photo-4
2 Heads 4 Head and 8 Head Cnc Router Carving Wood PVC Acrylic MDF Sofa Table Furniture Legs SKW-1325 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Jinan Senke CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

2 heads 4 head and 8 head cnc router carving Wood PVC Acrylic MDF sofa table furniture legs SKW-13252 heads 4 head and 8 head cnc router carving Wood PVC Acrylic MDF sofa table furniture legs SKW-1325

2 heads 4 head and 8 head cnc router carving Wood PVC Acrylic MDF sofa table furniture legs SKW-1325

2 heads 4 head and 8 head cnc router carving Wood PVC Acrylic MDF sofa table furniture legs SKW-13252 heads 4 head and 8 head cnc router carving Wood PVC Acrylic MDF sofa table furniture legs SKW-1325





Features

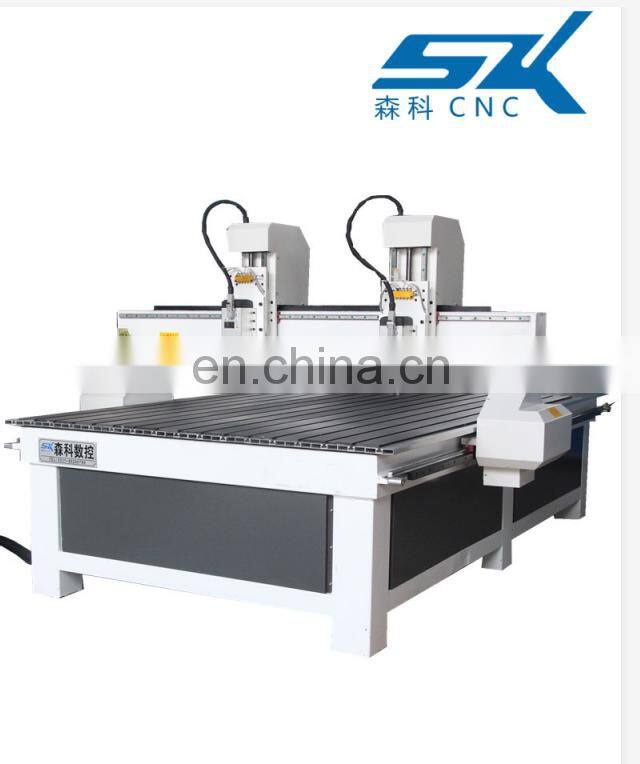

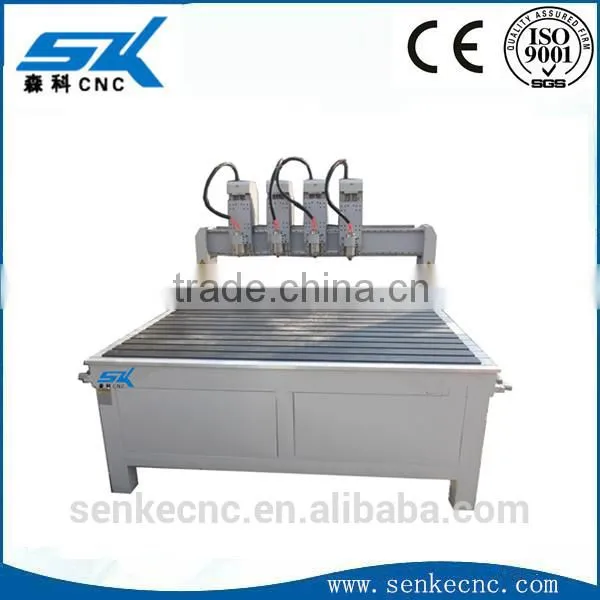

Features of multi head cnc router

1. Linear rails on X, Y (Y axis is controlled by two motors)and Z (Taiwan TBI ball screw transmission)axis are used to guarantee high accuracy and stable performance, and support heavy weight. The square sliding blocks are of good dust-proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.



2. Superior Chinese aircooling spindle could keep working at low noise level,at any temperature,safeguarding stability for long-time operation.



3. Breakpoint memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.



4. Compatible with many CAD/CAM software, such as Type3, Autocad,Artcam, Castmate, Wentai, etc.







Product Description

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

Table Size

1440×3040mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z repositioning Positioning Accuracy

±0.05mm

5

Lathe Structure

Welded Structure

6

X, Y Structure

gear transmission

7

Z Structure

Taiwan TBI ball screw

Transmission

8

Max. Speed

0-32000mm/min

9

Max. Working Speed

0-20000mm/min

10

Spindle Power Motor

3.0 KW water cooling spindle

11

Spindle Speed

0-24000RPM

12

Working Mode

stepper

13

Working Voltage

220V/380V/110V

14

Command

G Code, *uoo, *mmg, *plt

17

X,Y Working Delicacy

<0.01mm

18

Software

Ucancam software, Artcam software, Option

19

Running circumstance

Temperature: 0℃~45℃
Relative humidity: 30%~75%

20

Machine Size

3700*2050*2030mm

21

Net Weight

900KG

22

Gross Weight

1100KG
